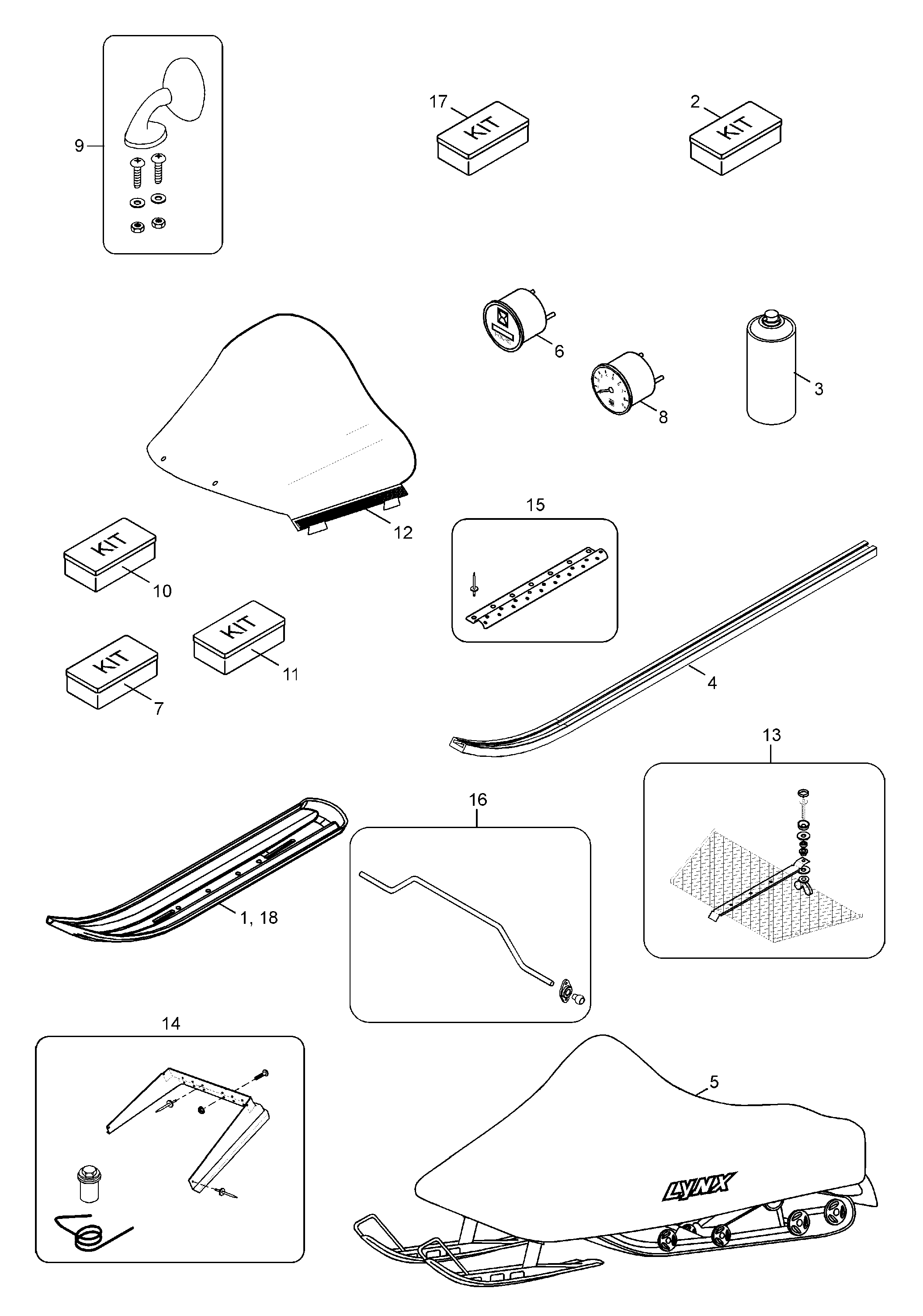

11- Accessories для BRP Lynx Enduro 500 - 1999
-
№АртикулНазвание
-
11471007 Skiliner, blackSkiliner, black
-
11471007S Skiliner, blueSkiliner, blue
-
11471007K skiliner, yellowskiliner, yellow
-
25342688 Electric starter satsElectric starter sats
-
31312 Spray-paint, blackSpray-paint, black
-
45341936 Runner shoe, yellowRunner shoe, yellow
-
45343349 Runner shoe, redRunner shoe, red
-
57820063 CoverCover
-
65343943 Hour Meter KitHour Meter Kit
-
75245043 Convertible Seat KitConvertible Seat Kit
-
85342093 Temperature Gauge KitTemperature Gauge Kit
-
9211216501 Mirror kitMirror kit
-
105243729 Plastic ski assyPlastic ski assy
-
115342689 Reverse kitReverse kit
-
125143620 Windscreen, highWindscreen, high
-
125144974 Windsc.low, blackWindsc.low, black
-
135342325 Grid kitGrid kit
-
145342324 Ice KitIce Kit
-
155345050 Side Binding redSide Binding red
-
155345051 Side Binding yellowSide Binding yellow
-
155345052 Side Binding blackSide Binding black
-
165342815 Sway bar kit d14Sway bar kit d14
-
175145073 Add. bottom protec. redAdd. bottom protec. red
-
175145074 Add. bottom protec. yellowAdd. bottom protec. yellow
-
175145075 Add. bottom protec. blueAdd. bottom protec. blue
-
175145076 Add. bottom protec. blackAdd. bottom protec. black
Все узлы модели:
- 01- Air Silencer
- 01- Crankshaft Assy
- 01- Cylinder
- 01- Engine Mount Plate
- 01- Muffler
- 01- Oil Pump
- 01- Oil Tank
- 01- Radiator, Hoses
- 02- Carburetor
- 02- Fuel Tank
- 03- Fly Wheel
- 04- Rewind Starter
- 05- Chaincase
- 05- Clutch
- 05- Crankcase
- 05- Drive Axle
- 05- Driven Pulley
- 06- Brake Assy
- 07- Steering
- 08- Front Suspension
- 08- Rear Suspension
- 08- Rear Suspension
- 09- Body
- 09- Decals
- 09- Frame
- 09- Hood
- 10- Electric
- • 11- Accessories
- 11- Tools
