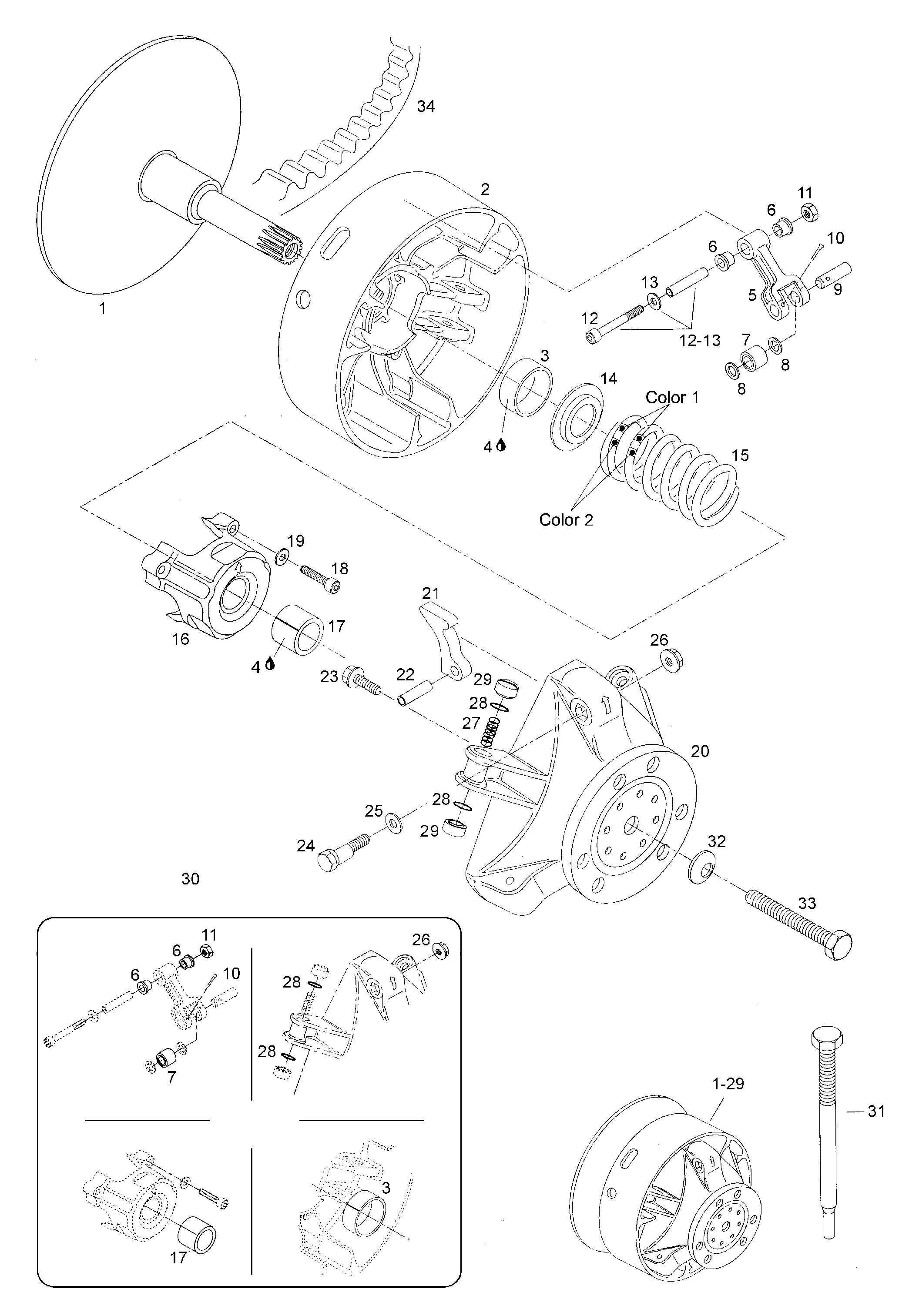

05- Clutch для BRP Lynx Enduro 500 - 1999
-
№АртикулНазвание
-
114102 Drive pulley assy. Includes items 1 thru 29Drive pulley assy. Includes items 1 thru 29
-
1417222135 Inner halfInner half
-
2417222049 Outer half assy. Includes items 2 thru 3Outer half assy. Includes items 2 thru 3
-
3414004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5417003801 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flanged bushingFlanged bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11228561045 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assy. Includes items 12 thru 13Fitting screw assy. Includes items 12 thru 13
-
12222965065 Allen screw M6x50Allen screw M6x50
-
13224061151 WasherWasher
-
14417222044 Spring seatSpring seat
-
15415015400 Spring violet\greenSpring violet\green
-
16417222157 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417004501 Bushing Spring coverBushing Spring cover
-
18222964066 Allen screw M6x40Allen screw M6x40
-
19420245370 Friction-washerFriction-washer
-
20417004700 Governor cupGovernor cup
-
21417005286 Ramp 286Ramp 286
-
22732804009 Dowel tube M8x24Dowel tube M8x24
-
23732601249 Hex. locking screwHex. locking screw
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26228467045 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417005800 Slider shoeSlider shoe
-
30417006100 Clutch repair kitClutch repair kit
-
31529022400 Puller inner halfPuller inner half
-
32732900021 WasherWasher
-
33417120000 ScrewScrew
-
3428418 Drive beltDrive belt
