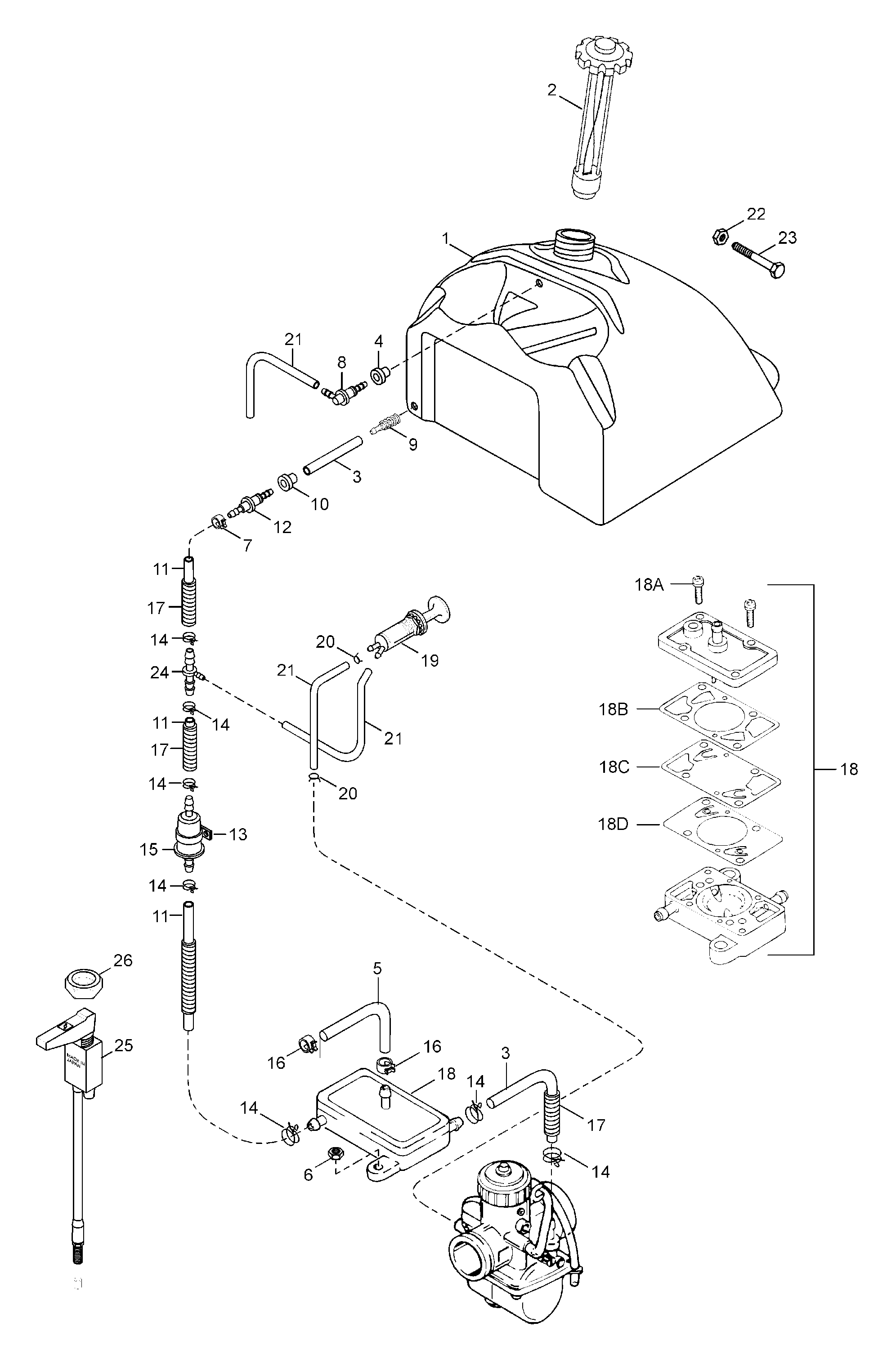

02- Fuel Tank для BRP Lynx Forest 440 - 1999
-
№АртикулНазвание
-
15141006 Fuel tank, 37 L.Fuel tank, 37 L.
-
2572161200 CapCap
-
339030 Fuel line 8/5Fuel line 8/5
-
428037 GrommetGrommet
-
539001 Fuel line 8/5Fuel line 8/5
-
633010 Nut elastic M6Nut elastic M6
-
7414554800 Spring clipSpring clip
-
8533535 AnglenippleAnglenipple
-
9414865700 Fuel filterFuel filter
-
10570045500 GrommetGrommet
-
1139004 Fuel line 8/5Fuel line 8/5
-
12414518500 Nipple for fuellineNipple for fuelline
-
1327012 ClampClamp
-
1427086 ClampClamp
-
1521065 Fuel filterFuel filter
-
16414420700 ClampClamp
-
1728012 TubeTube
-
18403800800 Fuel pumpFuel pump
-
18a190003 Gasket set. Includes items 18A thru 18DGasket set. Includes items 18A thru 18D
-
18a420841460 Screw + washerScrew + washer
-
18b420831935 GasketGasket
-
18c420861137 Pump diaphgramPump diaphgram
-
18d420861135 Pumpcase gasketPumpcase gasket
-
19414479200 PrimerPrimer
-
20543230 ClampClamp
-
2139035 Primer hose 5/3Primer hose 5/3
-
2233200 Nut M6Nut M6
-
2340085 Screw M6x80Screw M6x80
-
2421067 T-fittingT-fitting
-
25524046 Choke cableChoke cable
-
26414977200 NutNut
