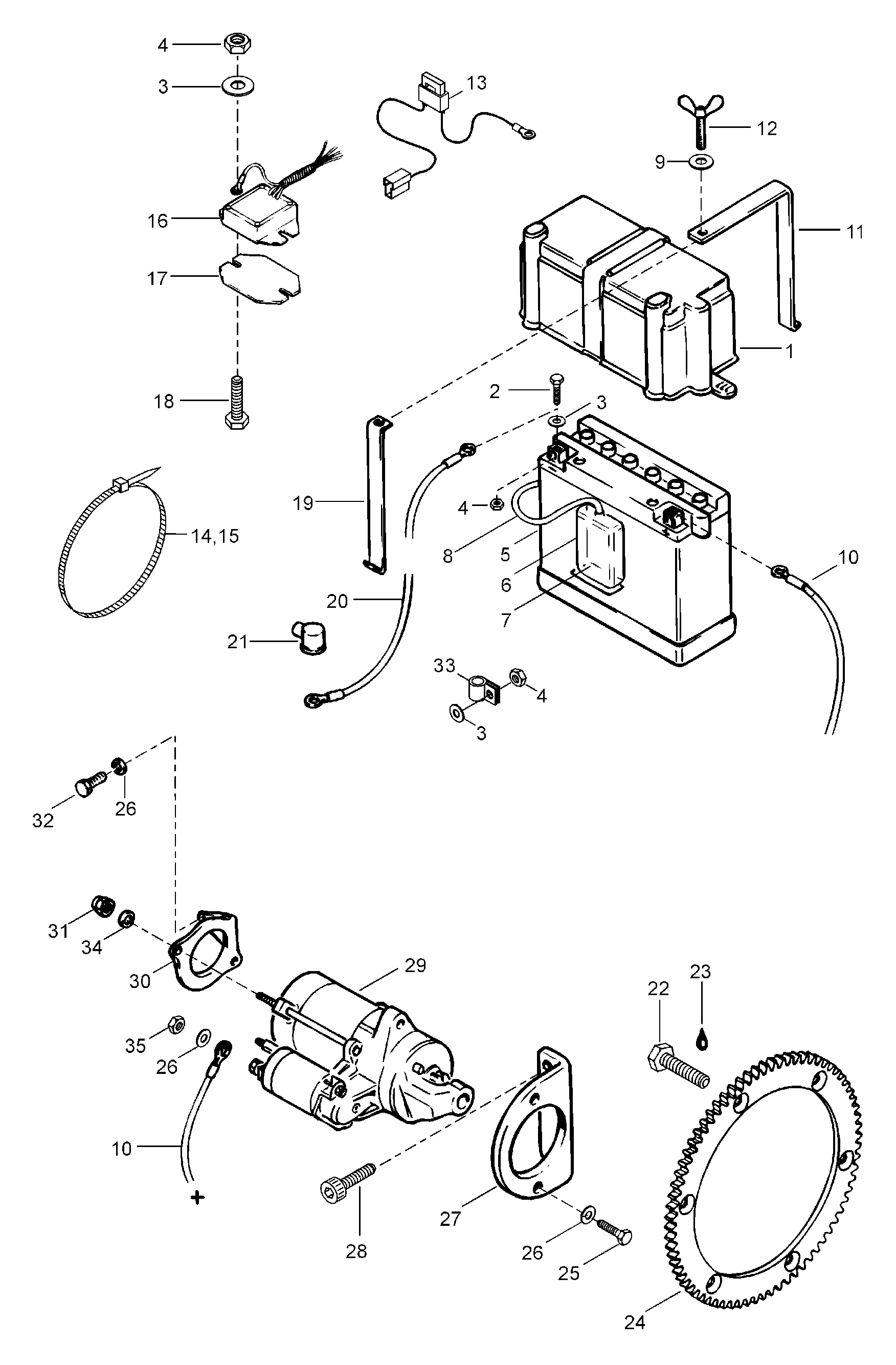

10- Battery для BRP Lynx Forest 440 - 1999
-
№АртикулНазвание
-
1570022000 Battery rubber coverBattery rubber cover
-
240115 ScrewScrew
-
320003 WasherWasher
-
433011 Lock nutLock nut
-
5410301100 BatteryBattery
-
61461402 Overflow bottleOverflow bottle
-
728076 O-ringO-ring
-
839055 Hose pipeHose pipe
-
920052 LockwasherLockwasher
-
10549886 Tubing / cable +Tubing / cable +
-
11549888 Battery fasteningBattery fastening
-
1240108 ScrewScrew
-
135440064 Loading cableLoading cable
-
1427100 Tie rapTie rap
-
1527026 Tie rapTie rap
-
165441337 Rectifier assyRectifier assy
-
17544741 Cooling plateCooling plate
-
1840030 ScrewScrew
-
19549889 Battery fasteningBattery fastening
-
20549887 Cable -Cable -
-
2142673580 Rupper coverRupper cover
-
2240327 ScrewScrew
-
23413707400 Loctite 271/vihreaLoctite 271/vihrea
-
24414807500 Ring gear Z=86Ring gear Z=86
-
2540036 ScrewScrew
-
2620014 WasherWasher
-
27420951415 FasteningFastening
-
2840305 ScrewScrew
-
29410212400 StarterStarter
-
305340781 SupportSupport
-
3133009 Lock nutLock nut
-
3240066 ScrewScrew
-
3327025 Wire clampWire clamp
-
3420002 WasherWasher
-
3533003 NutNut
