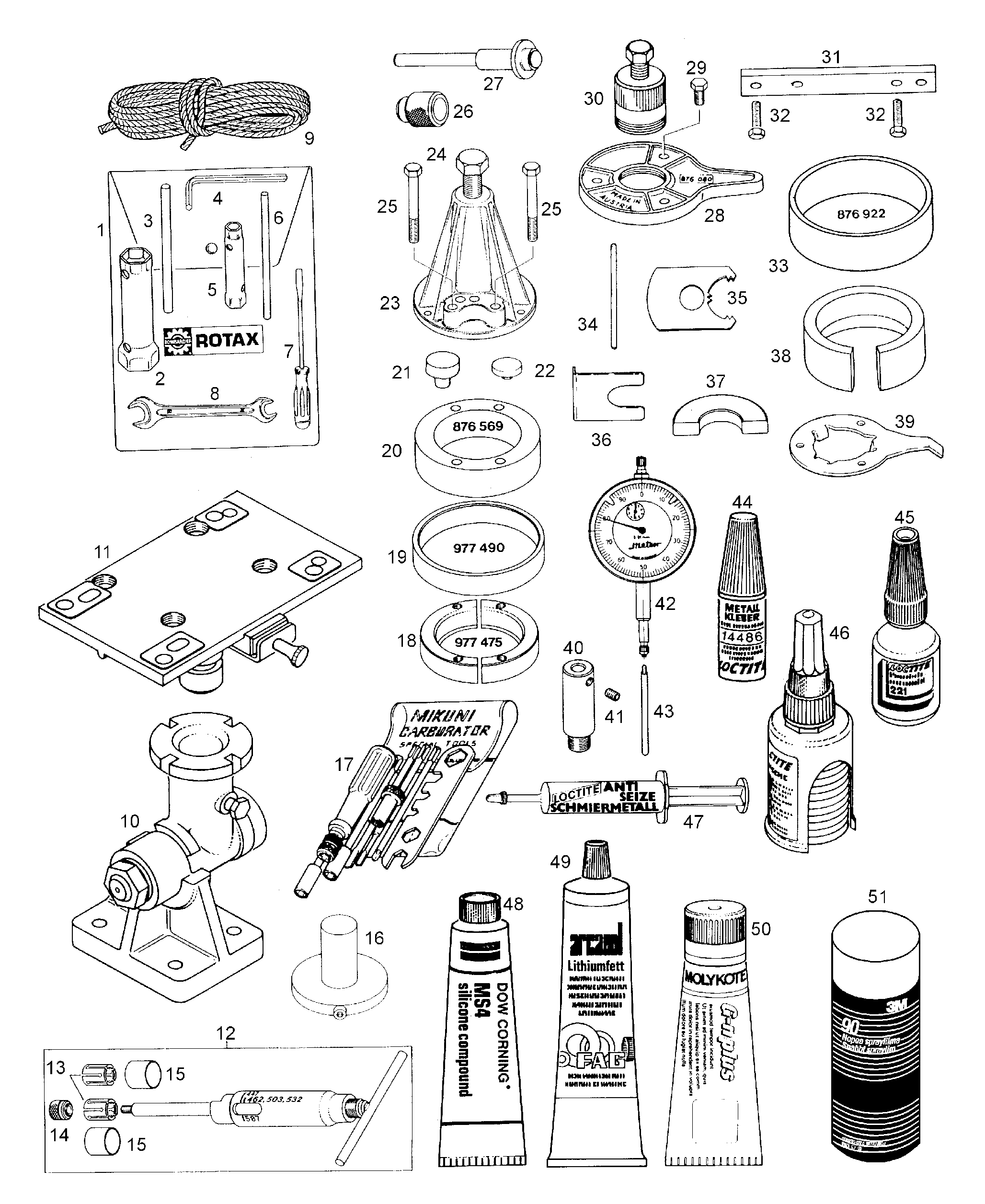

11- Tools для BRP Lynx Forest 440 - 1999
-
№АртикулНазвание
-
1420877354 Tool bagTool bag
-
1420876197 Tool set. Includes items 1 thru 11Tool set. Includes items 1 thru 11
-
2420876210 Sleeve 21/26mmSleeve 21/26mm
-
3420997420 Bolt 8x130-10Bolt 8x130-10
-
4420876360 Allen key 5 mmAllen key 5 mm
-
4420277810 Allen key 6 mmAllen key 6 mm
-
5420876227 Sleeve 10/13mmSleeve 10/13mm
-
6420997425 Bolt 6x130Bolt 6x130
-
7420876200 Screw driverScrew driver
-
8420276065 Key 10/13mmKey 10/13mm
-
9420852091 Starting ropeStarting rope
-
10420877640 Fitting stand. Includes items 10 thru 11Fitting stand. Includes items 10 thru 11
-
11420877646 Mounting plateMounting plate
-
12420877091 Piston pin extractor. 12 Includes items 15Piston pin extractor. 12 Includes items 15
-
13420877040 Expansion sleeveExpansion sleeve
-
14420877155 Extracting nut assyExtracting nut assy
-
15420877180 Locatin sleeveLocatin sleeve
-
16420877555 Insertion-jig assyInsertion-jig assy
-
17420876960 Tool kit for mikuniTool kit for mikuni
-
18420977475 Ring half, 6207Ring half, 6207
-
19420977490 RingRing
-
20420876569 ShimShim
-
21420876552 Cover, P.T.O. sideCover, P.T.O. side
-
22420876557 Cover, magn.sideCover, magn.side
-
23420876298 Puller. Includes items 23 thru 24Puller. Includes items 23 thru 24
-
24420940755 Screw M16x1,5x150Screw M16x1,5x150
-
25420841201 Screw M8x70Screw M8x70
-
26420877015 Circlip tool. Includes items 26 thru 27Circlip tool. Includes items 26 thru 27
-
26420877020 Circlip, sleeveCirclip, sleeve
-
27420877010 Pusher, circlipPusher, circlip
-
28420876080 Holder plateHolder plate
-
29420940591 Screw M8x20Screw M8x20
-
30420876065 PullerPuller
-
31420876171 Alig.tool, cyl.Alig.tool, cyl.
-
32420240275 Screw M8x25Screw M8x25
-
33420876922 Centr. ring, magn.Centr. ring, magn.
-
34420876640 Crankshaft fixation bCrankshaft fixation b
-
35420876695 HalderHalder
-
36420876620 Feeler gauge,P.T.O.Feeler gauge,P.T.O.
-
37420876822 Centr. ring, magn.Centr. ring, magn.
-
38420876090 Install.ring, pistonInstall.ring, piston
-
39420876357 Fan holderFan holder
-
40420876940 Gauge adapterGauge adapter
-
41420841771 ScrewScrew
-
42420876950 Precision dial gaugePrecision dial gauge
-
43420876945 Gauge pinGauge pin
-
44420897341 Loctite 14486Loctite 14486
-
45420899785 Loctite 221/violettLoctite 221/violett
-
46420899784 Loctite 574/orangeLoctite 574/orange
-
47420297434 Loctite anti-seizeLoctite anti-seize
-
48420897061 Silicon greaseSilicon grease
-
49420897330 Lithium-base greaseLithium-base grease
-
50420297433 Molykote G-NMolykote G-N
-
5132600 Spray-glueSpray-glue
