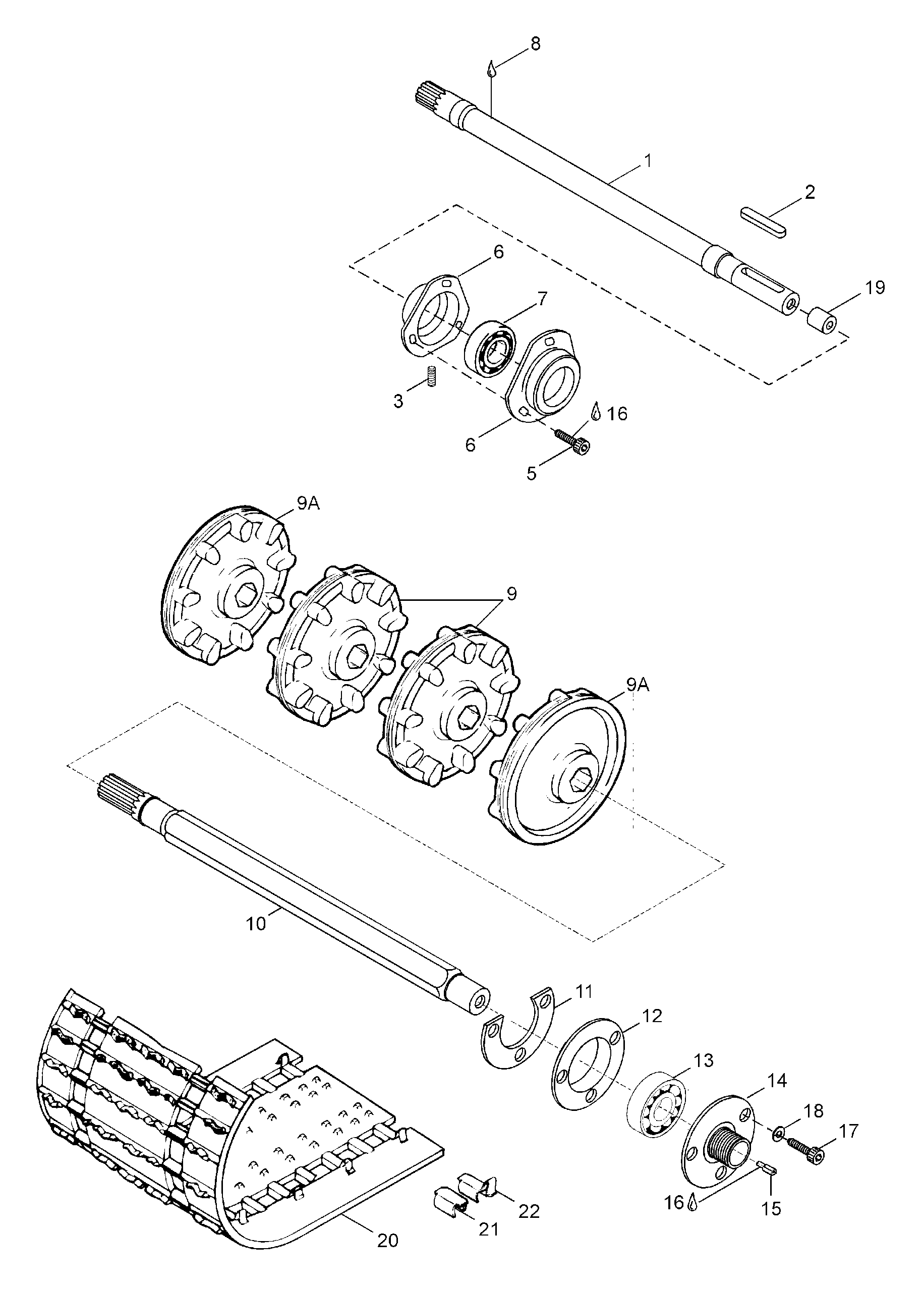

05- Drive Shaft для BRP Lynx Forest 440 - 1999
-
№АртикулНазвание
-
1529693 CountershaftCountershaft
-
2418740 KeyKey
-
310531 ScrewScrew
-
540305 Allen screw M8x20Allen screw M8x20
-
6534430 Bearing housing assyBearing housing assy
-
731B516 BearingBearing
-
8413701000 Loctite 767, 12ozLoctite 767, 12oz
-
95342411 Drive shaft assy. Includes items 9 thru 10Drive shaft assy. Includes items 9 thru 10
-
9539750 Sprocket 8-toothSprocket 8-tooth
-
9a5342920 Sprocket 8-toothSprocket 8-tooth
-
10529941 Drive shaftDrive shaft
-
115441956 Thrust ringThrust ring
-
125341953 bearing housebearing house
-
1331009 BearingBearing
-
145341957 Cocer weld.Cocer weld.
-
15542013 Speed drive insertSpeed drive insert
-
16413707400 Loctite 271, 10ccLoctite 271, 10cc
-
1740305 Allen screw M8x20Allen screw M8x20
-
1820014 Spring washerSpring washer
-
19548001 SleeveSleeve
-
2013057 Track assy. Includes items 20 thru 22Track assy. Includes items 20 thru 22
-
215318322 Slide guideSlide guide
-
225318323 Cleat guideCleat guide
