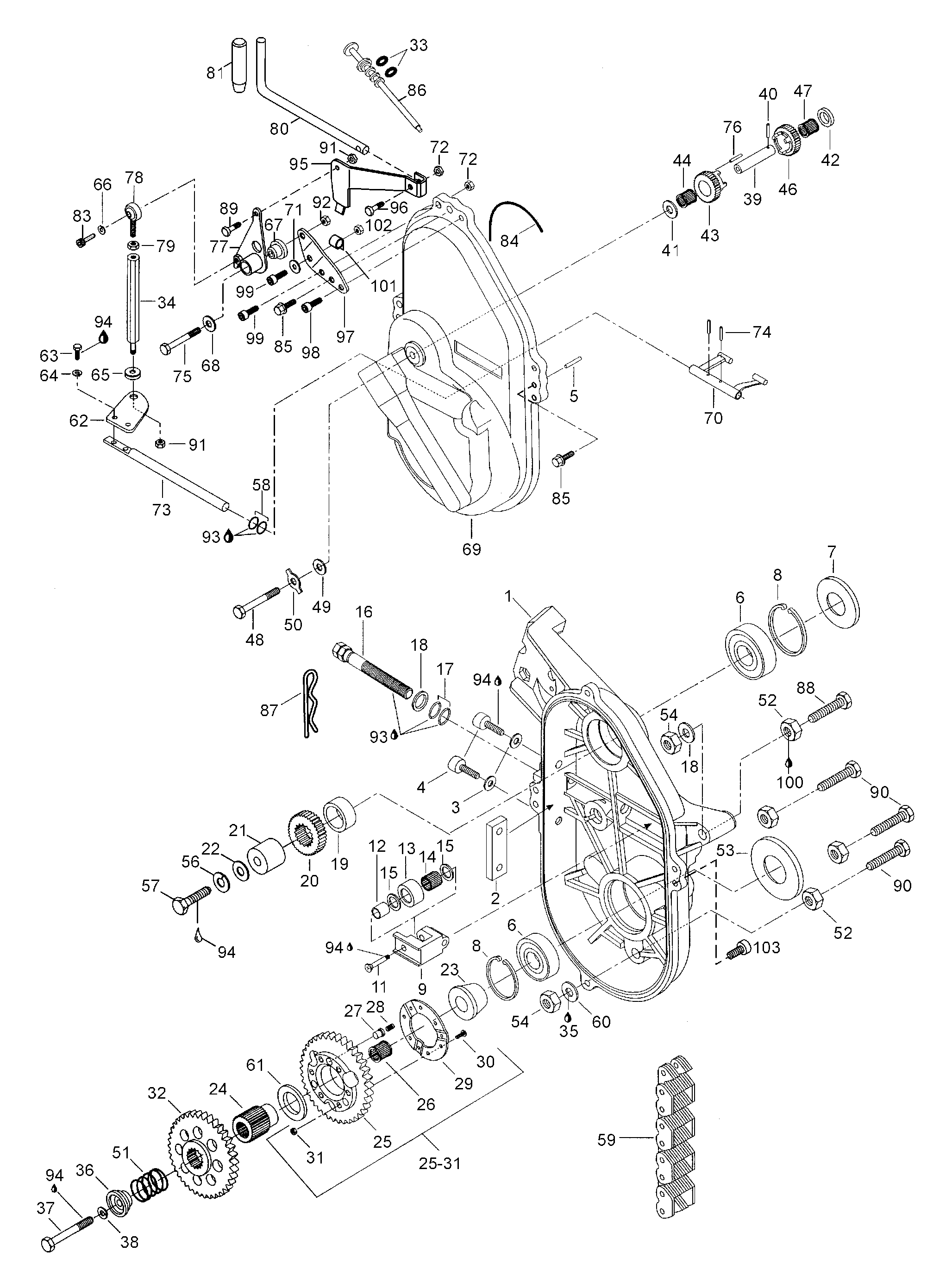

05- Gearbox для BRP Lynx Forest 440 - 1999
-
№АртикулНазвание
-
1504144600 ChaincaseChaincase
-
2504082400 Chain sliderChain slider
-
3399904900 Cu-washerCu-washer
-
440029 Screw M6x16Screw M6x16
-
5732620001 Cylinder pinCylinder pin
-
6405404400 Ball bearing 6205Ball bearing 6205
-
7414531200 Oil sealOil seal
-
8371901700 CirclipCirclip
-
9504081000 Chain tensionerChain tensioner
-
11732601144 ScrewScrew
-
12504080200 BushingBushing
-
13414531300 RollerRoller
-
1431050 Needle bearingNeedle bearing
-
15504080300 WasherWasher
-
16732601311 Adjustment screwAdjustment screw
-
17414484400 O-ringO-ring
-
1820005 WasherWasher
-
19504093400 ShimShim
-
20504074800 Sprocket, 20 toothSprocket, 20 tooth
-
215440583 SleeveSleeve
-
22546336 WasherWasher
-
23504094100 Trust bushingTrust bushing
-
24504094200 Coupling shaftCoupling shaft
-
25581095900 Sprocket assy. Includes items 25 thru 31Sprocket assy. Includes items 25 thru 31
-
25504088200 Sprocket, 44 toothSprocket, 44 tooth
-
26414772600 Needle bearingNeedle bearing
-
27504076800 Drive pinDrive pin
-
28414772700 SpringSpring
-
29504076100 Retaining ringRetaining ring
-
30222052065 Screw M5x20Screw M5x20
-
31228451046 Nut M5Nut M5
-
32504096800 Gear, 56 toothGear, 56 tooth
-
3328402 O-ringO-ring
-
34504094700 Tie rodTie rod
-
35413702700 Loctite 515Loctite 515
-
36504099100 CapCap
-
3740196 Screw M10x50Screw M10x50
-
3820015 Lock washerLock washer
-
39580590600 Reverse shaft assy. Includes items 39 thru 40Reverse shaft assy. Includes items 39 thru 40
-
39504083100 Reverse shaftReverse shaft
-
40732804003 Spring pinSpring pin
-
41504077300 Trust washerTrust washer
-
42504078700 Trust ringTrust ring
-
43581122200 Sprocket assy. Includes items 43 thru 44Sprocket assy. Includes items 43 thru 44
-
44414805000 Needle bearingNeedle bearing
-
46581098200 Sprocket assy. Includes items 46 thru 47Sprocket assy. Includes items 46 thru 47
-
47414773100 Needle bearingNeedle bearing
-
4840264 Screw M8x90Screw M8x90
-
49504082900 WasherWasher
-
50504087700 Lock tabLock tab
-
51504099200 SpringSpring
-
52504083800 SpacerSpacer
-
53581101700 Oil sealOil seal
-
5433012 Nut elastic M10Nut elastic M10
-
5620014 Lock washerLock washer
-
5740036 Screw M8x20Screw M8x20
-
58414773200 O-ringO-ring
-
59412105500 Drive chain, 72 linksDrive chain, 72 links
-
6020073 Gasket-ringGasket-ring
-
61504094300 WasherWasher
-
62504094602 PlatePlate
-
6340026 Screw M5x12Screw M5x12
-
6420013 Washer lockWasher lock
-
65570045700 Rubber washerRubber washer
-
6620052 WasherWasher
-
67414927600 Flange bushingFlange bushing
-
6820010 WasherWasher
-
69504098500 Cover chaincaseCover chaincase
-
70504075800 ForkFork
-
7120003 Flat washerFlat washer
-
7233010 Nut elastic M6Nut elastic M6
-
73504142900 ShaftShaft
-
74414772500 Spring pinSpring pin
-
7540007 Screw M8x40Screw M8x40
-
76570048600 Alignment rodAlignment rod
-
77504094900 PlatePlate
-
78414773400 Ball jointBall joint
-
7933002 Nut M6Nut M6
-
805340457 Reverse Shift BarReverse Shift Bar
-
8128247 KnobKnob
-
8340052 Allenscrew M6x20Allenscrew M6x20
-
84414362300 SealSeal
-
85732600004 Screw M6x30Screw M6x30
-
86572092700 Filler capFiller cap
-
87414575600 Hair pinHair pin
-
8840043 Screw M10x70Screw M10x70
-
8940026 Screw M5x12Screw M5x12
-
9040201 Screw M10x40Screw M10x40
-
9133009 Nut elastic M5Nut elastic M5
-
9233011 Nut elastic M8Nut elastic M8
-
93413711500 Lithium greaseLithium grease
-
94413707400 Loctite 271Loctite 271
-
95539951 Lever of ShifterLever of Shifter
-
9640031 Screw M6x25Screw M6x25
-
97504095000 Support-pivotSupport-pivot
-
9840364 Self tapping allen s.Self tapping allen s.
-
9940030 Screw M6x20Screw M6x20
-
100413703000 Loctite 242Loctite 242
-
10127025 ClampClamp
-
10233200 Nut M6Nut M6
-
10340340 Self tapping allen s.Self tapping allen s.
