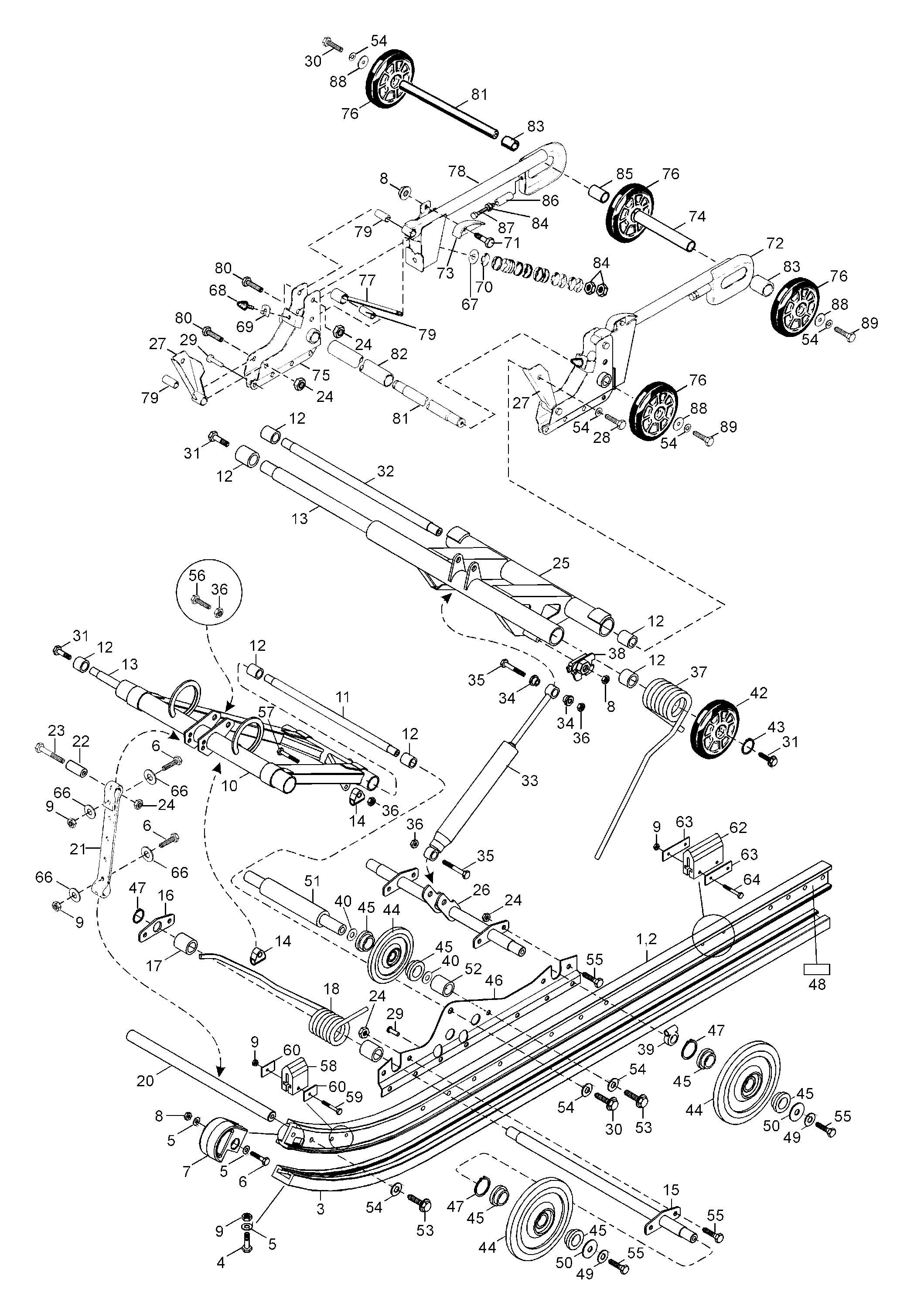

08- Rear Suspension для BRP Lynx Forest 440 - 1999
-
№АртикулНазвание
-
5140395 Slide railSlide rail
-
1538812 Slide rail assy, L.H.Slide rail assy, L.H.
-
2538813 Slide rail assy, R.H.Slide rail assy, R.H.
-
3549582 Slide surfaceSlide surface
-
440030 Screw M6x20Screw M6x20
-
520003 WasherWasher
-
640031 Screw M6x25Screw M6x25
-
7534578 Slide pieceSlide piece
-
833200 Nut M6Nut M6
-
933010 Lock nut M6Lock nut M6
-
10538796 Rocker arm, frontRocker arm, front
-
11548944 Boggie shaftBoggie shaft
-
1231046 Slide BearingSlide Bearing
-
13538945 ShaftShaft
-
14548799 Crank blockCrank block
-
15538802 Support wheel shaftSupport wheel shaft
-
16548469 Support plateSupport plate
-
17548841 Support sleeveSupport sleeve
-
185241177 Spring, L.H. d=9,5Spring, L.H. d=9,5
-
185241178 Spring, R.H. d=9,5Spring, R.H. d=9,5
-
20546599 Belt shaftBelt shaft
-
21536063 Stop beltStop belt
-
22546065 SleeveSleeve
-
2340122 Screw M8x50Screw M8x50
-
2433011 Lock nut M8Lock nut M8
-
25538801 Rocking frame, rearRocking frame, rear
-
26538803 ShaftShaft
-
275440349 Lever, L.H.Lever, L.H.
-
275440350 Lever, R.H.Lever, R.H.
-
2840014 Screw M10x40Screw M10x40
-
29544212 RivetRivet
-
3040014 Screw M10x40Screw M10x40
-
3140314 Screw M10x30Screw M10x30
-
32548946 ShaftShaft
-
3323016 Shock absorberShock absorber
-
34544417 SleeveSleeve
-
3540017 Screw M10x50Screw M10x50
-
3633012 Nut elastic M10Nut elastic M10
-
37538805 Spring, L.H. d=10,5Spring, L.H. d=10,5
-
37538806 Spring, R.H. d=10,5Spring, R.H. d=10,5
-
38572030800 Adjustment Cam, L.H.Adjustment Cam, L.H.
-
38572030900 Adjustment Cam, R.H.Adjustment Cam, R.H.
-
39548804 Spring crank blockSpring crank block
-
4031089 ShimShim
-
4246030 Support wheel, redSupport wheel, red
-
4331001 CirclipCirclip
-
4446035 Support wheel, redSupport wheel, red
-
45415112700 InsertInsert
-
46538794 Side plate L.H.Side plate L.H.
-
46538793 Side plate R.H.Side plate R.H.
-
4731007 CirclipCirclip
-
48544590 EASY-RIDE-decalEASY-RIDE-decal
-
4920072 Lock washerLock washer
-
5020010 WasherWasher
-
51538943 Support wheel shaftSupport wheel shaft
-
52548949 SleeveSleeve
-
5340241 Allen screw M10x30Allen screw M10x30
-
5420068 Lock washerLock washer
-
5540035 Screw M8x16Screw M8x16
-
5640018 Screw M10x55Screw M10x55
-
5740042 Screw M10x35Screw M10x35
-
585442328 Rubber damperRubber damper
-
5940032 Screw M6x30Screw M6x30
-
60548470 WasherWasher
-
62570023100 Rubber damperRubber damper
-
63548387 WasherWasher
-
6440002 Screw M6x40Screw M6x40
-
6620009 WasherWasher
-
6720011 WasherWasher
-
68535455 Rubber dampperRubber dampper
-
695440645 Shim plateShim plate
-
7025004 Cop washerCop washer
-
7140030 Screw M6x20Screw M6x20
-
725243098 Extension L.H.Extension L.H.
-
73548262 Track guardTrack guard
-
745444096 Sleeve, L=180.5Sleeve, L=180.5
-
75539672 Extension plate L.H.Extension plate L.H.
-
75539673 Extension plate R.H.Extension plate R.H.
-
7646030 WheelWheel
-
775440377 Spring controllerSpring controller
-
785243099 Extension R.H.Extension R.H.
-
79545758 SleeveSleeve
-
8040008 Screw M8x45Screw M8x45
-
81546216 Axle, rearAxle, rear
-
82542105 Sleeve,L=176Sleeve,L=176
-
835444098 Sleeve, L=29Sleeve, L=29
-
8433004 Nut M10Nut M10
-
855444097 Sleeve, L=57.5Sleeve, L=57.5
-
86546668 SleeveSleeve
-
8740239 Screw M10x100Screw M10x100
-
8820023 WasherWasher
-
8940041 Screw M10x30Screw M10x30
