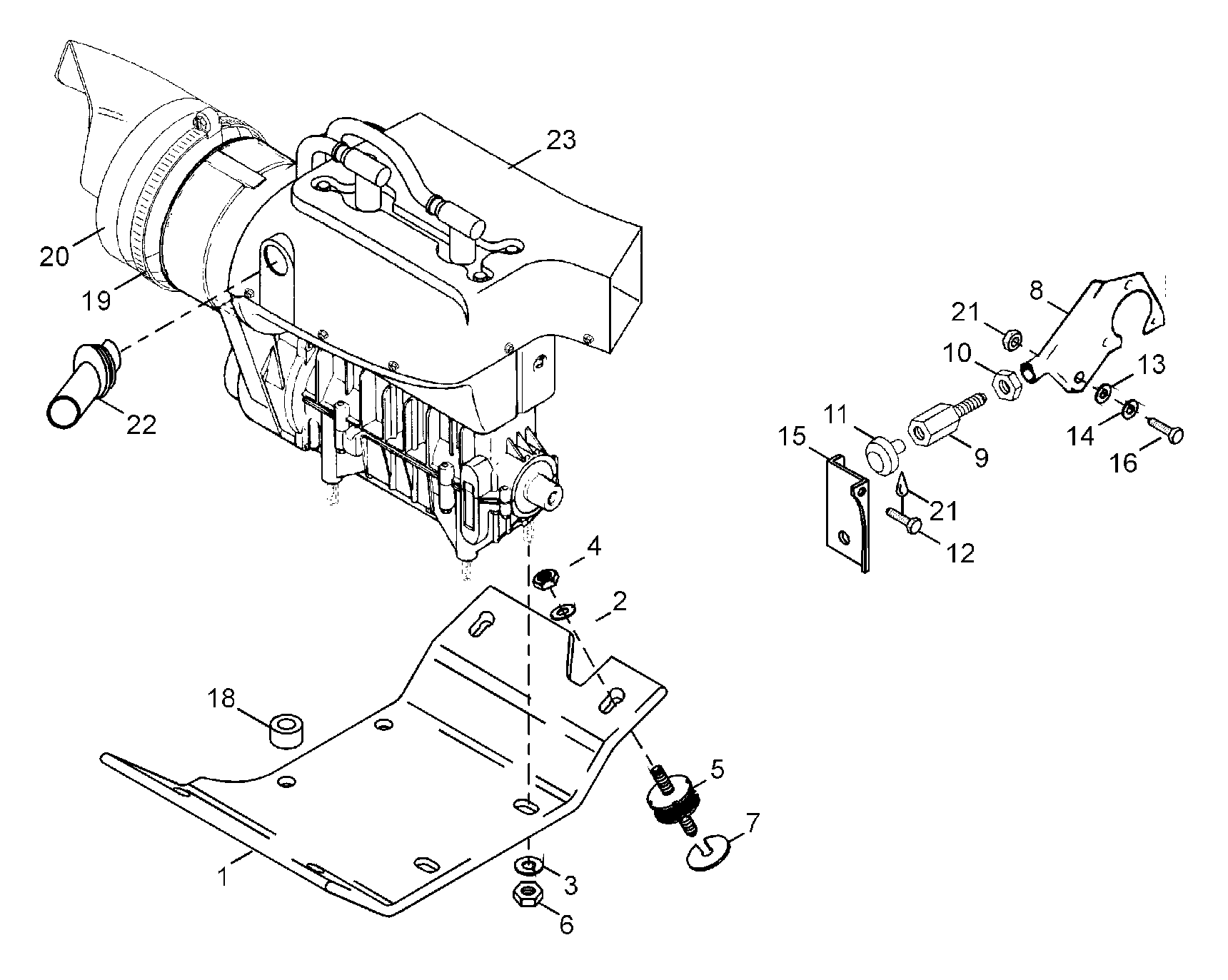

01- Engine Mount Plate для BRP Lynx Ranger King 500 - 1999
-
№АртикулНазвание
-
15344041 Engine supportEngine support
-
2512056700 WasherWasher
-
320047 Spring washerSpring washer
-
433012 Nut elastic M10Nut elastic M10
-
5570127700 Mount rubberMount rubber
-
633004 Nut M10Nut M10
-
7546221 WasherWasher
-
85341161 Engine support weld.Engine support weld.
-
9517244200 ScrewScrew
-
1033063 Nut M12Nut M12
-
11570025100 Rod retainerRod retainer
-
1240035 Screw M8x16Screw M8x16
-
1320009 WasherWasher
-
1420052 Lock washerLock washer
-
155344446 Stopper plateStopper plate
-
1640029 Screw M6x16Screw M6x16
-
21413703000 Loctite 242, 10ccLoctite 242, 10cc
-
2311000041 Engine 503Engine 503
