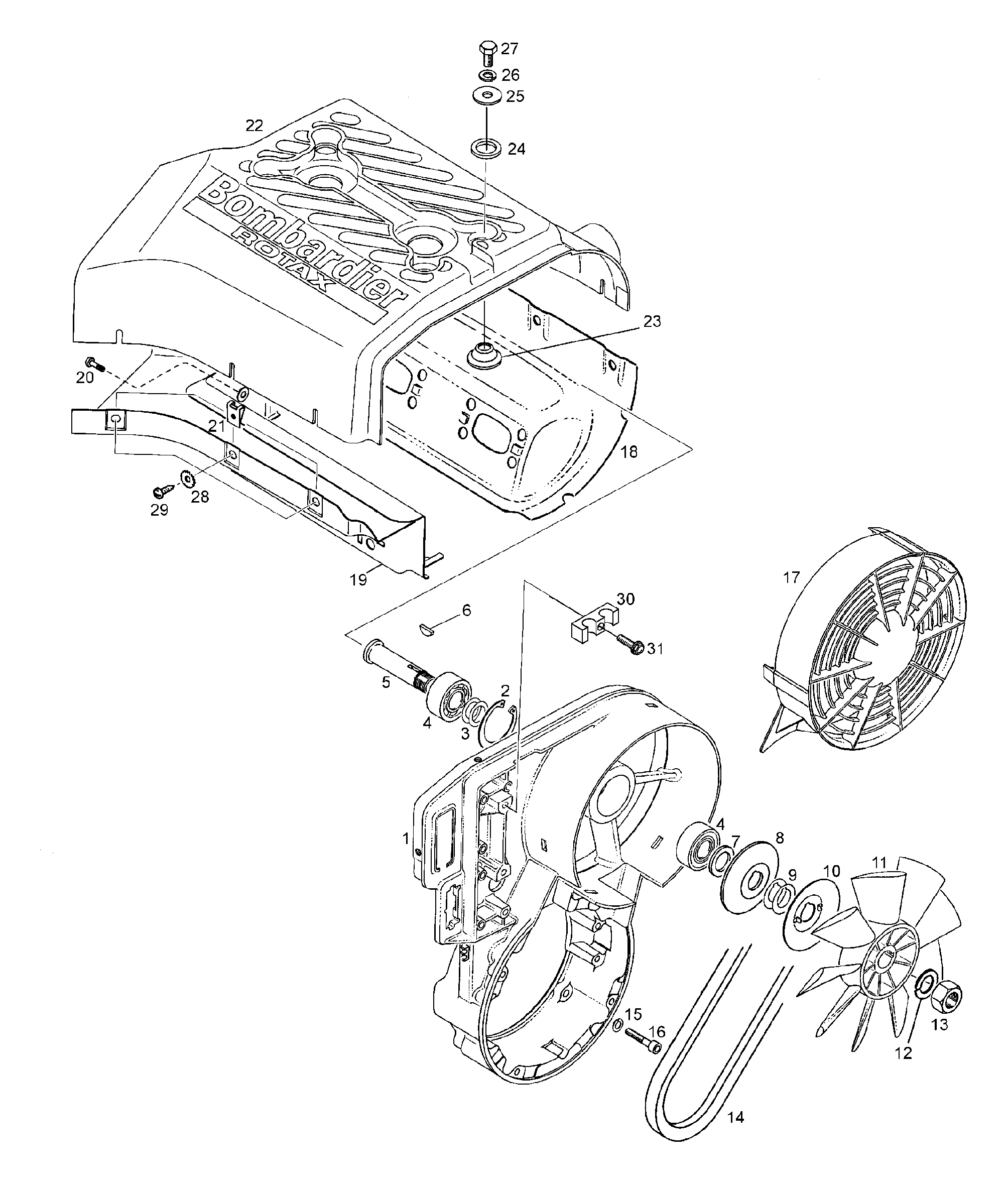

01- Fan Housing для BRP Lynx Ranger King 500 - 1999
-
№АртикулНазвание
-
1420912204 Fan housingFan housing
-
2420945880 Locking ringLocking ring
-
3420244585 ShimShim
-
4420832160 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
10420980523 Support washerSupport washer
-
11420866292 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 Nut M16Nut M16
-
14414630800 V-beltV-belt
-
15420945751 Spring washerSpring washer
-
16420840880 Allen screw M6x30Allen screw M6x30
-
17420975695 Fan coverFan cover
-
18420810543 Lower case (exhaust)Lower case (exhaust)
-
19420810546 Lower case (carb.)Lower case (carb.)
-
20420240385 Screw M6x12Screw M6x12
-
21420842390 Nut springNut spring
-
22420811295 Upper caseUpper case
-
23420827817 Cup washerCup washer
-
24420960865 Rubber washerRubber washer
-
25420227935 WasherWasher
-
26420945752 Lock washerLock washer
-
27420940581 Screw M8x16Screw M8x16
-
28420926180 WasherWasher
-
29420841495 Self tapping screwSelf tapping screw
-
30420860940 Cable clampCable clamp
-
31420941250 Screw M6x20Screw M6x20
