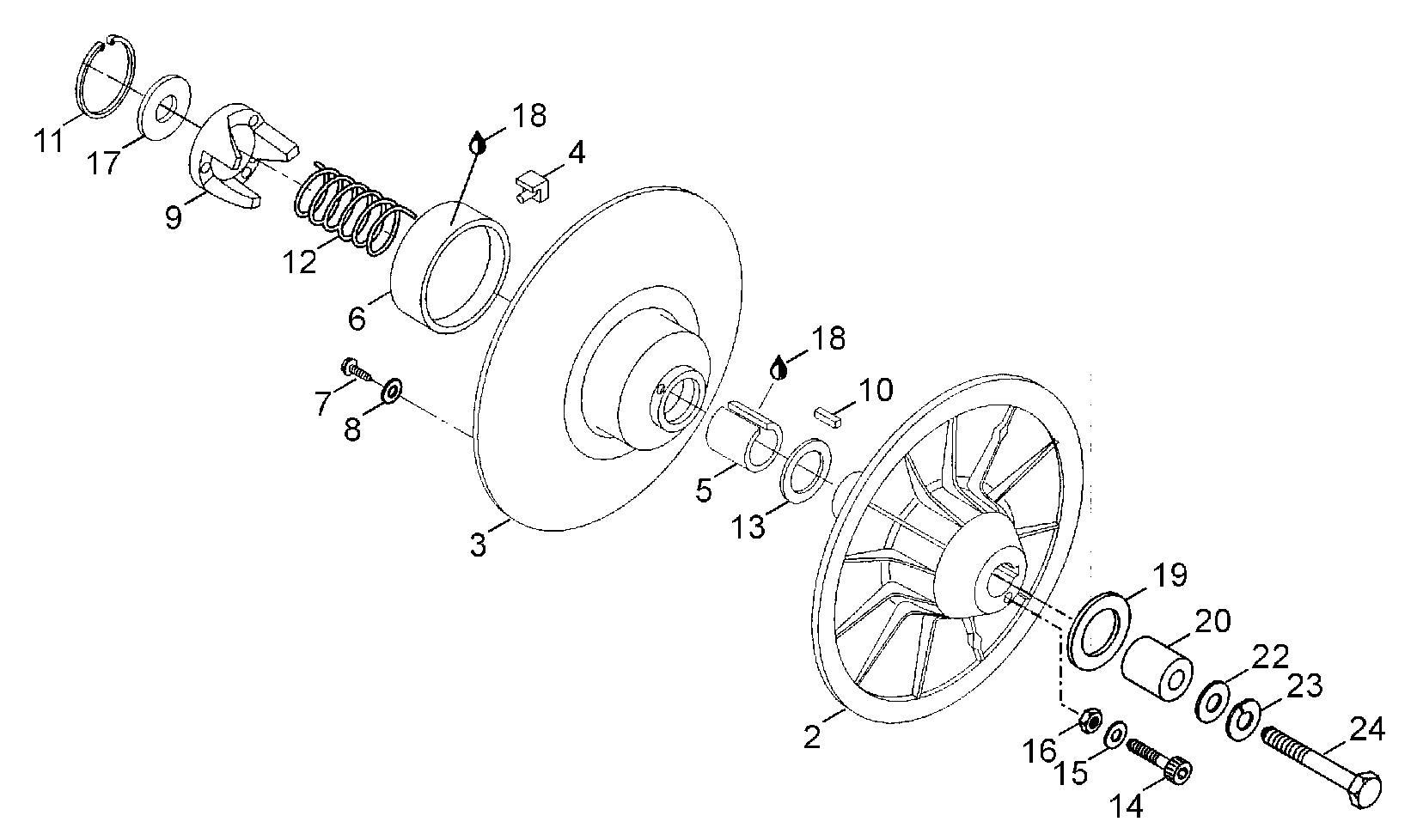

05- Driven Pulley для BRP Lynx Ranger King 500 - 1999
-
№АртикулНазвание
-
114118 Driven pulley. Includes items 1 thru 18Driven pulley. Includes items 1 thru 18
-
2504141600 Fixed pulleyFixed pulley
-
3504143200 Sliding pulley assy. Includes items 3 thru 6Sliding pulley assy. Includes items 3 thru 6
-
4414918000 Cam slider shoeCam slider shoe
-
5415011200 Bushing-GarlockBushing-Garlock
-
6860423000 Bushing-Garlock assy. Includes items 6 thru 8Bushing-Garlock assy. Includes items 6 thru 8
-
6414873100 BushingBushing
-
7732600022 Screw M5x12Screw M5x12
-
8399910000 Flat washerFlat washer
-
9417126333 Cam 44 degr.Cam 44 degr.
-
10414820800 KeyKey
-
11371903100 Snap ringSnap ring
-
12414505800 Release spring, orangRelease spring, orang
-
13504141900 Thrust washerThrust washer
-
14223563065 Allen screw M6x30Allen screw M6x30
-
15228061045 Nut M6Nut M6
-
16420245370 WasherWasher
-
17504141800 WasherWasher
-
18413703100 Loctite 609Loctite 609
-
193125351 ShimShim
-
20546335 SleeveSleeve
-
22546336 WasherWasher
-
2320014 Spring washerSpring washer
-
2440088 Screw M8x70Screw M8x70
