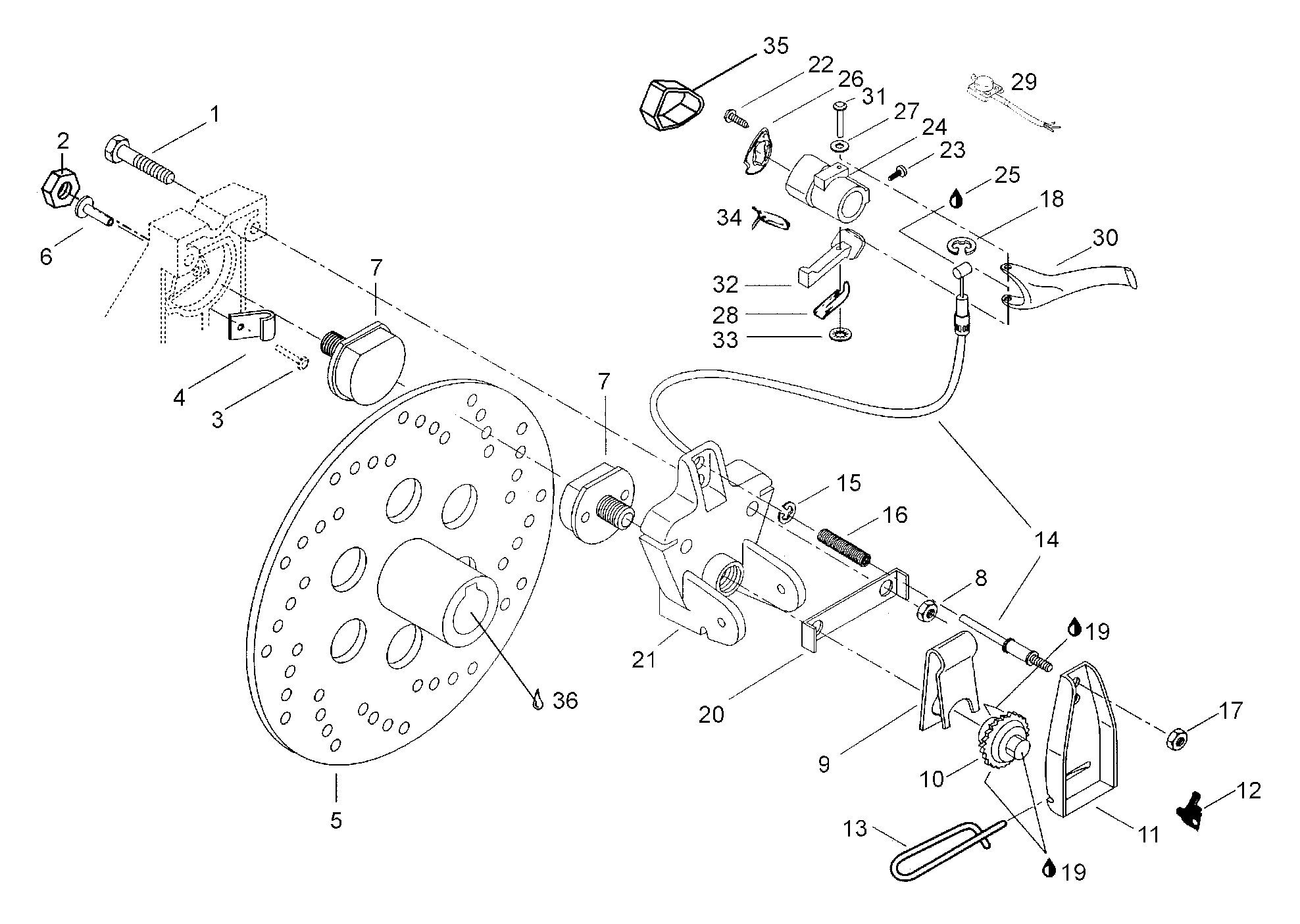

06- Brake Assy для BRP Lynx Ranger King 500 - 1999
-
№АртикулНазвание
-
140010 Screw M8x55Screw M8x55
-
233055 Nut elastic M10Nut elastic M10
-
336489 RivetRivet
-
4507022600 Indicator wearIndicator wear
-
5507031300 Brake discBrake disc
-
6390409600 RivetRivet
-
7860700700 Brake padBrake pad
-
833011 Nut elastic M8Nut elastic M8
-
9507020200 Release springRelease spring
-
10507019600 Ratchel wheelRatchel wheel
-
11507021500 Brake leverBrake lever
-
12507009400 Ratchel wheel springRatchel wheel spring
-
13507027500 PinPin
-
14535657 Brake cableBrake cable
-
1531038 CirclipCirclip
-
16414460600 SpringSpring
-
1733010 Nut elastic M6Nut elastic M6
-
1831038 circlipcirclip
-
19413701000 Loctite 767Loctite 767
-
20507020400 Locking tabLocking tab
-
21507027600 Brake lining holderBrake lining holder
-
22414473200 ScrewScrew
-
23414440800 Screw M8x10Screw M8x10
-
2424034 Brake handle housingBrake handle housing
-
25413701700 Dielectric greaseDielectric grease
-
26572099400 CoverCover
-
27414729400 Spring washerSpring washer
-
28517229300 SpringSpring
-
29415085800 Dimmer switchDimmer switch
-
30572025700 Handle brakeHandle brake
-
31517229400 PinPin
-
32572025200 Brake leverBrake lever
-
33389804300 Push nutPush nut
-
34415085700 Brake light switchBrake light switch
-
35572073800 Brake coverBrake cover
-
36413701000 Loctite 767Loctite 767
