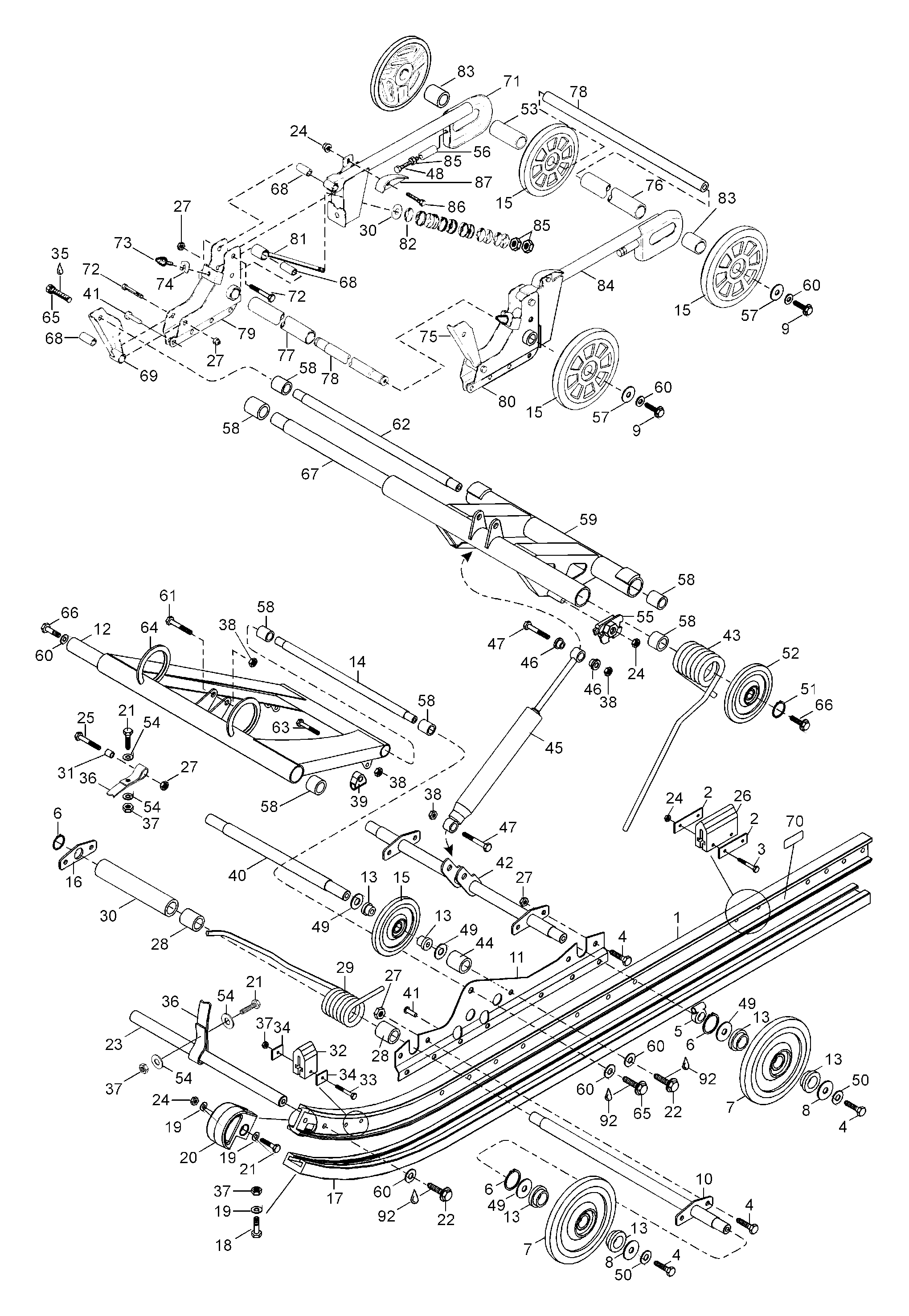

08- Rear Suspension для BRP Lynx Ranger King 500 - 1999
-
№АртикулНазвание
-
5142866 Slide frame assy R.H. (Ref. 1, 11, 41, 79)Slide frame assy R.H. (Ref. 1, 11, 41, 79)
-
5142865 Slide frame assy L.H. (Ref. 1, 11, 41, 80)Slide frame assy L.H. (Ref. 1, 11, 41, 80)
-
15142864 Slide railSlide rail
-
2548387 PlatePlate
-
340002 Screw M6x40Screw M6x40
-
440035 Screw M8x16Screw M8x16
-
5548804 Spring supportSpring support
-
631007 CirclipCirclip
-
746035 Support wheel 135/bkSupport wheel 135/bk
-
820010 WasherWasher
-
940041 Screw M10x30Screw M10x30
-
10538802 Shaft weldedShaft welded
-
11538794 Support R.H.Support R.H.
-
11538793 Support L.H.Support L.H.
-
12538945 Upper axleUpper axle
-
13415112700 InsertInsert
-
14548944 Lower axleLower axle
-
1546031 Support wheel 165/bluSupport wheel 165/blu
-
16548469 Support plateSupport plate
-
17549582 Ski-linerSki-liner
-
1840030 Screw M6x20Screw M6x20
-
1920003 WasherWasher
-
20534578 Slide pieceSlide piece
-
2140031 Screw M6x25Screw M6x25
-
2240241 Screw M10x30Screw M10x30
-
23546599 Belt axleBelt axle
-
2433200 Nut M6Nut M6
-
2540122 Screw M8x50Screw M8x50
-
26570023100 Rubber damperRubber damper
-
2733011 Nut elastic M8Nut elastic M8
-
28548841 Support sleeveSupport sleeve
-
295241177 Spring, L.H.Spring, L.H.
-
295241178 Spring, R.H.Spring, R.H.
-
3020011 WasherWasher
-
31546065 SleeveSleeve
-
325442328 Rubber damperRubber damper
-
3340032 Screw M6x30Screw M6x30
-
34548470 PlatePlate
-
35413703000 Loctite 242, 10ccLoctite 242, 10cc
-
36536063 Stopper strapStopper strap
-
3733010 Nut elastic M6Nut elastic M6
-
3833012 Nut elastic M10Nut elastic M10
-
39548799 Spring supportSpring support
-
40538943 AxleAxle
-
41544212 RivetRivet
-
42534403 AxleAxle
-
43538805 Spring L.H.Spring L.H.
-
43538806 Spring R.H.Spring R.H.
-
44548949 SleeveSleeve
-
4523016 ShockShock
-
46544417 SleeveSleeve
-
4740017 Screw M10x50Screw M10x50
-
4840239 Screw M10x100Screw M10x100
-
4931089 ShimShim
-
5020072 Lock washerLock washer
-
5131001 CirclipCirclip
-
5246031 Support wheel 165Support wheel 165
-
535444097 Sleeve l=57.5Sleeve l=57.5
-
5420009 WasherWasher
-
55572030800 Adjustment Cam, L.H.Adjustment Cam, L.H.
-
55572030900 Adjustment Cam, R.H.Adjustment Cam, R.H.
-
56546668 SleeveSleeve
-
5720023 WasherWasher
-
5831046 SleeveSleeve
-
59538801 Rocking frame, rearRocking frame, rear
-
6020068 Lock washerLock washer
-
6140018 Screw M10x55Screw M10x55
-
62548946 Lower axleLower axle
-
6340042 Screw M10x35Screw M10x35
-
64538796 Rocker arm, frontRocker arm, front
-
6540014 Screw M10x40Screw M10x40
-
6640314 Screw M10x30Screw M10x30
-
67538945 Upper axleUpper axle
-
68545758 SleeveSleeve
-
695440350 Lever, R.H.Lever, R.H.
-
70544590 EASY-RIDe-decalEASY-RIDe-decal
-
715243099 Extension pipe R.H.Extension pipe R.H.
-
7240008 Screw M8x45Screw M8x45
-
73535455 Rubber damperRubber damper
-
745440645 ShimplateShimplate
-
755440349 Lever, L.H.Lever, L.H.
-
765444096 Sleeve l=180.5Sleeve l=180.5
-
77542105 Sleeve l=176Sleeve l=176
-
78546216 AxleAxle
-
79539672 Support for axle L.H.Support for axle L.H.
-
80539673 Support for axle R.H.Support for axle R.H.
-
815440377 Extension screwExtension screw
-
8225004 Spring plateSpring plate
-
835444098 SleeveSleeve
-
845243098 Extension pipe L.H.Extension pipe L.H.
-
8533004 Nut M10Nut M10
-
8640030 Screw M6x20Screw M6x20
-
87548262 Crank blockCrank block
