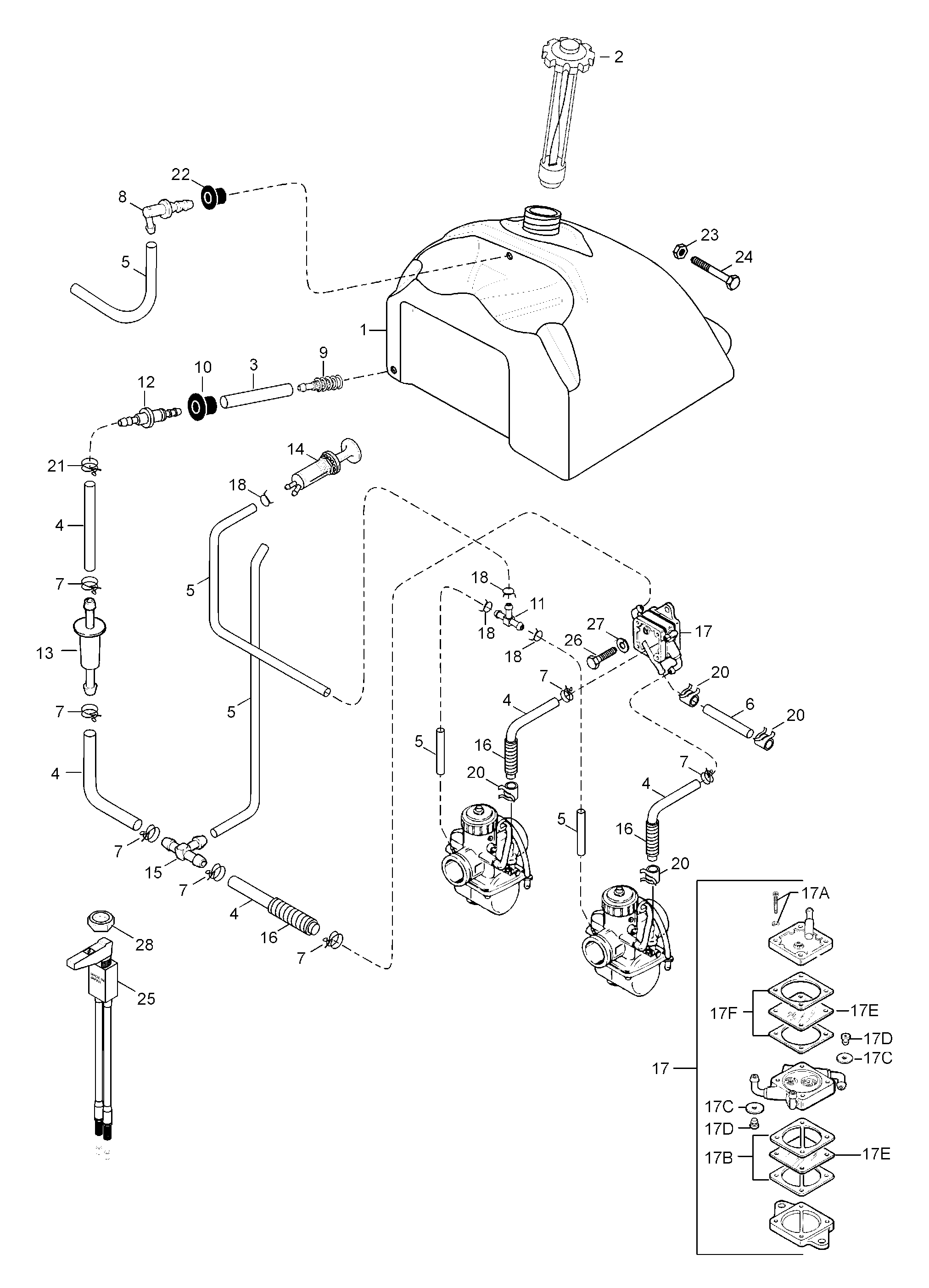

02- Fuel Tank для BRP Lynx Ranger King 500 - 1999
-
№АртикулНазвание
-
15141006 Fuel tank, 37lFuel tank, 37l
-
2572161200 GaugeGauge
-
339030 Fuel hose 8/5Fuel hose 8/5
-
439004 Fuel hose 8/5Fuel hose 8/5
-
539035 Primer hose 5/3Primer hose 5/3
-
639001 Fuel hoseFuel hose
-
727086 Spring clipSpring clip
-
8533535 Angle nippleAngle nipple
-
9414865700 Filter for fuel tankFilter for fuel tank
-
10570045500 GrommetGrommet
-
1121062 T-jointT-joint
-
12414518500 ConnectorConnector
-
1321065 Fuel filterFuel filter
-
14414479200 PrimerPrimer
-
1521067 T-jointT-joint
-
1628012 Spriral tubeSpriral tube
-
17403800600 Fuel pumpFuel pump
-
17a404131600 ScrewScrew
-
17b404902300 GasketGasket
-
17c404902100 GrommetGrommet
-
17d404900300 ValveValve
-
17E404902200 DiaphragmDiaphragm
-
17F404902400 GasketGasket
-
18543230 Clamp, primerClamp, primer
-
20414420700 Spring clipSpring clip
-
21414554800 Spring clampSpring clamp
-
2228037 GrommetGrommet
-
2333200 Lock nut M6Lock nut M6
-
2440085 Screw M6x80Screw M6x80
-
25535482 ChokeChoke
-
2640029 Screw M6x16Screw M6x16
-
2720003 WasherWasher
-
28414977200 NutNut
