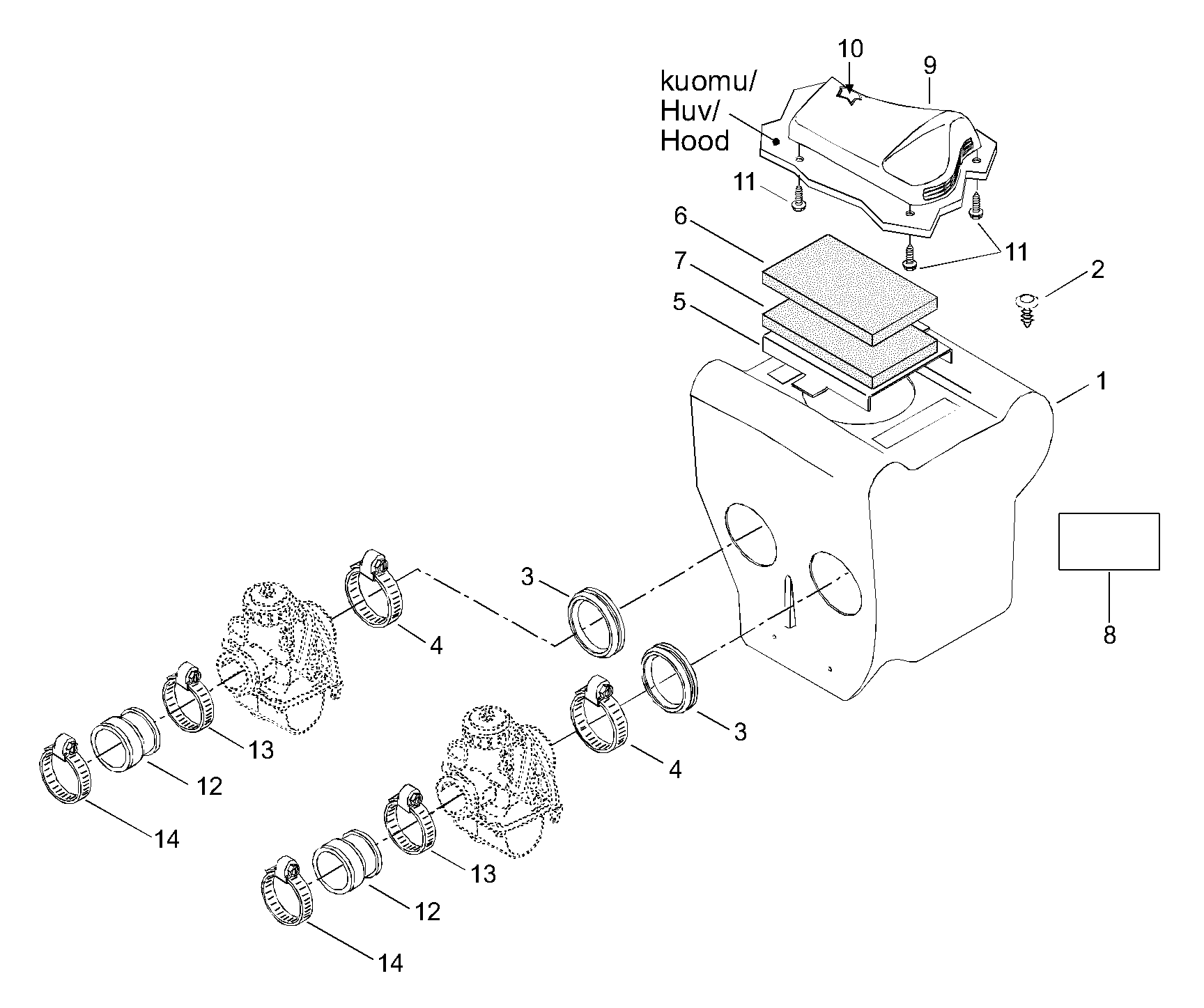

01- Air Silencer для BRP Lynx Ranger 2000 - 2000
-
№АртикулНазвание
-
1508000013 Air silencer assy. Includes items 1 thru 8Air silencer assy. Includes items 1 thru 8
-
2414644300 DartDart
-
3570043600 AdaptorAdaptor
-
4408801600 Gear clamp tridonGear clamp tridon
-
5517285900 Intake grillIntake grill
-
6415106000 Lower foamLower foam
-
7415037600 Air filterAir filter
-
8516000130 Caution labelCaution label
-
9572077900 Intake coverIntake cover
-
10414972600 Air filterAir filter
-
11243141640 ScrewScrew
-
12570066800 Fastening rubberFastening rubber
-
13408803800 Gear clamp tridonGear clamp tridon
-
14414532700 CollarCollar
