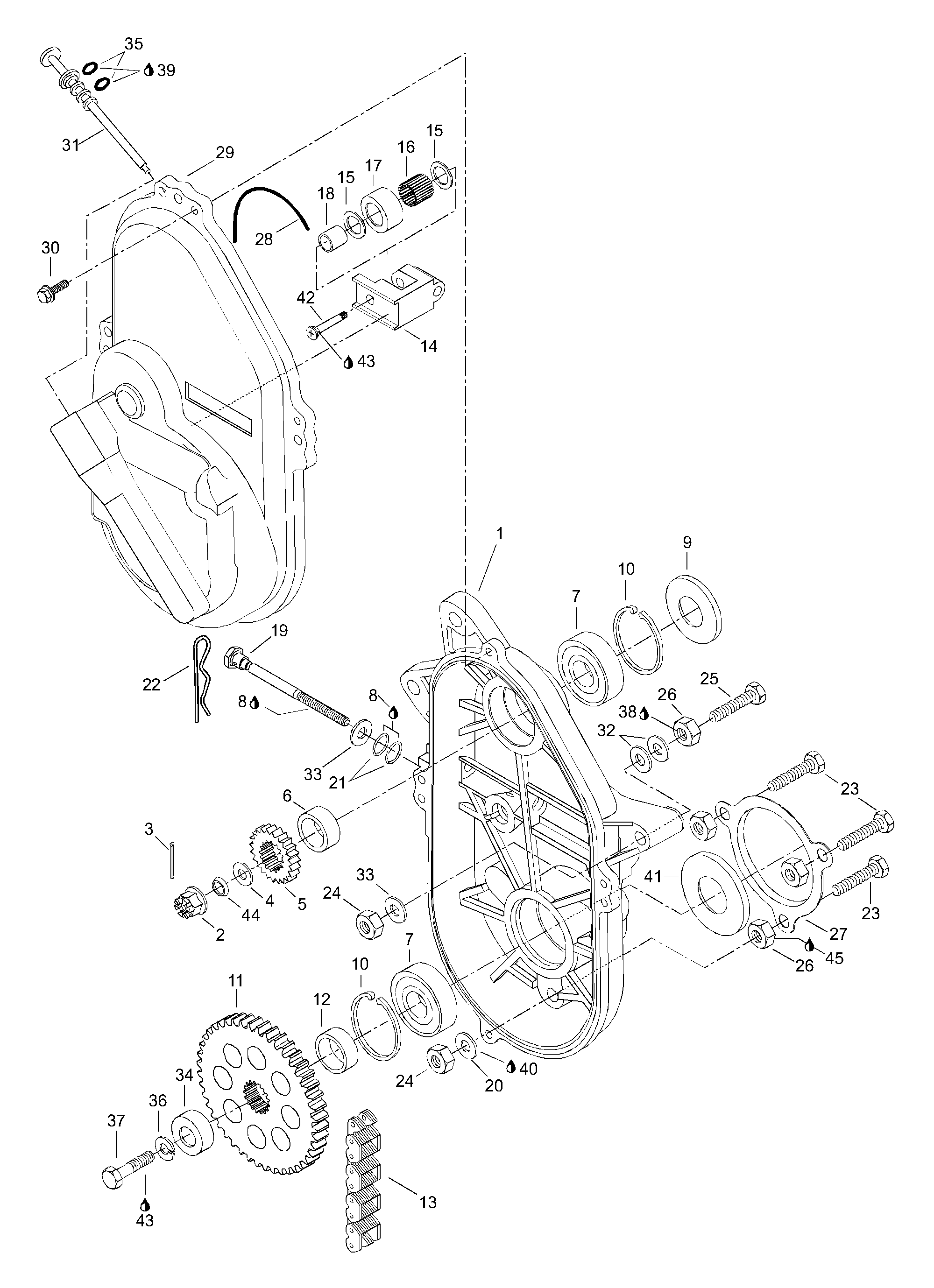

05- Chaincase для BRP Lynx Ranger 2000 - 2000
-
№АртикулНазвание
-
1504151785 ChaincaseChaincase
-
2232210414 NutNut
-
3371801300 Cotter pinCotter pin
-
4504087100 WasherWasher
-
5504070100 18 tooth sprocket18 tooth sprocket
-
6504093400 ShimShim
-
7405404400 Ball bearing 6205Ball bearing 6205
-
8413711500 Synthetic greaseSynthetic grease
-
9414882800 Oil sealOil seal
-
10371901700 CirclipCirclip
-
11504070900 Sprocket (44-tooth)Sprocket (44-tooth)
-
12504146400 BushingBushing
-
13504151882 Drive chain, 72 linksDrive chain, 72 links
-
14504081000 Chain tensionerChain tensioner
-
15504080300 WasherWasher
-
16405403000 Needle bearingNeedle bearing
-
17414531300 RollerRoller
-
18504080200 BushingBushing
-
19732601311 Adjustment screwAdjustment screw
-
2020073 Gasket-ringGasket-ring
-
21414484400 O-ringO-ring
-
22414575600 Hair pinHair pin
-
2340862 Screw M10x45Screw M10x45
-
2433082 Nut elastic M10Nut elastic M10
-
2540043 Screw M10x70Screw M10x70
-
26504083800 SpacerSpacer
-
27501022100 ProtectorProtector
-
28414362300 O-ringO-ring
-
29080037100 Chaincase coverChaincase cover
-
3040867 Self tapping screw M6x30Self tapping screw M6x30
-
31572092700 Filled cap assyFilled cap assy
-
32504073700 WasherWasher
-
3320005 WasherWasher
-
34501026200 CapCap
-
35414969400 O-ringO-ring
-
3620068 Lock washerLock washer
-
3740040 Screw M10x25Screw M10x25
-
38293800060 Loctite 243, 10mlLoctite 243, 10ml
-
39413803300 OilOil
-
40413702700 Loctite 515Loctite 515
-
41581101700 Oil sealOil seal
-
42732601144 ScrewScrew
-
43293800005 Loctite 271, 10mlLoctite 271, 10ml
-
44417000900 Spring washerSpring washer
-
45413705400 Loctite 270Loctite 270
