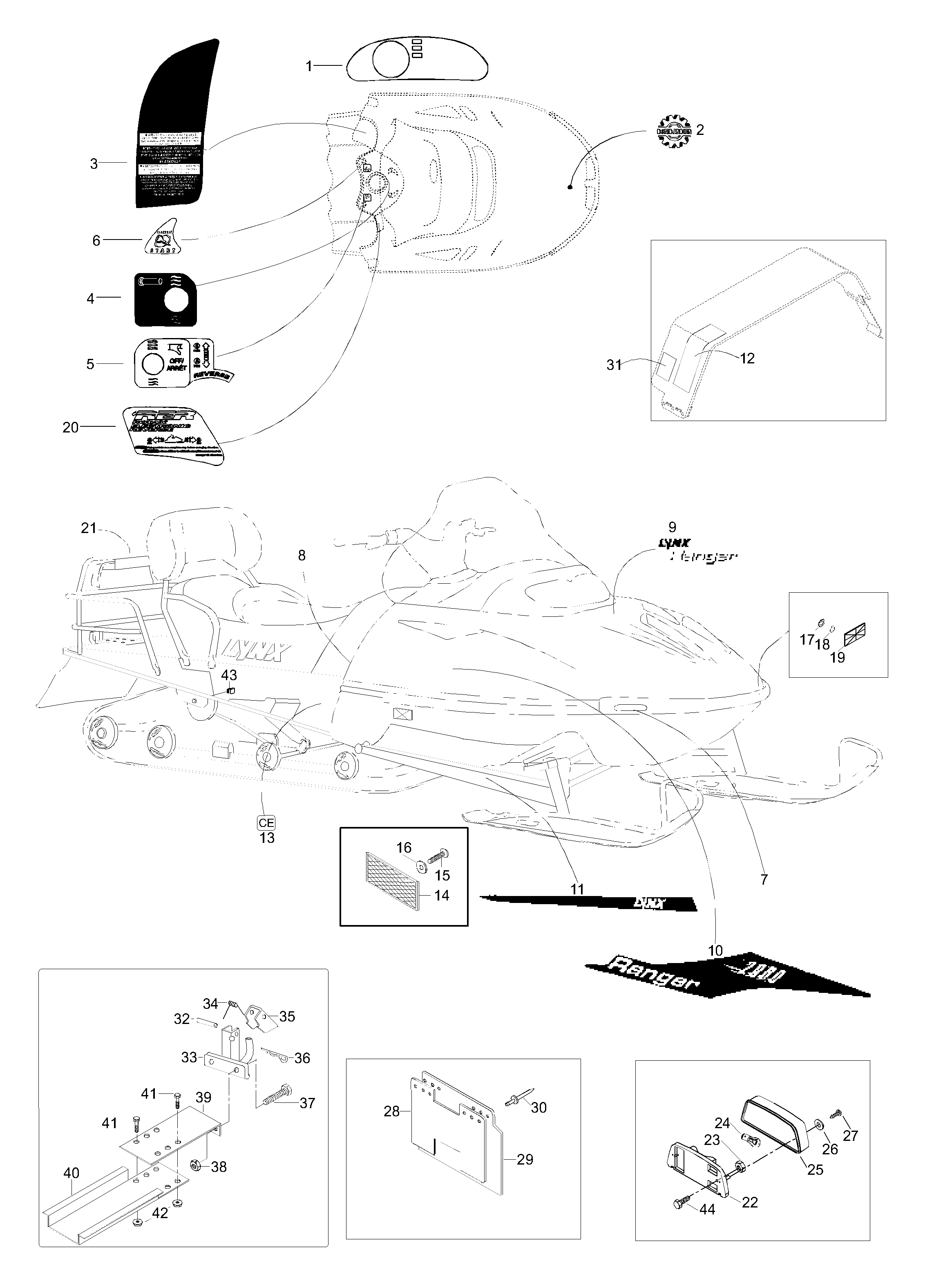

09- Equipment для BRP Lynx Ranger 2000 - 2000
-
№АртикулНазвание
-
5145219 Hood decal kit (incl. decals 9 and 10)Hood decal kit (incl. decals 9 and 10)
-
5143327 Instruction decals (incl. decals 8, 12 and 31)Instruction decals (incl. decals 8, 12 and 31)
-
15344623 Dash dekalDash dekal
-
2516000282 Logo BombardierLogo Bombardier
-
3414935000 Warning decalWarning decal
-
4414898500 Dash decalDash decal
-
5516000262 Heat thumb decalHeat thumb decal
-
6516000271 Electric decalElectric decal
-
7418001009 Reflector decalReflector decal
-
8544068 Oil check decalOil check decal
-
95145793 Front hood decalFront hood decal
-
105145791 R.H. hood decalR.H. hood decal
-
105145792 R.H. hood decalR.H. hood decal
-
115145794 Swing Arm Decal R.H.Swing Arm Decal R.H.
-
115145795 Swing Arm Decal L.H.Swing Arm Decal L.H.
-
12546820 Instruction labelInstruction label
-
135445636 CE-decalCE-decal
-
14414510200 Reflector, yellowReflector, yellow
-
1520018 WasherWasher
-
1640070 ScrewScrew
-
1741034 Locking ringLocking ring
-
1848227 O-ringO-ring
-
1921148 Reflector, WhiteReflector, White
-
20418001602 Reverse decalReverse decal
-
215446230 Warning labelWarning label
-
22414513600 Tail lamp housingTail lamp housing
-
2333200 Nut M6Nut M6
-
24410504000 BulpBulp
-
25414513700 LensLens
-
26414516400 WasherWasher
-
27209632540 ScrewScrew
-
285340584 Support, snow guardSupport, snow guard
-
29534727 Snow guardSnow guard
-
3036037 RivetRivet
-
31544073 Fan Belt DecalFan Belt Decal
-
325343991 Hitch Ass’y. Includes items 32 thru 38Hitch Ass’y. Includes items 32 thru 38
-
3241012 Spring PinSpring Pin
-
33545224 HitchHitch
-
34545693 SpringSpring
-
35545225 LockLock
-
3641029 Needle PinNeedle Pin
-
3740016 Screw M10x45Screw M10x45
-
3833012 Nut M10Nut M10
-
395345206 Support, upperSupport, upper
-
405245999 Support, lowerSupport, lower
-
4140846 Locking screw m6x16Locking screw m6x16
-
4233010 Nut elastic M6Nut elastic M6
-
4328232 PlugPlug
-
4440032 Screw M6x30Screw M6x30
