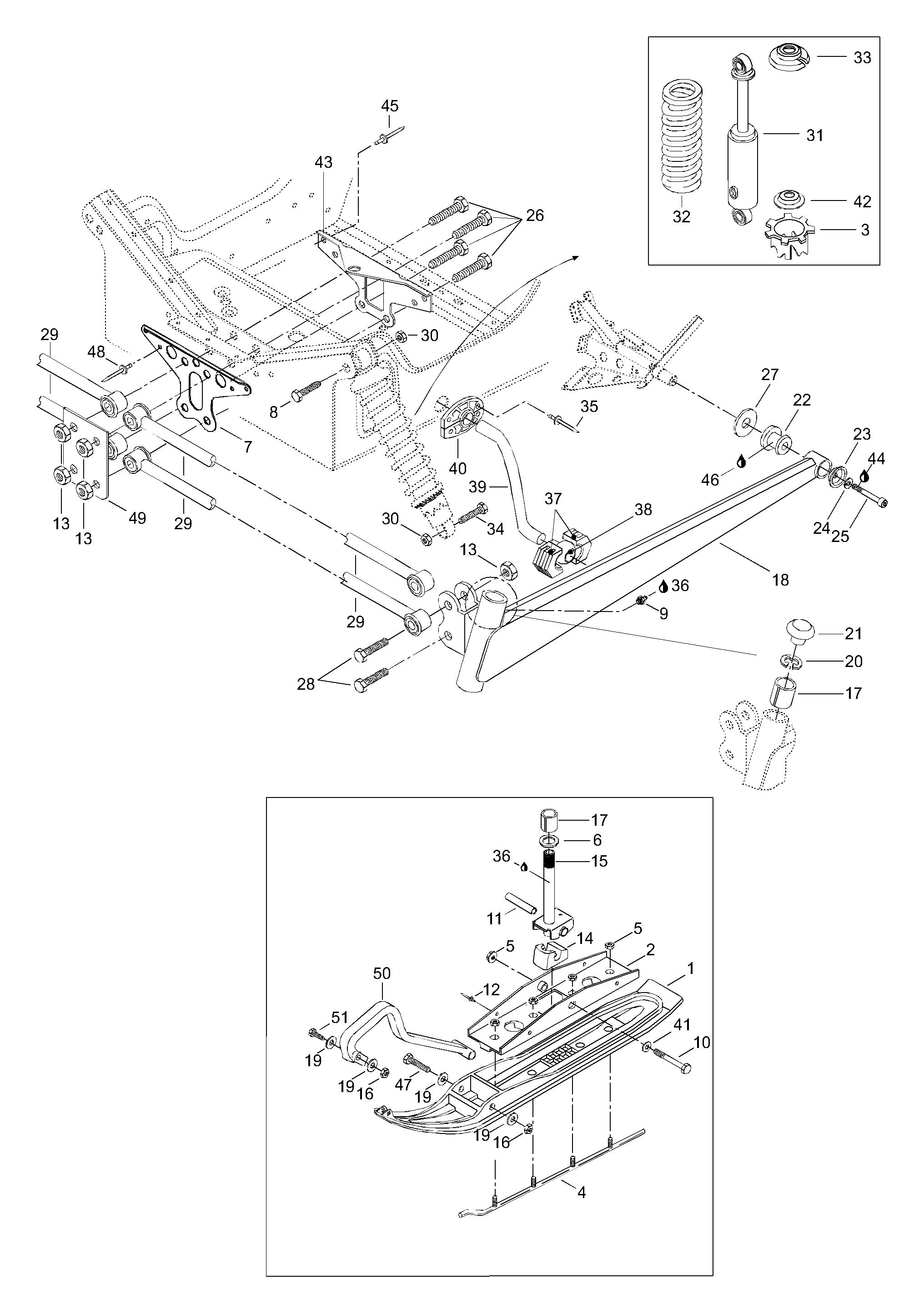

08- Front Suspension для BRP Lynx Ranger 2000 - 2000
-
№АртикулНазвание
-
1505070325 SkiSki
-
2505070425 RunnerRunner
-
333011 Nut elastic M8Nut elastic M8
-
4505070324 Ski stopperSki stopper
-
5505070323 SleeveSleeve
-
640814 Screw M10x110Screw M10x110
-
733082 Nut elastic M10Nut elastic M10
-
8293800060 Loctite 243, 10mlLoctite 243, 10ml
-
9293550014 GreaseGrease
-
10413711500 Synthetic greaseSynthetic grease
-
1134011 Crease nippleCrease nipple
-
12390404900 RivetRivet
-
13505070321 Ski legSki leg
-
14505070003 SleeveSleeve
-
15505070004 WasherWasher
-
16505070374 R.H. swing armR.H. swing arm
-
16505070375 L.H. swing armL.H. swing arm
-
17371910400 CirclipCirclip
-
18572091300 CapCap
-
19570062200 Rubber damperRubber damper
-
20503146700 WasherWasher
-
21506115800 Cup washerCup washer
-
2220014 Spring washerSpring washer
-
2340289 Allen screw M8x25Allen screw M8x25
-
24517254900 Rear link plateRear link plate
-
25517254800 Front link plateFront link plate
-
26518306700 SupportSupport
-
2740023 Screw M10x100Screw M10x100
-
28390909200 RivetRivet
-
29414916600 PluggPlugg
-
30505070013 ShockShock
-
31414955800 SpringSpring
-
32503165100 Spring guideSpring guide
-
33503140600 Spring stopperSpring stopper
-
34503184400 WasherWasher
-
3540019 Screw M10x60Screw M10x60
-
3640018 Screw M10x55Screw M10x55
-
3733082 Nut elastic M10Nut elastic M10
-
38580649500 ArmArm
-
39401250 Screw M12x50Screw M12x50
-
4033013 Nut elastic M12Nut elastic M12
