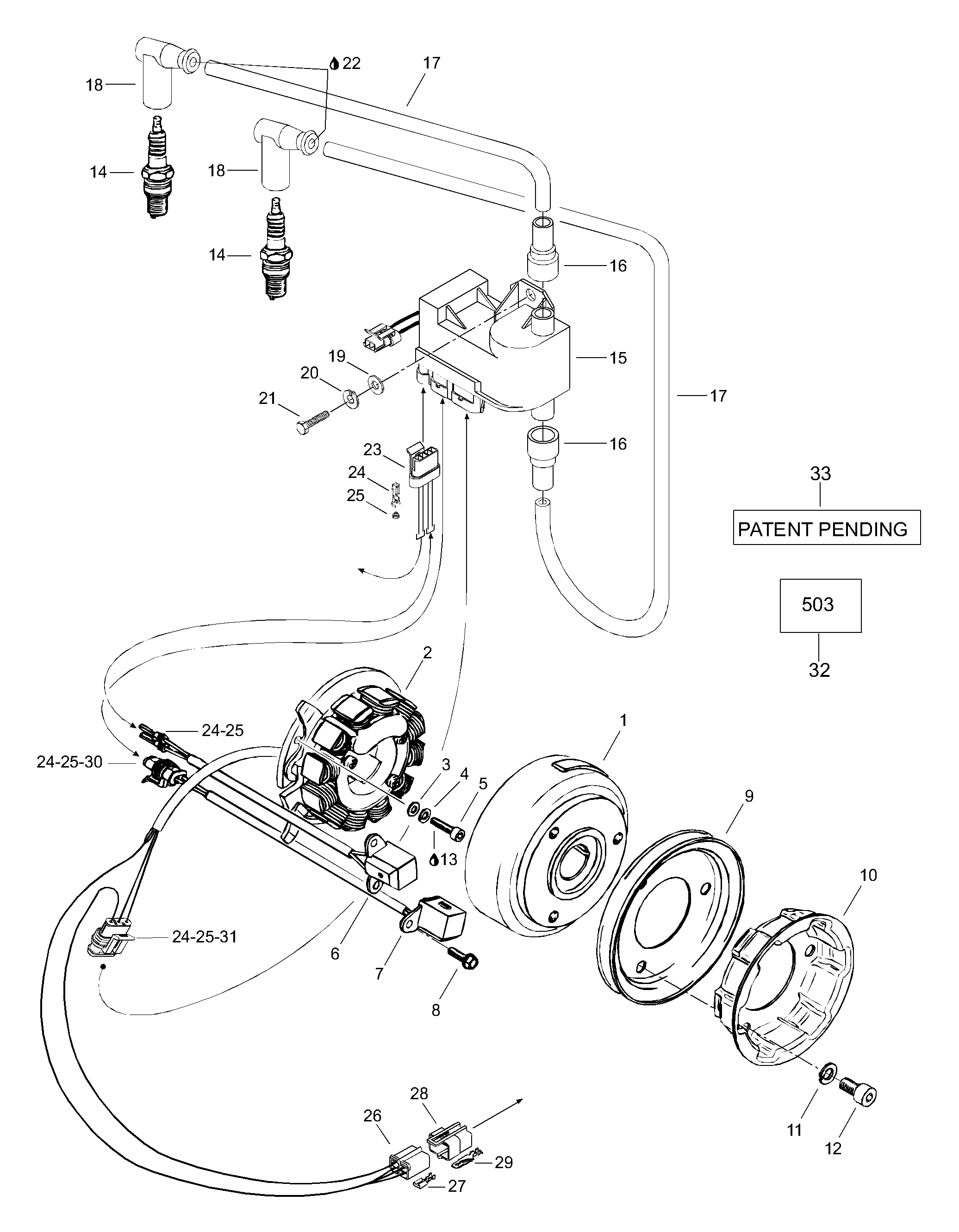

03- Fly Wheel для BRP Lynx Ranger 2000 - 2000
-
№АртикулНазвание
-
1420887653 Magneto 12V 240W. Includes items 1 thru 2Magneto 12V 240W. Includes items 1 thru 2
-
1420996824 Fly wheelFly wheel
-
2420886603 Stator plate assyStator plate assy
-
3420927571 WasherWasher
-
420013 Sring washerSring washer
-
5420840515 Allen screw M5x18Allen screw M5x18
-
6420966547 Pick up assy for reversePick up assy for reverse
-
7420966545 Pick up assyPick up assy
-
8420941925 Taptite screw M5x16Taptite screw M5x16
-
9420980486 V-belt pulleyV-belt pulley
-
10420852414 Starting pulleyStarting pulley
-
11420845311 Lock washerLock washer
-
12420841521 Allen screw M8x12Allen screw M8x12
-
13293800060 Loctite 243, 10mlLoctite 243, 10ml
-
14414961100 Spark plug BR-9ESSpark plug BR-9ES
-
15515175386 Electronic box assyElectronic box assy
-
16515174900 Protection capProtection cap
-
17278001268 Ignition cableIgnition cable
-
18278000237 Spark plug connectorSpark plug connector
-
1920112 WasherWasher
-
2020003 WasherWasher
-
2140332 Allen screw M6x16Allen screw M6x16
-
22413711500 Synthetic greaseSynthetic grease
-
23409209700 Connector housingConnector housing
-
24278001014 Connector housingConnector housing
-
25278001013 SealSeal
-
26409204900 Connector housingConnector housing
-
27515175253 Female terminalFemale terminal
-
28409209300 Connector housingConnector housing
-
29409210000 Male terminalMale terminal
-
30409209500 Connector housingConnector housing
-
31409209600 Connector housingConnector housing
-
32512059085 Checking-labelChecking-label
-
33418003000 Pending-labelPending-label
