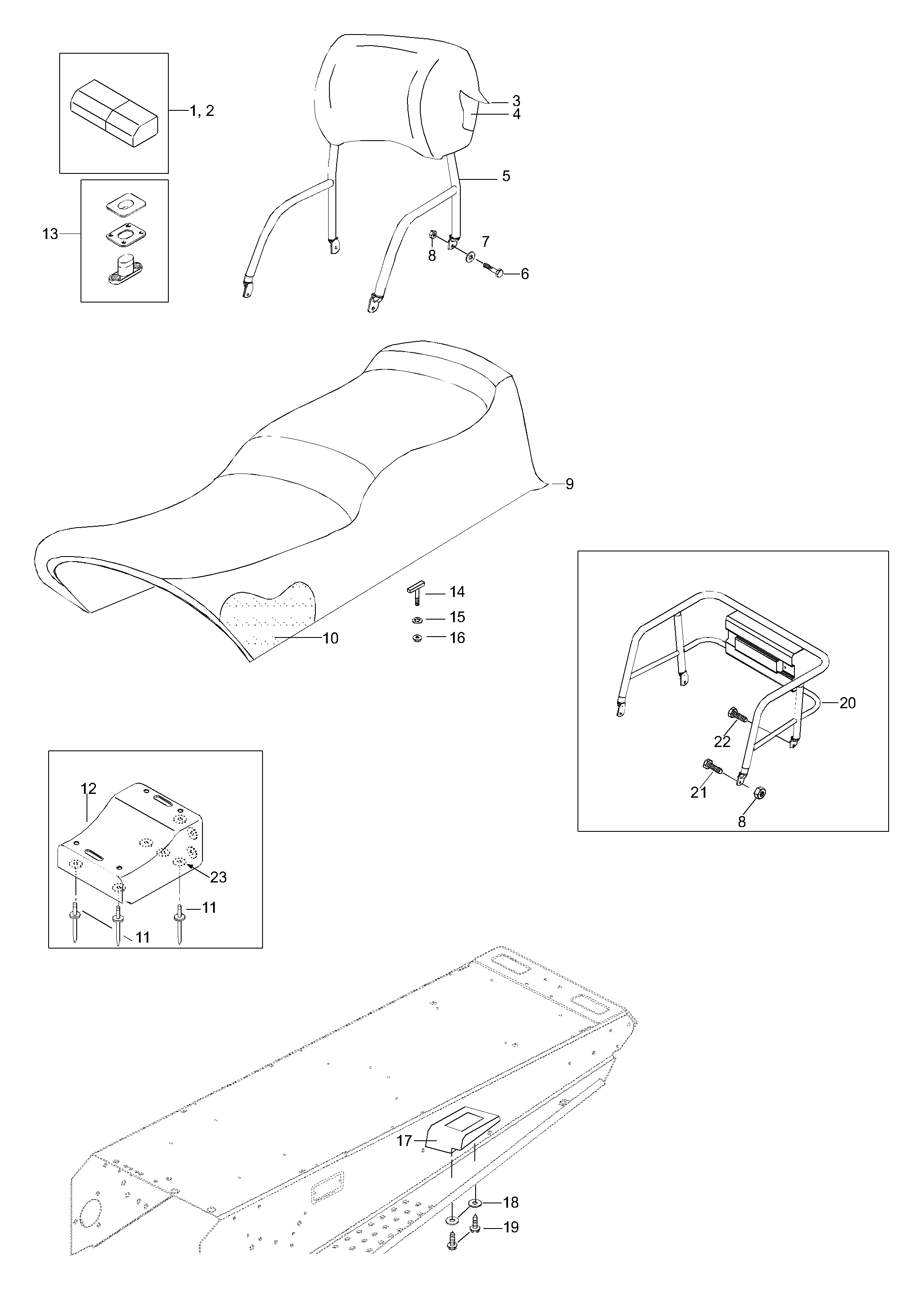

09- Body для BRP Lynx Ranger 2000 - 2000
-
№АртикулНазвание
-
15445403 Tool box (with tools)Tool box (with tools)
-
2572036310 Tool boxTool box
-
35340917 Back rest coverBack rest cover
-
4539399 Back rest stoppningBack rest stoppning
-
55245709 BackrestBackrest
-
640882 Screw M8x20Screw M8x20
-
720111 Spring washerSpring washer
-
833201 Nut elastic M8Nut elastic M8
-
95245230 Seat coverSeat cover
-
105145789 Seat foamSeat foam
-
1136036 RivetRivet
-
12572051200 Rear trunkRear trunk
-
1328354 Seat BuckleSeat Buckle
-
14732601221 T-screwT-screw
-
15732610072 Nut pushNut push
-
1633200 Nut elastic M6Nut elastic M6
-
17572088700 R.H. footrestR.H. footrest
-
17572088800 L.H. footrestL.H. footrest
-
18224061121 WasherWasher
-
1940870 ScrewScrew
-
205145593 RackRack
-
2140008 Screw M8x45Screw M8x45
-
2240036 Screw M8x20Screw M8x20
-
23234051410 WasherWasher
