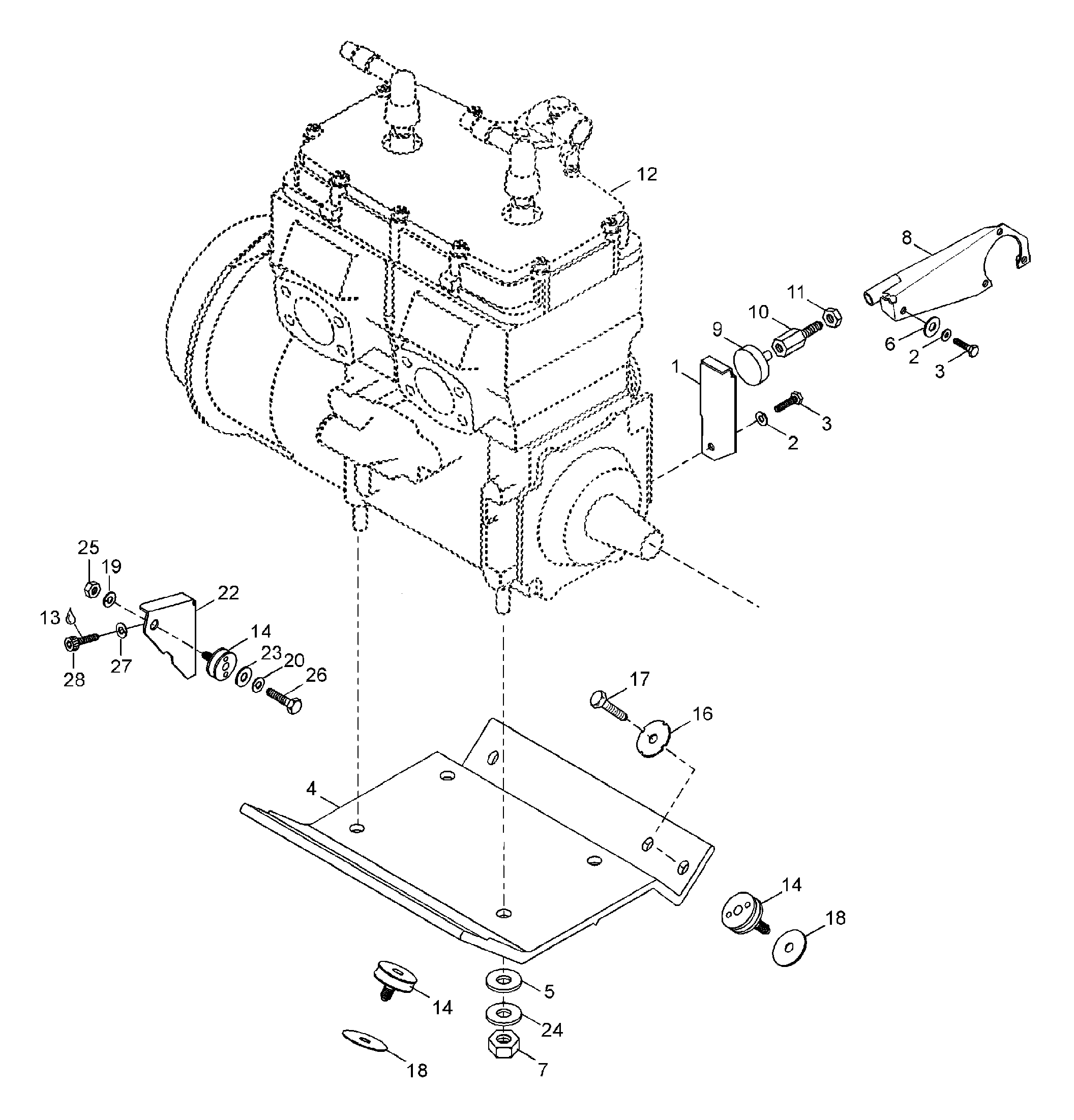

01- Engine Mount Plate для BRP Lynx Rave Snowcross - 2000
-
№АртикулНазвание
-
15341891 Stopper plateStopper plate
-
220052 WasherWasher
-
340029 Screw M6x16Screw M6x16
-
45344268 Engine supportEngine support
-
520105 Washer, hardenedWasher, hardened
-
620009 WasherWasher
-
733004 Nut M10Nut M10
-
85341685 Support plate weld.Support plate weld.
-
9570025100 StopperStopper
-
10517244200 ScrewScrew
-
1133063 Nut M12Nut M12
-
13293800005 Loctite 271/greenLoctite 271/green
-
145441913 Rubber insulatorRubber insulator
-
16512056700 Lock washerLock washer
-
1740228 Screw M10x16Screw M10x16
-
18546221 WasherWasher
-
1920047 WasherWasher
-
2020105 Washer, hardenedWasher, hardened
-
225343853 Engine support, frontEngine support, front
-
2320023 WasherWasher
-
2420047 Spring washerSpring washer
-
2533012 Nut elastic M10Nut elastic M10
-
2640228 Screw M10x16Screw M10x16
-
2720004 WasherWasher
-
2840066 Allen screw M8x16Allen screw M8x16
