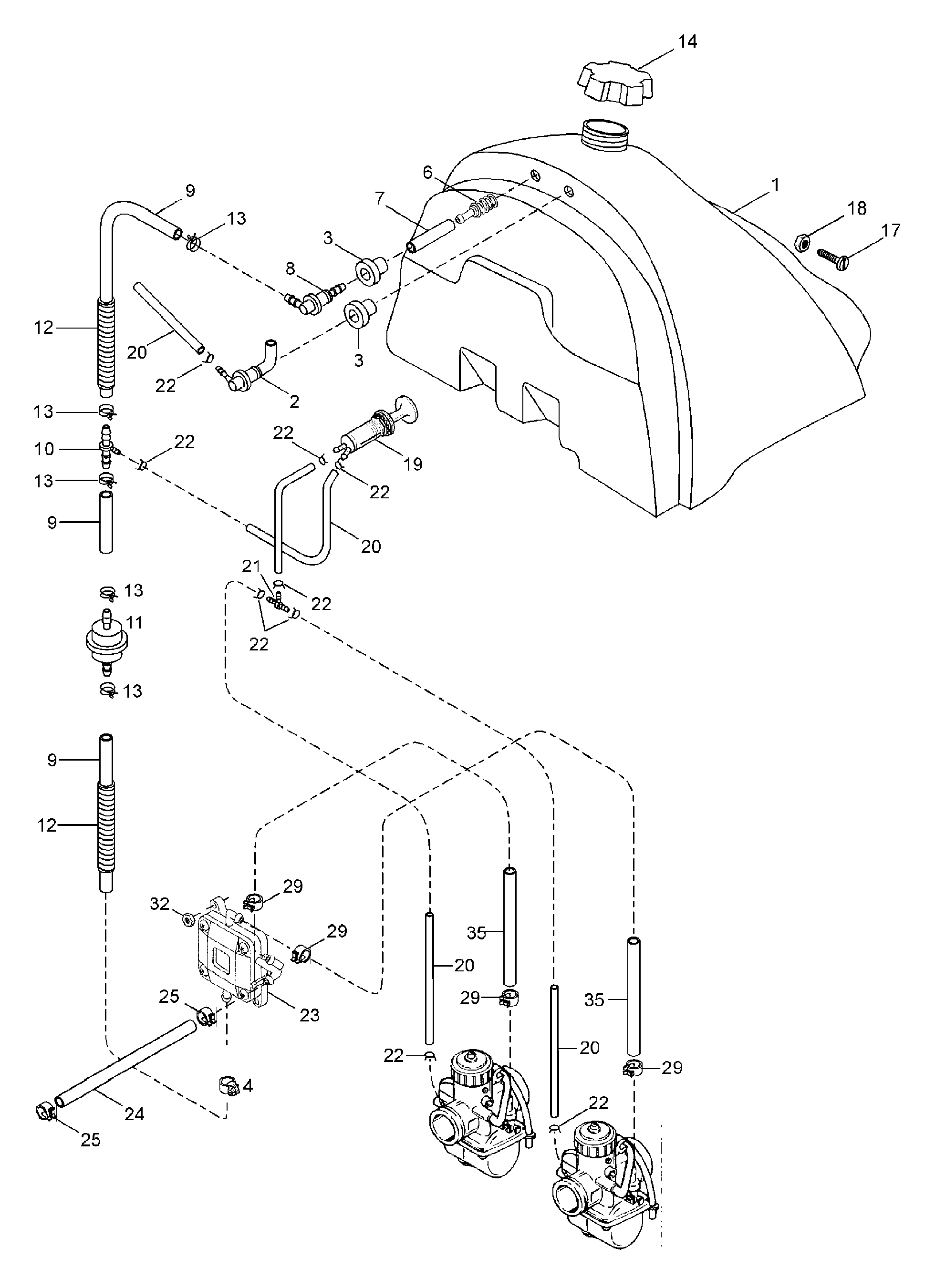

02- Fuel Tank для BRP Lynx Rave Snowcross - 2000
-
№АртикулНазвание
-
15243838 Fuel tankFuel tank
-
25442152 Air vent fitting a’ssyAir vent fitting a’ssy
-
328037 RubberRubber
-
427040 ClampClamp
-
6414872100 Fuel filterFuel filter
-
739048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
85341709 Angle adapterAngle adapter
-
939046 Hose 11/8Hose 11/8
-
10415119300 Plastic T-fitting (Primer)Plastic T-fitting (Primer)
-
11414536500 Fuel filterFuel filter
-
1228012 TubingTubing
-
1327119F ClampClamp
-
14572230500 Cap assemblyCap assembly
-
1740211 Screw M6x35Screw M6x35
-
1833200 Nut M6Nut M6
-
19414479200 PrimerPrimer
-
2039035 Airhose 5/3Airhose 5/3
-
2121062 ''T'' fitting, fuel''T'' fitting, fuel
-
22543230 Clamp, primer hodeClamp, primer hode
-
23403901200 Fuel pumpFuel pump
-
2439001 Fuel line 11/6Fuel line 11/6
-
25414420700 Spring clipSpring clip
-
27549200 Gauge decal, emptyGauge decal, empty
-
29414554800 Spring clampSpring clamp
-
3233200 Nut M6Nut M6
-
3539004 Fuel line 8/5Fuel line 8/5
