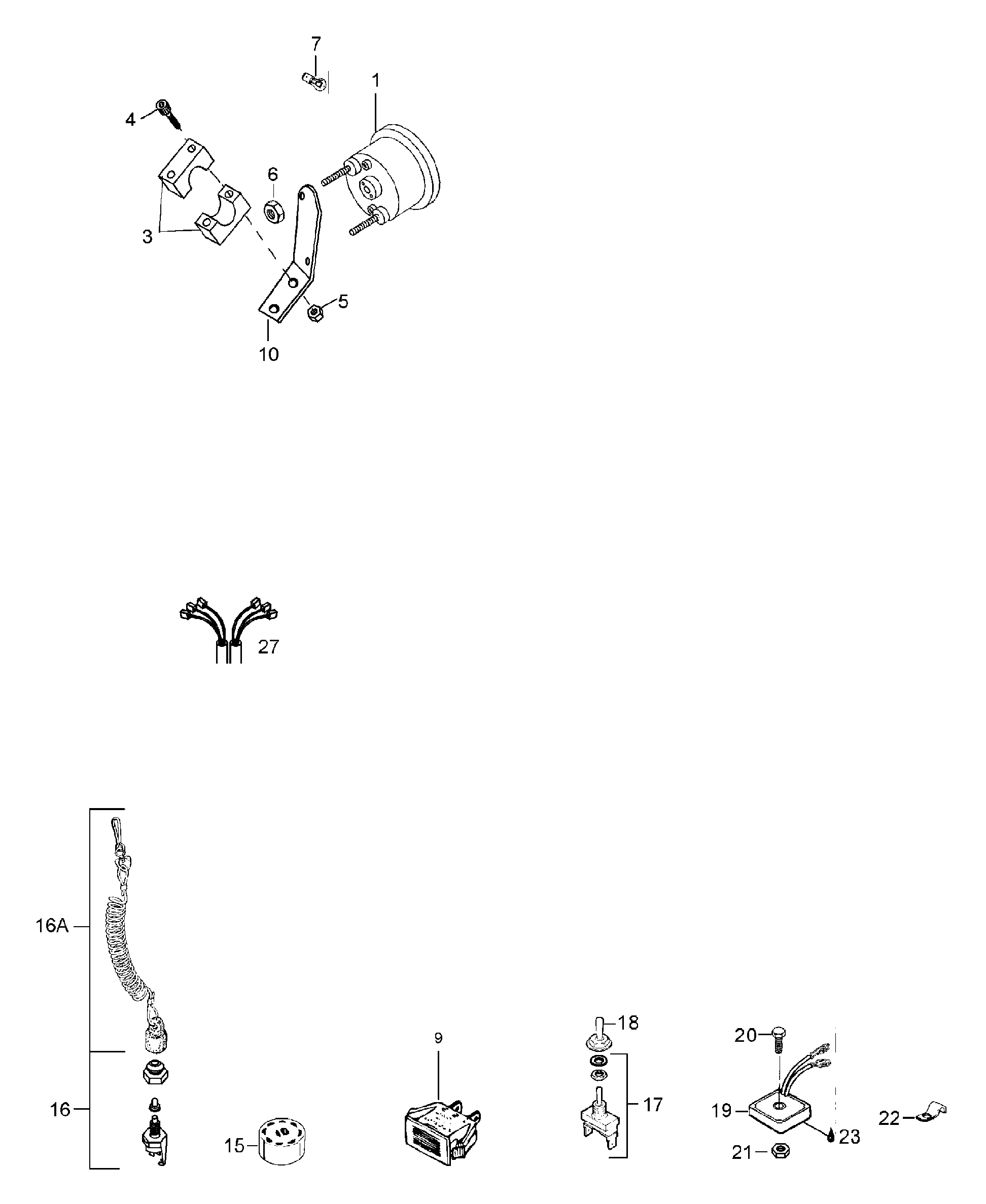

10- Electric для BRP Lynx Rave Snowcross - 2000
-
№АртикулНазвание
-
1515175340 Tachometer whiteTachometer white
-
3548448 FasteningFastening
-
440131 Allen screw M8x40Allen screw M8x40
-
533011 Nut elastic M8Nut elastic M8
-
633009 Nut elastic M6Nut elastic M6
-
7410504200 Instrumentation bulbInstrumentation bulb
-
9410109700 Lamp-pilotLamp-pilot
-
105444267 Fastening PartFastening Part
-
15572150700 Ignition switch blockIgnition switch block
-
16544957 Emercency switch. Includes items 16 thru 16Emercency switch. Includes items 16 thru 16
-
16a4299163 Switch cap assySwitch cap assy
-
17410110700 SwitchSwitch
-
18515175281 Rubber cover for switchRubber cover for switch
-
195441403 Regulator assyRegulator assy
-
2040003 Screw M6x35Screw M6x35
-
2133010 Nut elastic M6Nut elastic M6
-
22414227300 ClampClamp
-
23413706400 Litium greaseLitium grease
-
275244859 Wire assyWire assy
