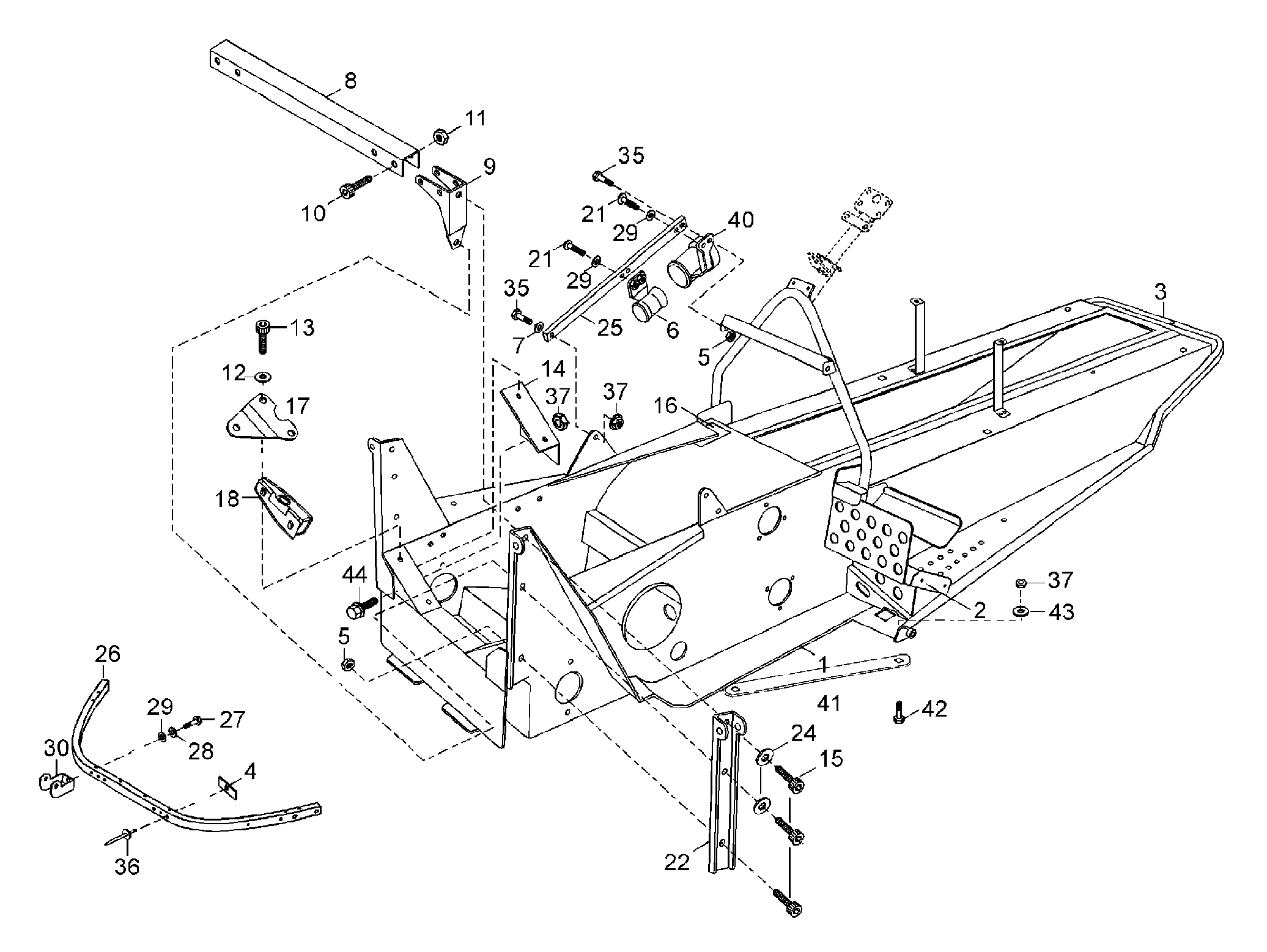

09- Frame для BRP Lynx Rave Snowcross - 2000
-
№АртикулНазвание
-
15144980 Chassis unpaintedChassis unpainted
-
25243018 L.H. Front footrestL.H. Front footrest
-
25243019 R.H. Front footrestR.H. Front footrest
-
35243825 Rear BumberRear Bumber
-
533011 Nut elastic M8Nut elastic M8
-
65443756 Rope GuideRope Guide
-
720004 WasherWasher
-
85341940 Support tubeSupport tube
-
95441938 Support weld.Support weld.
-
1040286 Allen screw M8x45Allen screw M8x45
-
1133029 Lock nutLock nut
-
1220072 Lock washerLock washer
-
1340305 Allen screw M8x20Allen screw M8x20
-
145343067 SupportSupport
-
1540305 Allen screw M8x20Allen screw M8x20
-
165442096 Cover TapeCover Tape
-
175344213 Support tunepipeSupport tunepipe
-
185443069 Support weld.Support weld.
-
2140155 Screw M6x20Screw M6x20
-
225343050 BracketBracket
-
255443066 SupportSupport
-
265344269 Hinge bumberHinge bumber
-
2740029 Screw M6x16Screw M6x16
-
2820009 WasherWasher
-
2920052 Spring washerSpring washer
-
305444295 Hinge support weld.Hinge support weld.
-
3240078 Screw M6x22Screw M6x22
-
3333010 Nut elastic M6Nut elastic M6
-
3420003 WasherWasher
-
3540037 Screw M8x25Screw M8x25
-
3636489 RivetRivet
-
3733201 Lock nut M8Lock nut M8
-
405443999 Rope GuideRope Guide
-
415345770 Pulling sheetPulling sheet
-
4240312 Locking screwLocking screw
-
4320005 WasherWasher
-
4440336 Screw M8x20Screw M8x20
