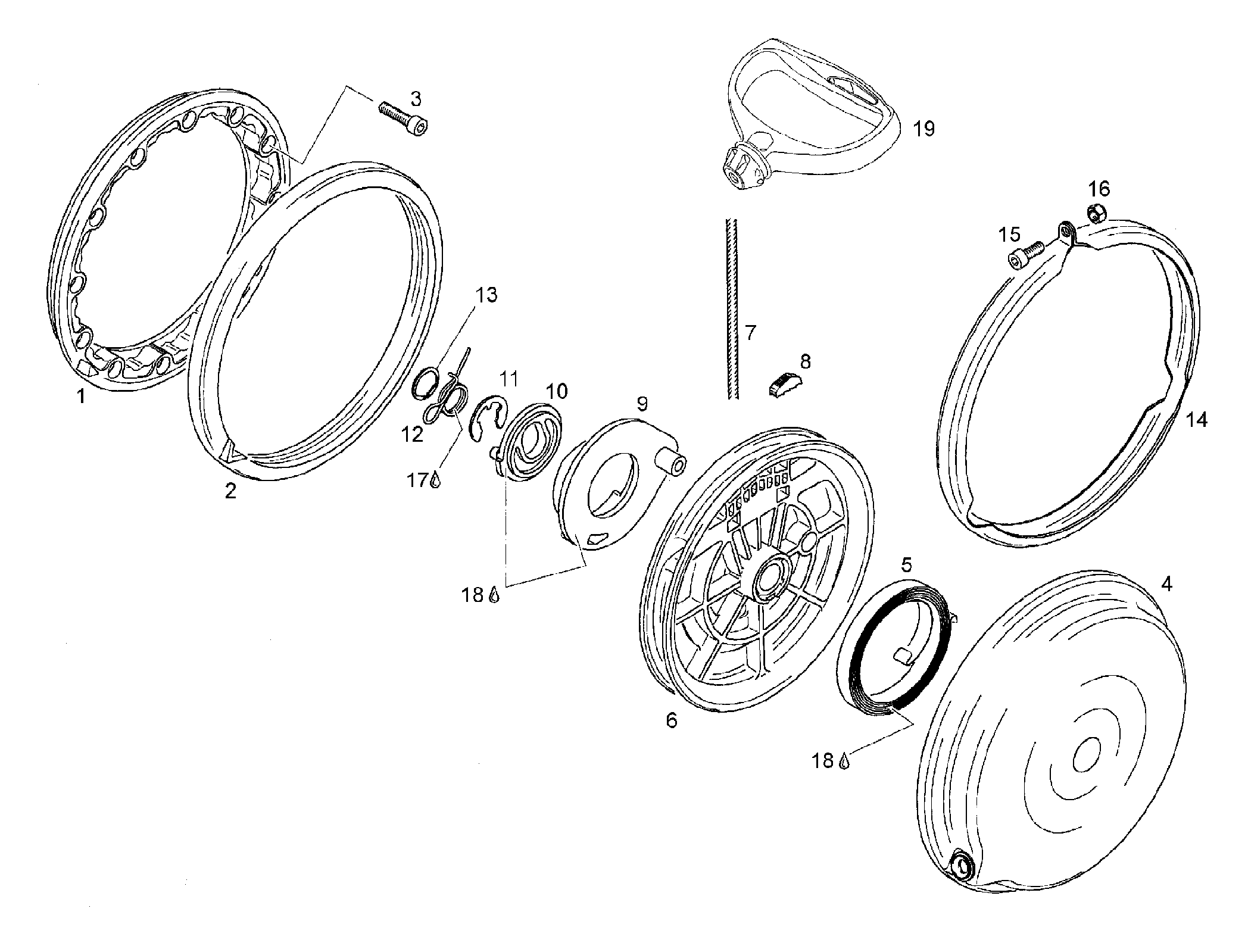

04- Rewind Starter для BRP Lynx Rave Snowcross - 2000
-
№АртикулНазвание
-
1420887441 Rewind starter kit. Includes items 1 thru 18Rewind starter kit. Includes items 1 thru 18
-
1420810860 Connection flangeConnection flange
-
2420860950 Damper ringDamper ring
-
3420840861 Allen screw M6x25Allen screw M6x25
-
4420887440 Rewind starter assy. Includes items 4 thru 13Rewind starter assy. Includes items 4 thru 13
-
4420810875 Starter housing assyStarter housing assy
-
5420939115 Rewind spring assyRewind spring assy
-
6420852284 Rope sheaveRope sheave
-
7420852491 Starter rope 2,2mStarter rope 2,2m
-
7412500100 Starter rope 30mStarter rope 30m
-
8420852070 Key clampKey clamp
-
9420852294 PawlPawl
-
10420852301 Pawl lockPawl lock
-
11420845300 Locking plateLocking plate
-
12420938985 SpringSpring
-
13420945770 CirclipCirclip
-
14420851330 ClampClamp
-
15420241236 Allen screw M6x16Allen screw M6x16
-
16420842040 Lock nut M6Lock nut M6
-
17420297433 Molykote G-NMolykote G-N
-
18420897061 Silicon comb. greaseSilicon comb. grease
-
19572084400 HandleHandle
