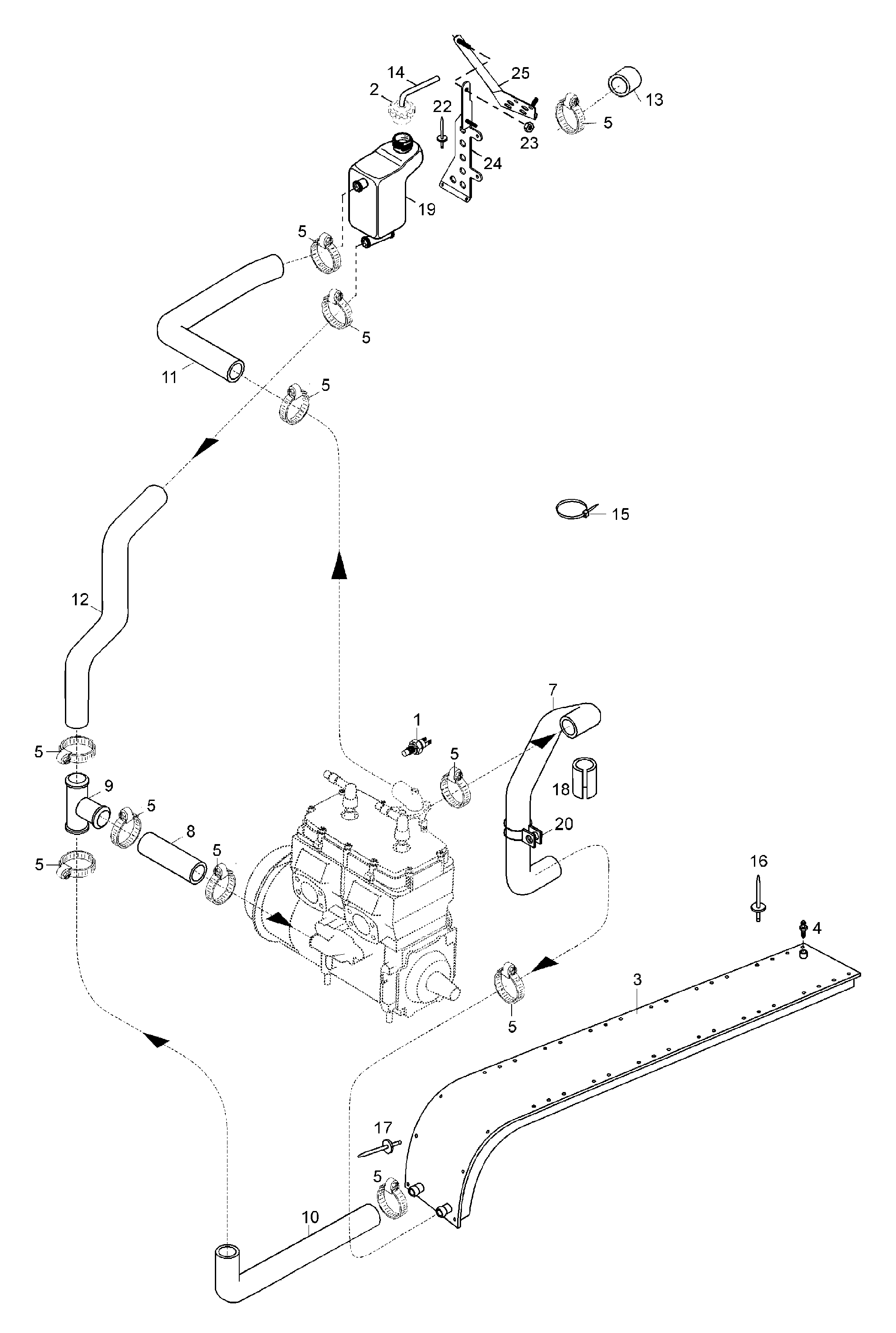

01- Radiator, Hoses для BRP Lynx Rave Snowcross - 2000
-
№АртикулНазвание
-
1512047000 Sender temperatureSender temperature
-
221018 Cap pressureCap pressure
-
35240977 RadiatorRadiator
-
4414989800 Airing screwAiring screw
-
527003 Hose clampHose clamp
-
75243707 Radiator Outlet HoseRadiator Outlet Hose
-
85441471 HoseHose
-
9414619900 “T”fitting“T”fitting
-
105341186 HoseHose
-
115444043 HoseHose
-
125344044 HoseHose
-
135441703 Hose plugHose plug
-
1439038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
1527026 Tie-rapTie-rap
-
1636083 RivetRivet
-
1736489 RivetRivet
-
18548754 Cover hoseCover hose
-
195142859 Coolant-tankCoolant-tank
-
2027011 ClampClamp
-
2236489 RivetRivet
-
2333200 Nut M6Nut M6
-
245343835 Coolant tank supportCoolant tank support
-
255443836 SupportSupport
