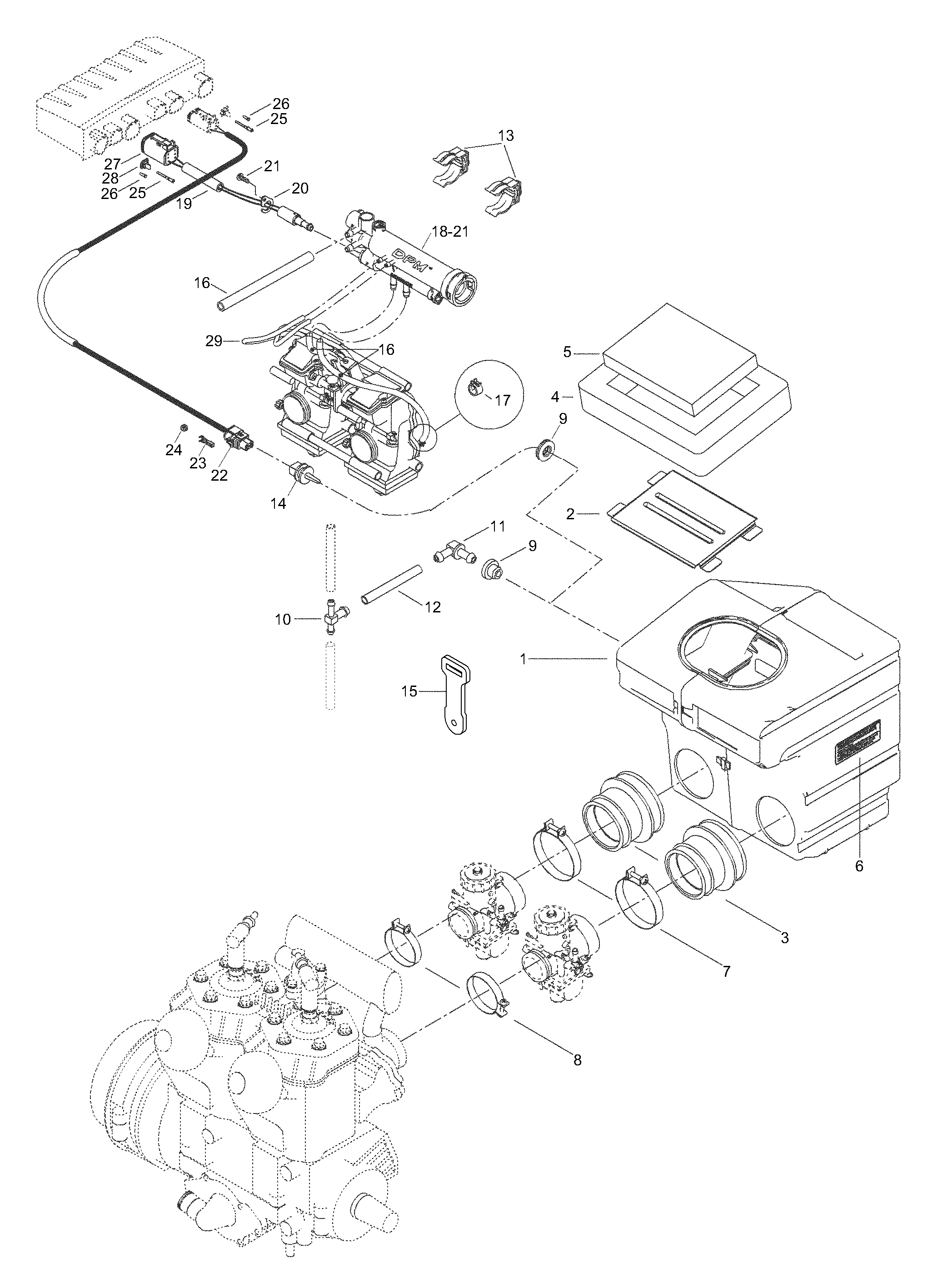

01- Air Silencer для BRP Lynx Racing - 2001
-
№АртикулНазвание
-
1508000182 Air intake assy. Includes items 1 thru 6Air intake assy. Includes items 1 thru 6
-
2508000004 Intake grillIntake grill
-
3508000006 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516000130 Label cautionLabel caution
-
727046 ClampClamp
-
8512059005 ClampClamp
-
9513032908 GrommetGrommet
-
10572045500 T-fittingT-fitting
-
11414580600 ConnectorConnector
-
1239038 Hose 6.5/9.5Hose 6.5/9.5
