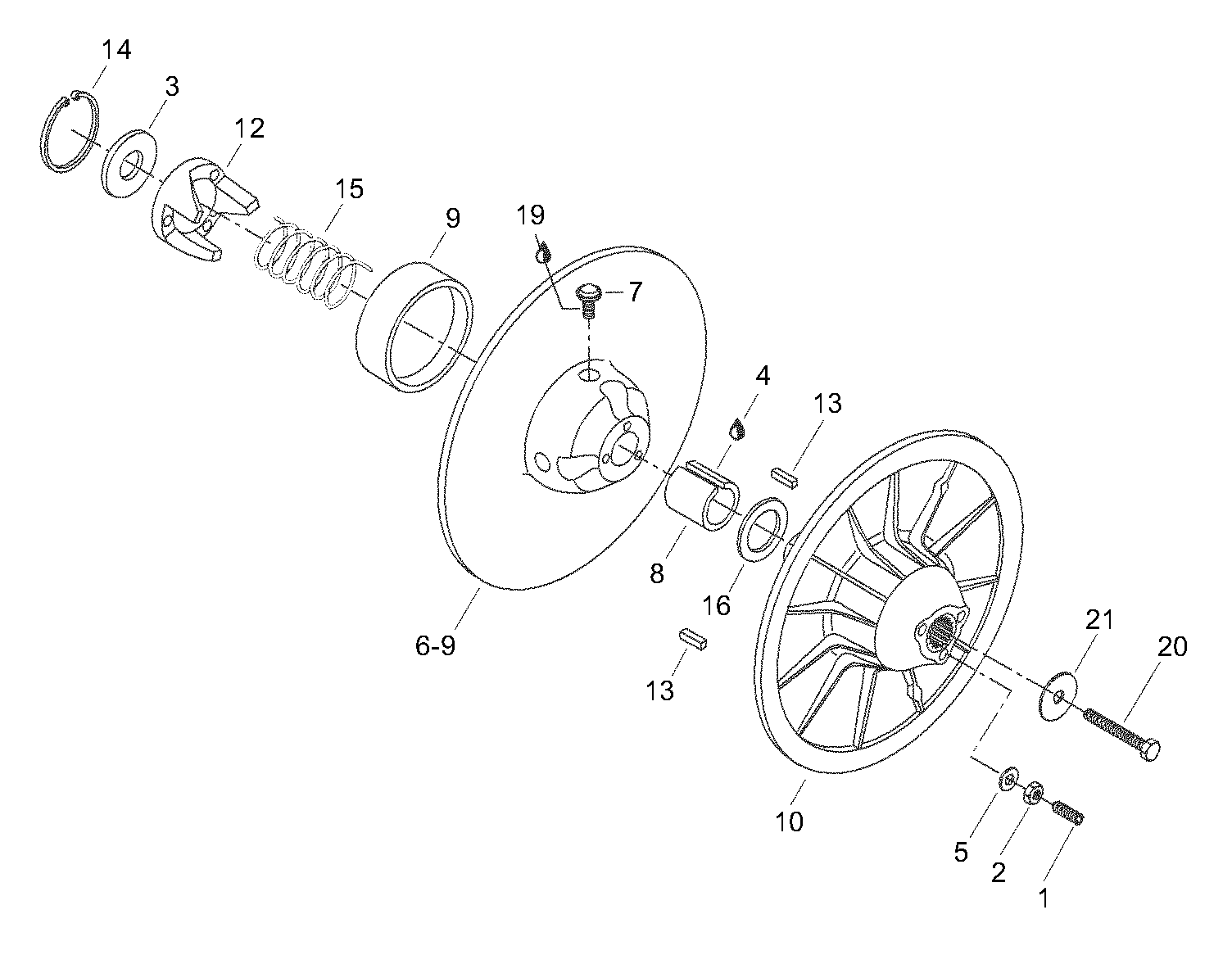

05- Driven Pulley для BRP Lynx Racing - 2001
-
№АртикулНазвание
-
1206263044 ScrewScrew
-
2232061414 NutNut
-
3504141800 WasherWasher
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5420245370 WasherWasher
-
6417126512 Sliding pulley assy. Includes items 6 thru 9Sliding pulley assy. Includes items 6 thru 9
-
7415114400 RollerRoller
-
8415011200 BushingBushing
-
9414876600 Bushing garlockBushing garlock
-
10417126478 Fixed half pulley assyFixed half pulley assy
-
12417126391 Cam 44 degr.Cam 44 degr.
-
13414820800 KeyKey
-
14371903100 CirclipCirclip
-
15414558900 Spring, beigeSpring, beige
-
16504141900 Thrust washerThrust washer
-
19293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
2040089 Screw M8x75Screw M8x75
-
21517302322 WasherWasher
