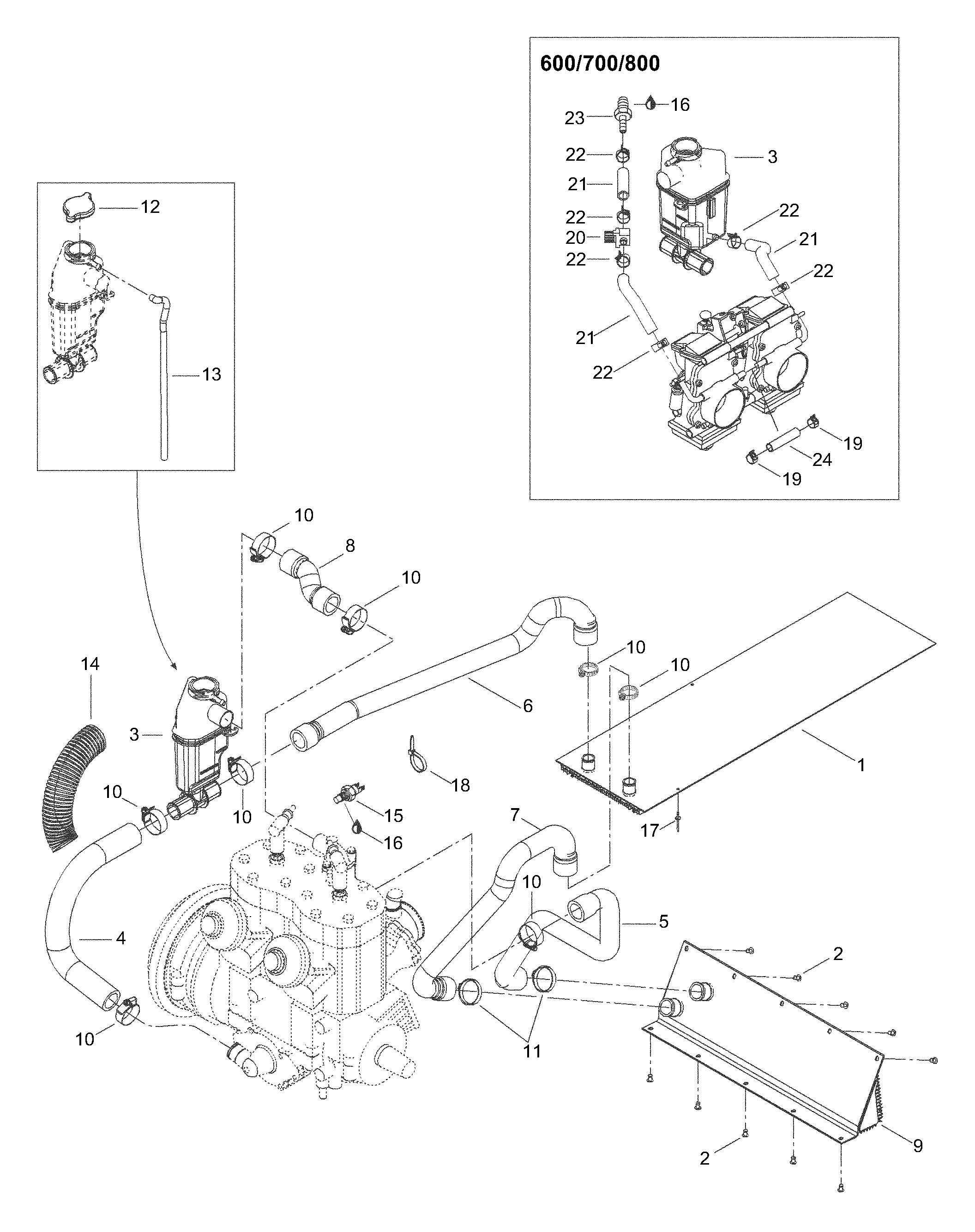

01- Radiator, Hoses для BRP Lynx Racing - 2001
-
№АртикулНазвание
-
15246130 RadiatorRadiator
-
236489 RivetRivet
-
3509000114 Coolant-tankCoolant-tank
-
4509000001 HoseHose
-
5509000002 Engine outlet hoseEngine outlet hose
-
65346350 Radiator inlet hoseRadiator inlet hose
-
75346349 HoseHose
-
8509000005 HoseHose
-
9517297100 Front radiatorFront radiator
-
10408800400 Hose clampHose clamp
-
11509000045 Hose clampHose clamp
-
12414684700 Cap pressureCap pressure
-
1339038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
14390003 Protective shieldProtective shield
-
15512047000 Sender temperatureSender temperature
-
16293800018 Loctite 592, 50mlLoctite 592, 50ml
-
1736083 RivetRivet
-
1827100 Tie rapTie rap
