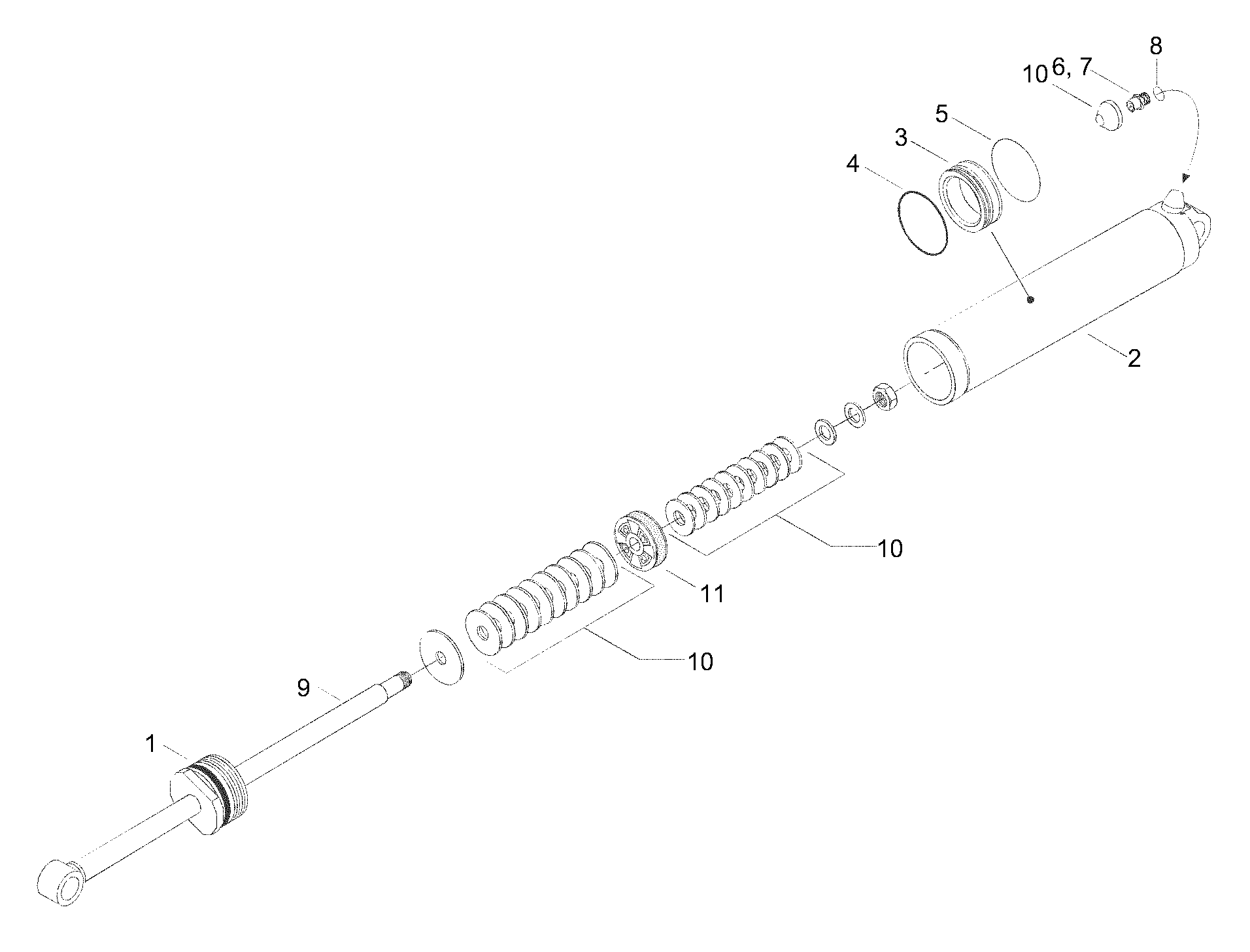

08- Rear Suspension для BRP Lynx Racing - 2001
-
№АртикулНазвание
-
5347346 Shock, centralShock, central
-
3503189008 Floating pistonFloating piston
-
4503189007 O-ringO-ring
-
5503189006 Piston ringPiston ring
-
6230061 Air valveAir valve
-
7230051 ScrewScrew
-
9230047 Rod assyRod assy
-
10503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
10503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
10503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
10503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
10503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
10503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
10503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
10503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
10503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
10503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
10503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
10503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
10503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
10503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
10503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
10503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
10503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
10503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
10503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
10230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
10230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
10230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
10230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
10230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
10503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
10503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
10503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
10230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
10230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
10230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
10503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
10503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
10503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
10230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
10230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
10230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
10230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
10503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
11230038 Piston 1.7 mmPiston 1.7 mm
-
11230039 Piston 2.0 mmPiston 2.0 mm
-
11230043 PistonPiston
-
11230044 Piston 1.2 mmPiston 1.2 mm
