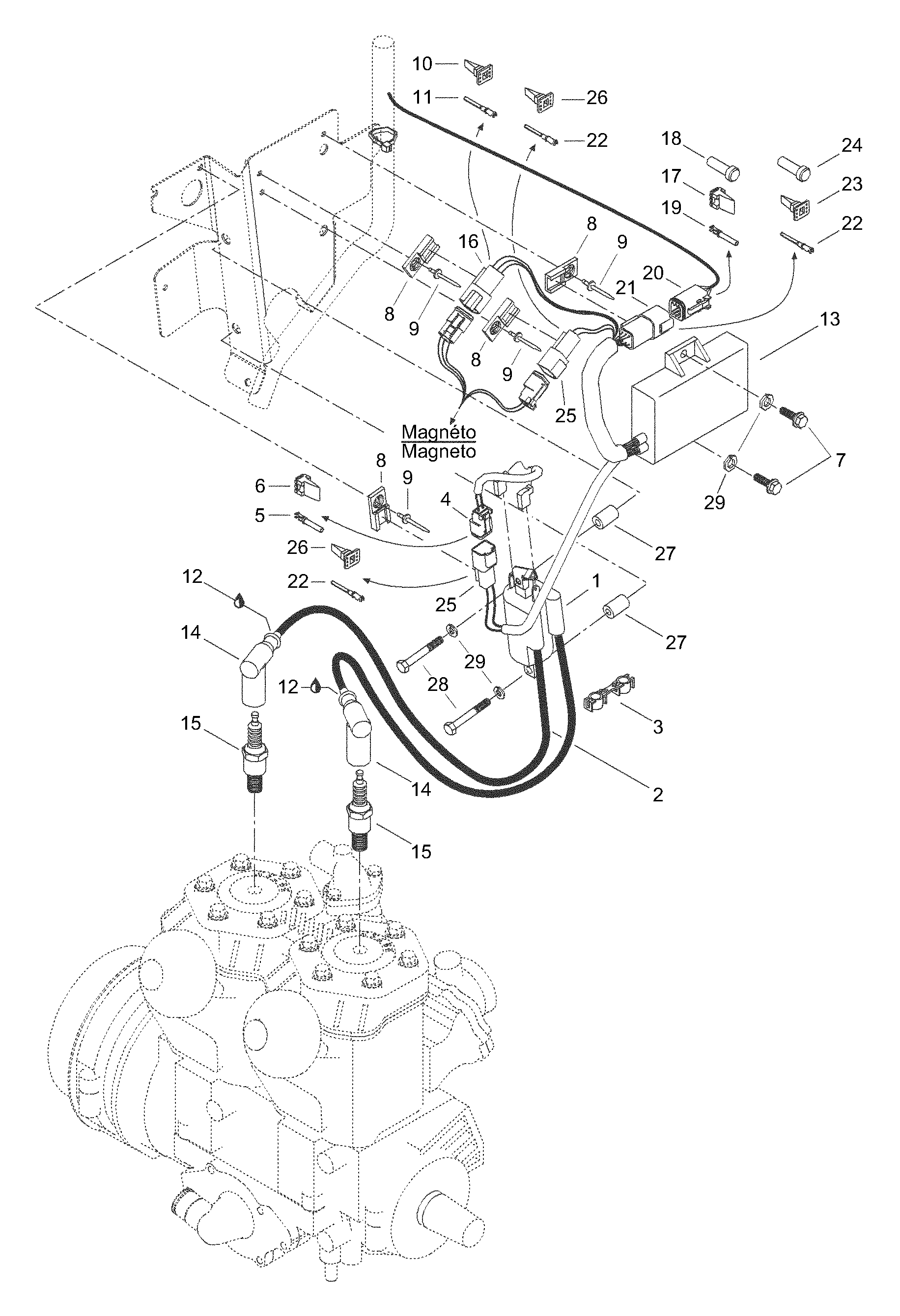

01- DPM для BRP Lynx Racing - 2001
-
№АртикулНазвание
-
1512059073 Ignition coil assy. Includes items 1 thru 6Ignition coil assy. Includes items 1 thru 6
-
2278001268 Spark plug wireSpark plug wire
-
3410914600 Plastic clipPlastic clip
-
4409207300 Female terminal housinFemale terminal housin
-
5278000632 Female terminalFemale terminal
-
6409207100 Female lock (2 circuits)Female lock (2 circuits)
-
740030 Screw M6x20Screw M6x20
-
8270000141 ClipClip
-
936005 RivetRivet
-
10710000046 Female lock (2 circuits)Female lock (2 circuits)
-
11409014800 Male terminalMale terminal
-
12293550004 Dielectric grease, 150gDielectric grease, 150g
-
13512059433 Calibration moduleCalibration module
-
14278000237 Spark plug protectorSpark plug protector
-
15414961100 Spark plug BR9ESSpark plug BR9ES
-
16710000045 Male terminal housinhMale terminal housinh
-
17278000737 Female lock (6 circuits)Female lock (6 circuits)
-
18293000052 Sealing capSealing cap
-
19278000632 Female terminalFemale terminal
-
20278000736 Female terminal housinFemale terminal housin
-
21270000137 Male terminal housingMale terminal housing
-
22278000631 Male terminalMale terminal
-
23278000735 Male lock (6 circuits)Male lock (6 circuits)
-
24515175303 PlugPlug
-
26409207500 Male lock (2 circuits)Male lock (2 circuits)
-
27544419 SleeveSleeve
-
2840084 Screw M6x45Screw M6x45
-
2920052 Spring washerSpring washer
