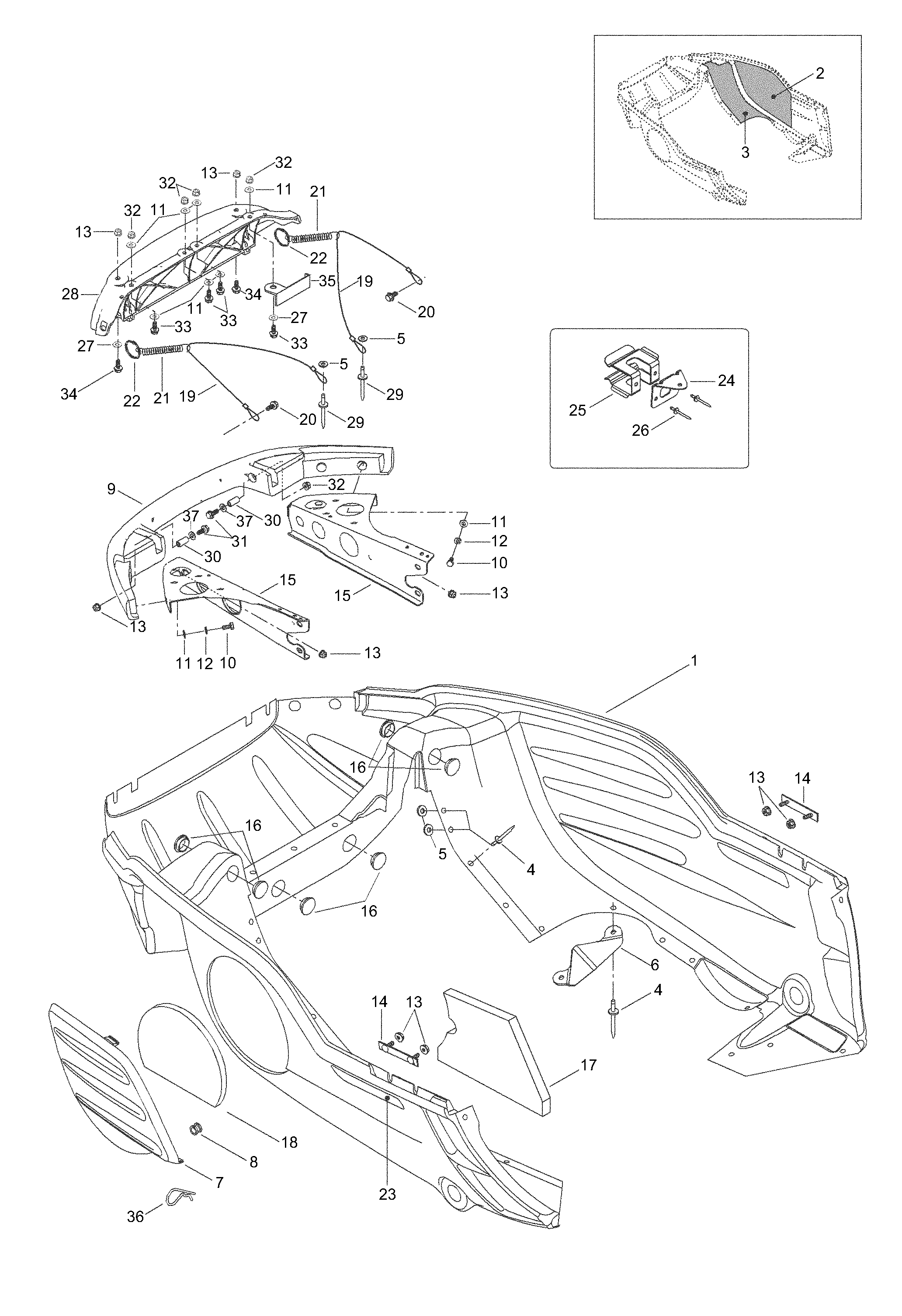

09- Bottom Pan для BRP Lynx Racing - 2001
-
№АртикулНазвание
-
15147337 Bottom pan, redBottom pan, red
-
2514052718 IsolationIsolation
-
3514052719 IsolationIsolation
-
436036 RivetRivet
-
520008 WasherWasher
-
6502006563 Deflector snowDeflector snow
-
7502006649 Bottom pan door, redBottom pan door, red
-
8414036300 GrommetGrommet
-
9502006650 Bumper, redBumper, red
-
1040029 Screw M6x16Screw M6x16
-
1120009 WasherWasher
-
1220052 Spring washerSpring washer
-
1333200 Elastic flange nut M6Elastic flange nut M6
-
14502006500 BracketBracket
-
15502006597 R.H. supportR.H. support
-
15502006596 L.H. supportL.H. support
-
16414916600 Nylon capNylon cap
-
17502006558 Bottom foamBottom foam
-
18502006559 Bottom pan door foamBottom pan door foam
-
19549882 Retainer cableRetainer cable
-
2040177 Hex. tapping screwHex. tapping screw
-
21415043300 SpringSpring
-
22415058300 RingRing
-
23415064400 R.H. reflector, yellowR.H. reflector, yellow
-
23415064401 L.H. reflector, yellowL.H. reflector, yellow
-
24502006599 BracketBracket
-
25517281905 Belt supportBelt support
-
2636005 RivetRivet
-
2720117 Washer, blackWasher, black
-
28517302004 Hinge-halfHinge-half
-
2936036 RivetRivet
-
30517302179 SleeveSleeve
-
3140003 Screw M6x35Screw M6x35
-
3233010 Nut elastic M6Nut elastic M6
-
3340030 Screw M6x20Screw M6x20
-
3440381 Allen screw M6x20Allen screw M6x20
-
355447082 L.H. BracketL.H. Bracket
-
355447083 R.H. BracketR.H. Bracket
-
36414575600 PinPin
-
3720003 WasherWasher
