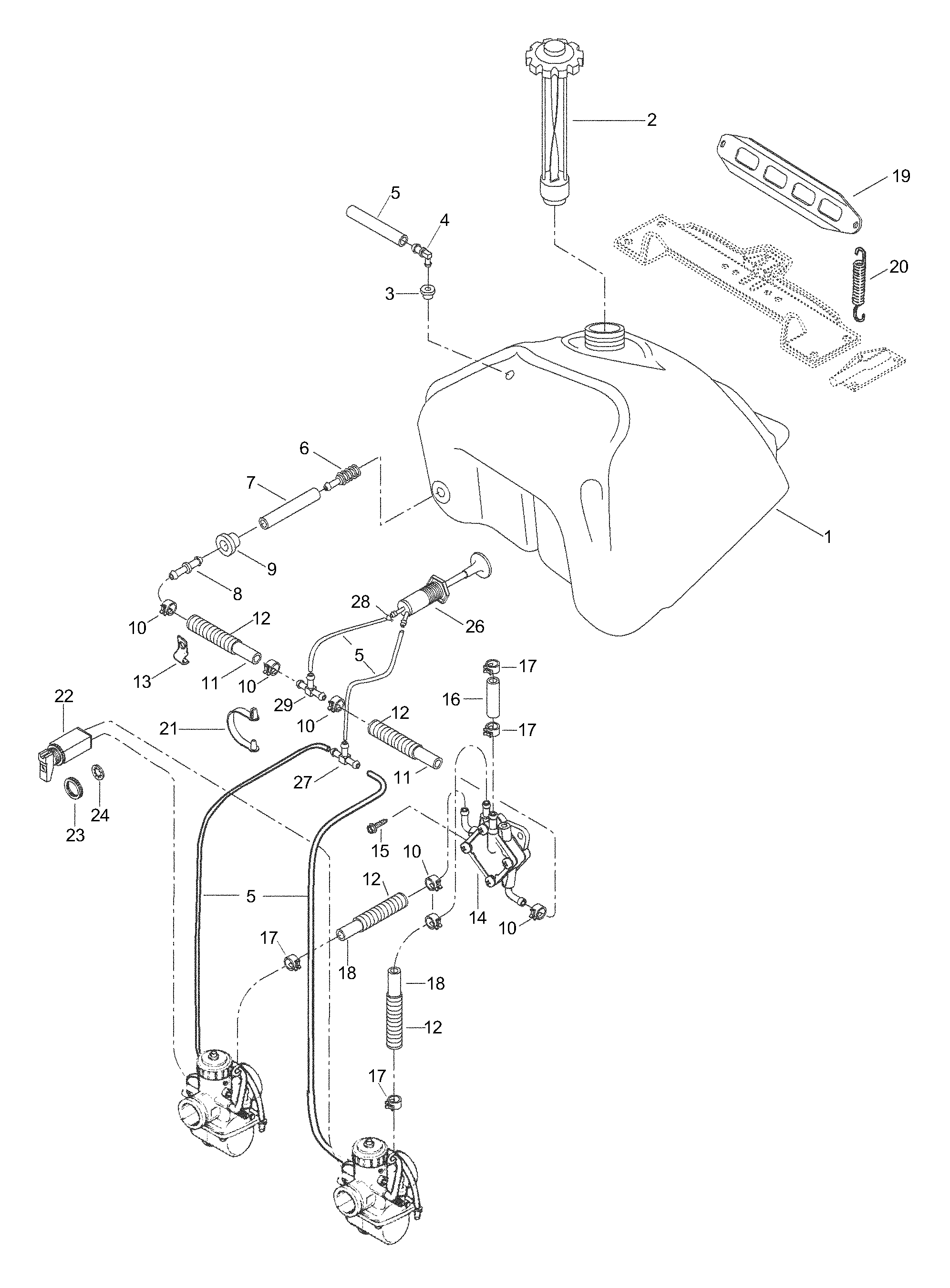

02- Fuel Tank для BRP Lynx Safari 400 - 2001
-
№АртикулНазвание
-
1572108900 Fuel tankFuel tank
-
2572161200 Fuel tank capFuel tank cap
-
3570135100 GrommetGrommet
-
4414814100 Male connectorMale connector
-
539035 Hose 5/3Hose 5/3
-
6414865700 Fuel filterFuel filter
-
739030 Fuel line 8/5Fuel line 8/5
-
8414518500 Male connectorMale connector
-
9570045500 GrommetGrommet
-
10414554800 ClampClamp
-
1139004 Fuel line 8/5Fuel line 8/5
-
1228012 TubingTubing
-
13415018200 ClipClip
-
14403801000 Fuel pumpFuel pump
-
1540322 Screw M6x16Screw M6x16
-
1639001 Fuel line 11/6Fuel line 11/6
-
17414420700 ClampClamp
-
1839060 Fuel line 8/5.5Fuel line 8/5.5
-
19517249200 Fuel tank supportFuel tank support
-
20415107100 FjaderFjader
-
21414379300 Cable clipCable clip
-
26415060500 PrimerPrimer
-
2721062 T-fittingT-fitting
-
28543230 ClampClamp
-
2921067 T-fittingT-fitting
