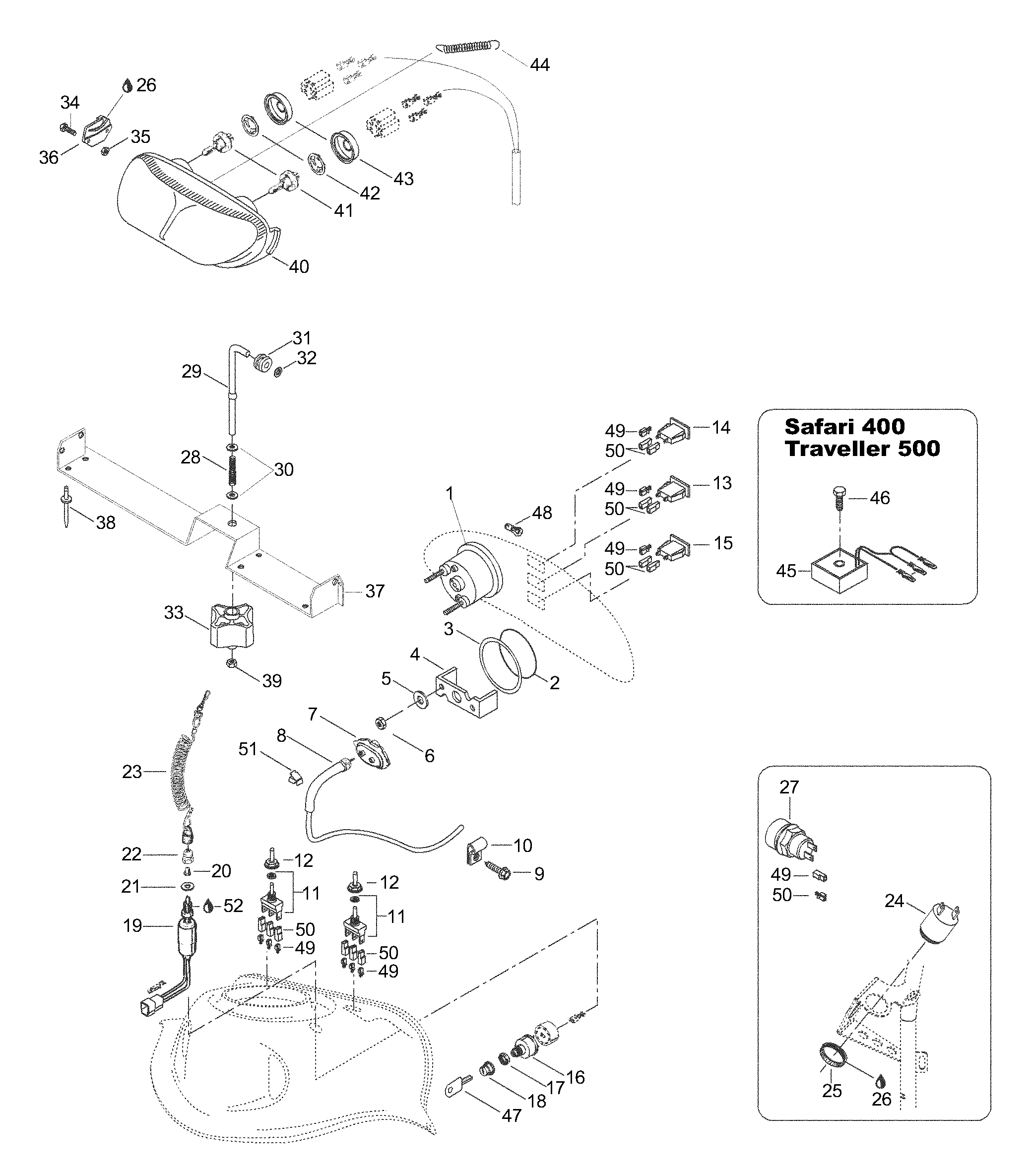

10- Electric для BRP Lynx Safari 400 - 2001
-
№АртикулНазвание
-
1515175335 Speedometer assySpeedometer assy
-
2414807100 O-ringO-ring
-
3517258500 WasherWasher
-
4414806500 Housing supportHousing support
-
520002 WasherWasher
-
633009 Nut elastic M5Nut elastic M5
-
7515175400 Drive AngleDrive Angle
-
8414761400 Speedometer cableSpeedometer cable
-
940870 ScrewScrew
-
10414176000 ClipClip
-
11410107300 SwitchSwitch
-
12515175281 Switch coverSwitch cover
-
13410109500 Pilot lamp, redPilot lamp, red
-
14410109600 Pilot lamp, bluePilot lamp, blue
-
15410113400 Pilot-lamp (reverse)Pilot-lamp (reverse)
-
1642019 Ignition switchIgnition switch
-
17410112100 Switch nutSwitch nut
-
18570013700 Switch bootSwitch boot
-
19515175369 Brake switchBrake switch
-
20570151100 Plunger capPlunger cap
-
2120005 WasherWasher
-
22515145900 Switch nutSwitch nut
-
23515151500 Switch cap assySwitch cap assy
-
24415060900 HornHorn
-
25414805101 Plastic nutPlastic nut
-
26293800033 Silicone sealantSilicone sealant
-
27415101200 Reverse knobReverse knob
-
2825042 SpringSpring
-
295445735 Grip of Head LightGrip of Head Light
-
3020009 WasherWasher
-
31415100800 GrommetGrommet
-
32732610072 Nut pushNut push
-
33515175548 HandleHandle
-
3440366 Screw M5x16Screw M5x16
-
3533009 Nut elastic M5Nut elastic M5
-
36517289400 R.H. supportR.H. support
-
36517289300 L.H. supportL.H. support
-
375345290 Head Lamp HolderHead Lamp Holder
-
3836037 RivetRivet
-
3933010 Nut elastic M6Nut elastic M6
-
40515175158 HeadlampHeadlamp
-
4142263 BulpBulp
-
42410608300 Bulb holderBulb holder
-
43410607100 CoverCover
-
445445737 SpringSpring
-
45515163800 Voltage regulatorVoltage regulator
-
4640868 Screw M6x40Screw M6x40
-
47414991700 KeyKey
-
48410504200 BulpBulp
-
49409010400 Male terminalMale terminal
-
50409010100 Connector housingConnector housing
-
51414227300 ClampClamp
-
52293550004 Dielectric grease, 150 gDielectric grease, 150 g
