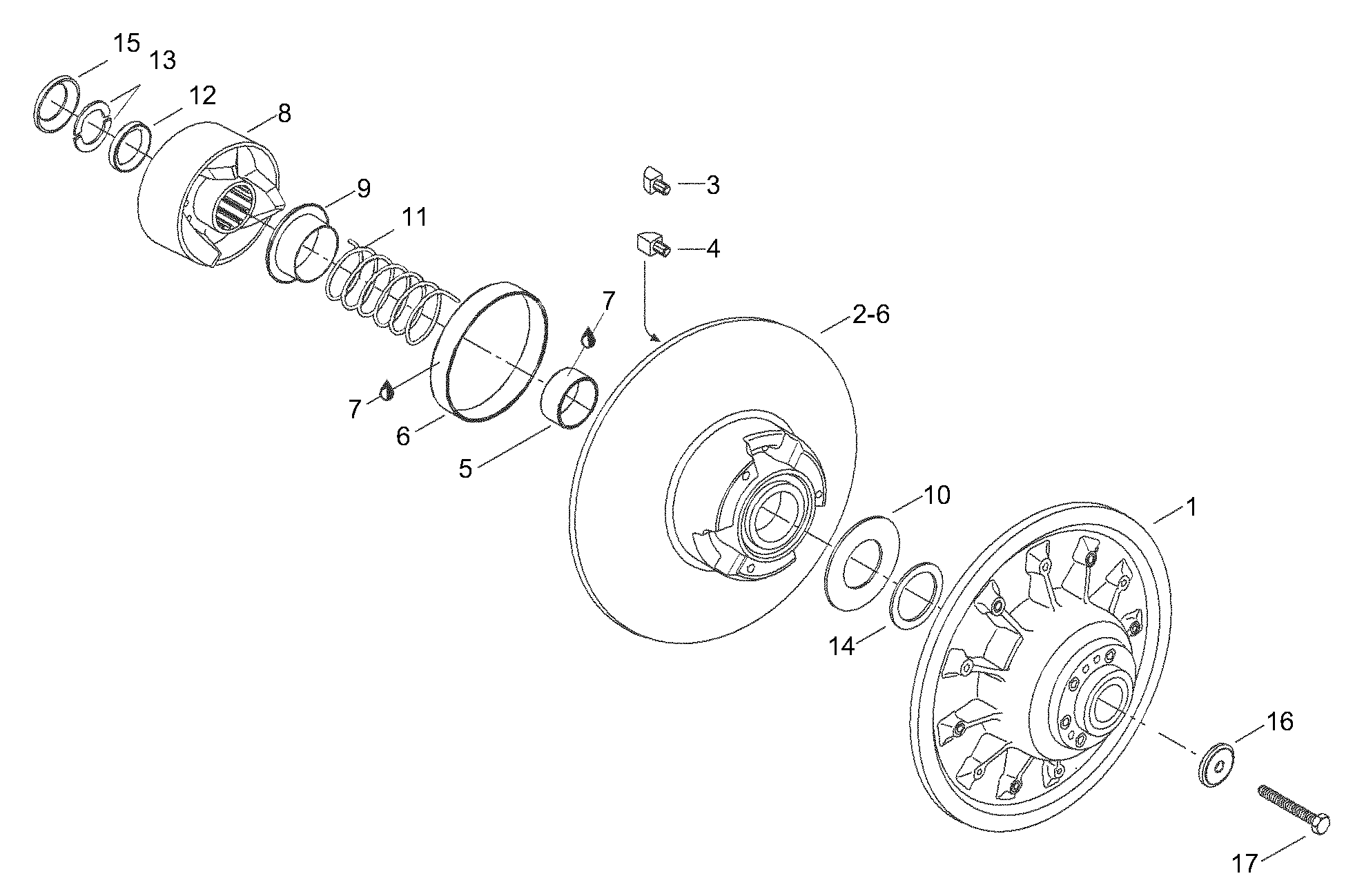

05- Driven Pulley для BRP Lynx Safari 400 - 2001
-
№АртикулНазвание
-
1417126401 Fixed flange assyFixed flange assy
-
2417126403 Sliding flange assy. Includes items 2 thru 6Sliding flange assy. Includes items 2 thru 6
-
3417126373 Front cam shoe slide,Front cam shoe slide,
-
4417126374 Front cam shoe slide, BFront cam shoe slide, B
-
5415092600 BushingBushing
-
6415092700 BushingBushing
-
7413703100 Loctite 609, 10mlLoctite 609, 10ml
-
8417124700 Cam 47-44Cam 47-44
-
9415006000 GuardGuard
-
10504099600 Stopper washerStopper washer
-
11415092800 Spring, yellowSpring, yellow
-
12417126368 SpacerSpacer
-
13371911000 Half keyHalf key
-
14504112300 ShimShim
-
15417300055 ProtectorProtector
-
16517302322 WasherWasher
-
1740012 Screw M8x80Screw M8x80
