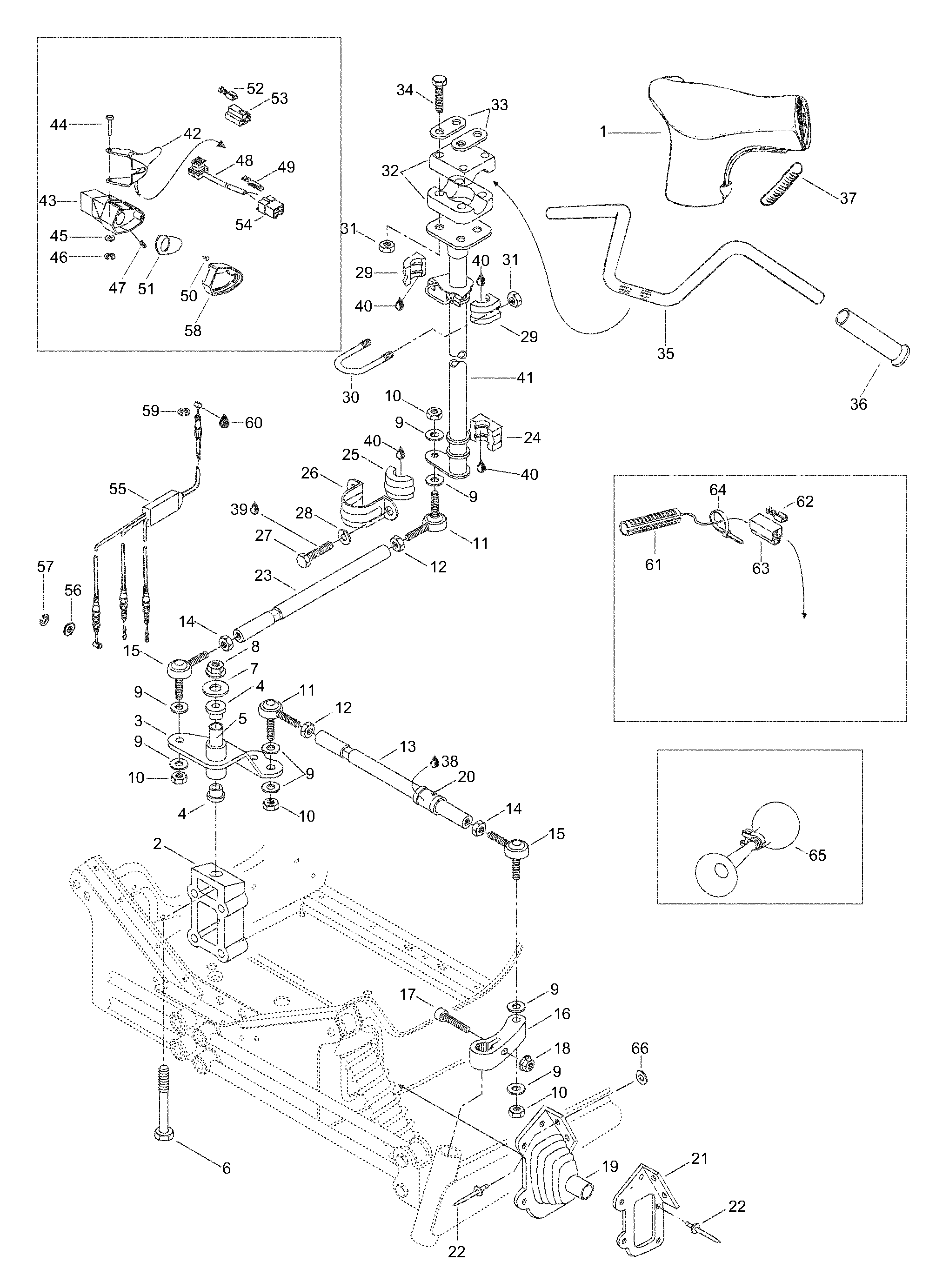

07- Steering для BRP Lynx Safari 400 - 2001
-
№АртикулНазвание
-
1514526900 Steering paddingSteering padding
-
2506121400 BlockBlock
-
3506133800 Pivot armPivot arm
-
4415041100 SleeveSleeve
-
5415038000 SleeveSleeve
-
640359 Screw M12x85Screw M12x85
-
7506136400 WasherWasher
-
833013 Nut elastic M12Nut elastic M12
-
9503175800 WasherWasher
-
1033023 Nut elastic M10Nut elastic M10
-
11414768100 L.H. Ball jointL.H. Ball joint
-
12732610011 Nut M10Nut M10
-
13506136000 Tie rodTie rod
-
14732610010 Nut M10Nut M10
-
15414768000 R.H. Ball jointR.H. Ball joint
-
16506144800 R.H. Steering armR.H. Steering arm
-
16506144900 L.H. Steering armL.H. Steering arm
-
1740828 Allen screw M8x35Allen screw M8x35
-
1833201 Nut elastic M8Nut elastic M8
-
19570024800 R.H. tie rod capR.H. tie rod cap
-
19570024900 L.H. tie rod capL.H. tie rod cap
-
20572036500 BushingBushing
-
21517241200 R.H. plate capR.H. plate cap
-
21517241300 L.H. plate capL.H. plate cap
-
22390402200 RivetRivet
-
23506110800 Tie rodTie rod
-
24572064400 SleeveSleeve
-
25572064500 SleeveSleeve
-
26517126200 Retaining supportRetaining support
-
2740036 Screw M8x20Screw M8x20
-
2820014 Spring washerSpring washer
-
29572067100 Half bushingHalf bushing
-
30506060600 U-clampU-clamp
-
3133011 Nut elastic M8Nut elastic M8
-
32277000142 Steering clampSteering clamp
-
33506151196 ReinforcementReinforcement
-
3440010 Screw M8x55Screw M8x55
-
35506125900 Handle barHandle bar
-
365340464 Handle gripHandle grip
-
37572072400 keywaykeyway
-
38293550014 GreaseGrease
-
39293800005 Loctite 271, 10mlLoctite 271, 10ml
-
40413711500 Synthetic greaseSynthetic grease
-
41506151114 Main tubeMain tube
-
42512059145 Throttle leverThrottle lever
-
43512059334 Throttle handle hous.Throttle handle hous.
-
44414438700 Lever pinLever pin
-
45414438900 WasherWasher
-
46414439000 CirclipCirclip
-
47414440800 ScrewScrew
-
48512059146 Kill switchKill switch
-
49409210000 Male connectorMale connector
-
50414473200 ScrewScrew
-
51572099400 PlatePlate
-
52515175253 Female terminalFemale terminal
-
53409008500 Female connectorFemale connector
-
54409209300 Male connectorMale connector
-
55414883100 Throttle cableThrottle cable
-
56414753300 WasherWasher
-
57414753500 CirclipCirclip
-
58572044600 Throttle coverThrottle cover
-
59414274500 CirclipCirclip
-
60293550004 GreaseGrease
-
61515175387 HeaterHeater
-
62515175252 Female terminalFemale terminal
-
63409204300 Female connectorFemale connector
-
6427100 Tie rapTie rap
-
6521003 HornHorn
-
66517124300 WasherWasher
