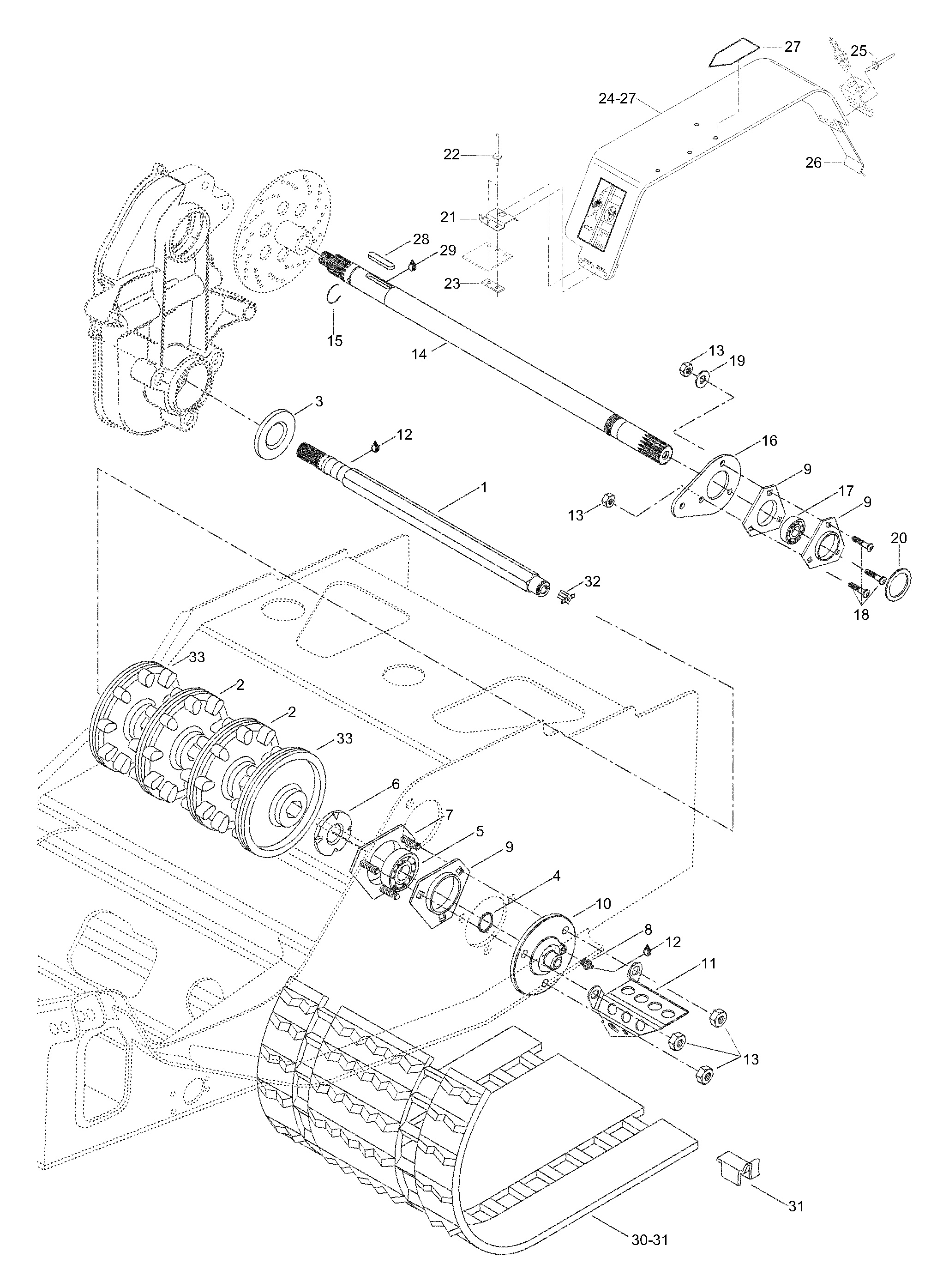

05- Drive Axle для BRP Lynx Safari 400 - 2001
-
№АртикулНазвание
-
1504151714 Drive axleDrive axle
-
2414882600 Sprocket, 9-teethSprocket, 9-teeth
-
3581101700 Oil sealOil seal
-
4371910200 CirclipCirclip
-
5405408600 BearingBearing
-
6501017400 Ball bearing protectorBall bearing protector
-
7504151860 Ball bearing housingBall bearing housing
-
834011 Grease fittingGrease fitting
-
9501025000 FlangeFlange
-
10504151836 FlangeFlange
-
11517290100 Cable protectorCable protector
-
12413711500 Synthetic greaseSynthetic grease
-
1333011 Nut elastic M8Nut elastic M8
-
14504151747 Counter shaftCounter shaft
-
15371910000 CirclipCirclip
-
16501022300 SpacerSpacer
-
17405408300 BearingBearing
-
1840344 Screw M8x25Screw M8x25
-
1920004 WasherWasher
-
20417300054 ShimShim
-
21518314200 BracketBracket
-
2236489 RivetRivet
-
23518207500 SupportSupport
-
24417300012 Belt guard. Includes items 24 thru 27Belt guard. Includes items 24 thru 27
-
25390402200 RivetRivet
-
26414941800 Tool box springTool box spring
-
27516000132 Warning labelWarning label
-
28507021300 KeyKey
-
29293800023 Loctite 767Loctite 767
-
30504151935 Track. Includes items 30 thru 31Track. Includes items 30 thru 31
-
31500003400 Guide cleatGuide cleat
-
32572010100 Insert-speedoInsert-speedo
