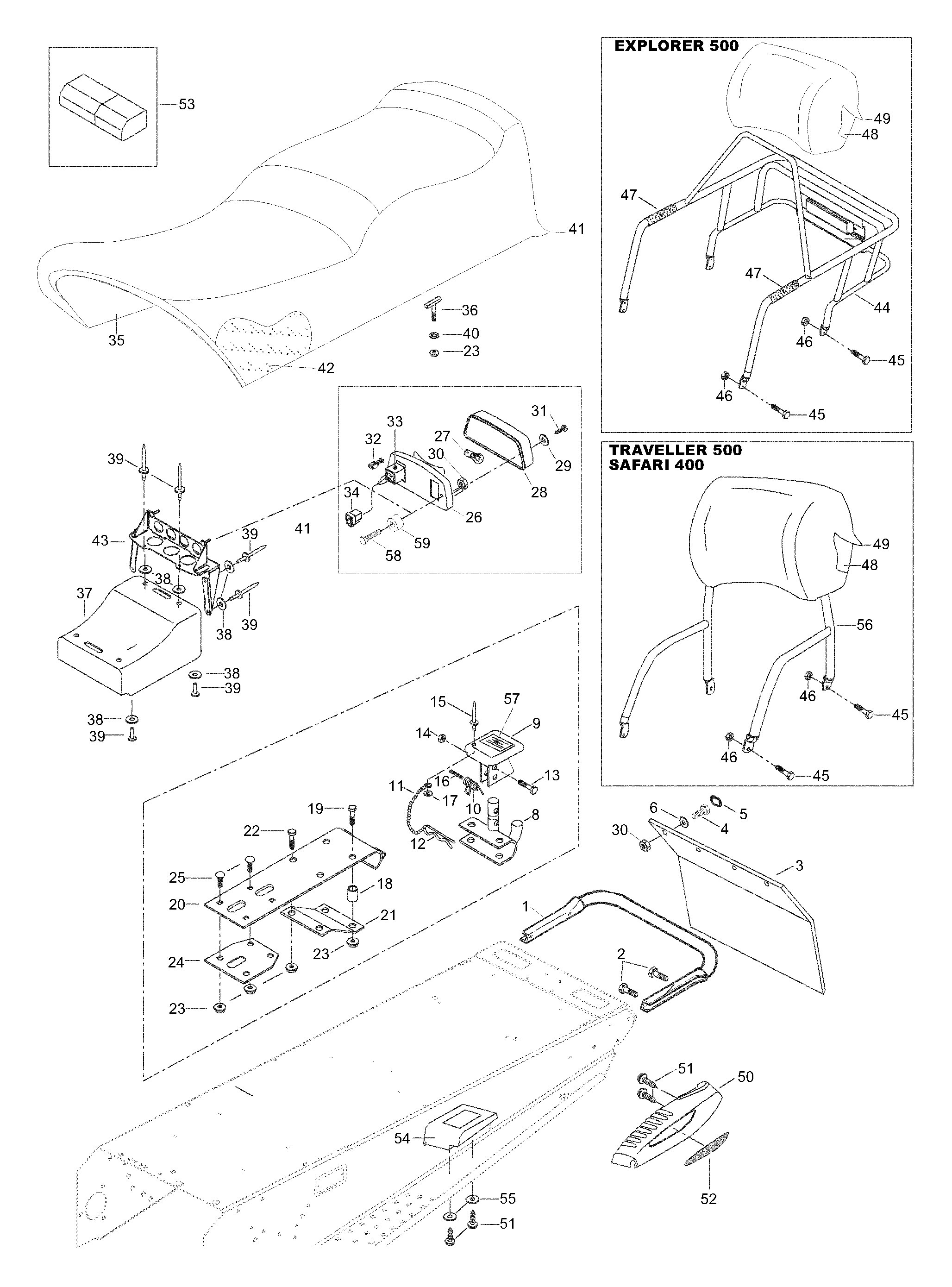

09- Body для BRP Lynx Safari 400 - 2001
-
№АртикулНазвание
-
1517243800 Rear bumperRear bumper
-
240336 Screw M8x20Screw M8x20
-
35246859 SnowguardSnowguard
-
440078 Screw M6x22Screw M6x22
-
5415073300 CapCap
-
620009 WasherWasher
-
2333200 Nut M6Nut M6
-
26414513600 Tail lamp housingTail lamp housing
-
27410504000 BulpBulp
-
28414513700 LensLens
-
29414516400 WasherWasher
-
3033062 Elastic flanged nut M5Elastic flanged nut M5
-
3140613 ScrewScrew
-
33515175250 Dimmer switch blockDimmer switch block
-
35510003597 Seat subSeat sub
-
36732601221 T-screwT-screw
-
37572051200 Rear trunkRear trunk
-
38234051410 WasherWasher
-
3936036 RivetRivet
-
40732610072 Nut pushNut push
-
415245234 Seat coverSeat cover
-
425145788 Seat foamSeat foam
-
43517264500 Lens rear supportLens rear support
-
4540882 ScrewScrew
-
4633201 Nut elastic M8Nut elastic M8
-
48539399 Back rest stoppningBack rest stoppning
-
495340917 Back rest coverBack rest cover
-
50572092200 R.H. molding assyR.H. molding assy
-
50572092300 L.H. molding assyL.H. molding assy
-
5140870 ScrewScrew
-
52516000241 R.H. rear reflectorR.H. rear reflector
-
52516000242 L.H. rear reflectorL.H. rear reflector
-
535445402 Tool box (with tools)Tool box (with tools)
-
54572088700 R.H. footrestR.H. footrest
-
54572088800 L.H. footrestL.H. footrest
-
55224061121 WasherWasher
-
565246057 BackrestBackrest
