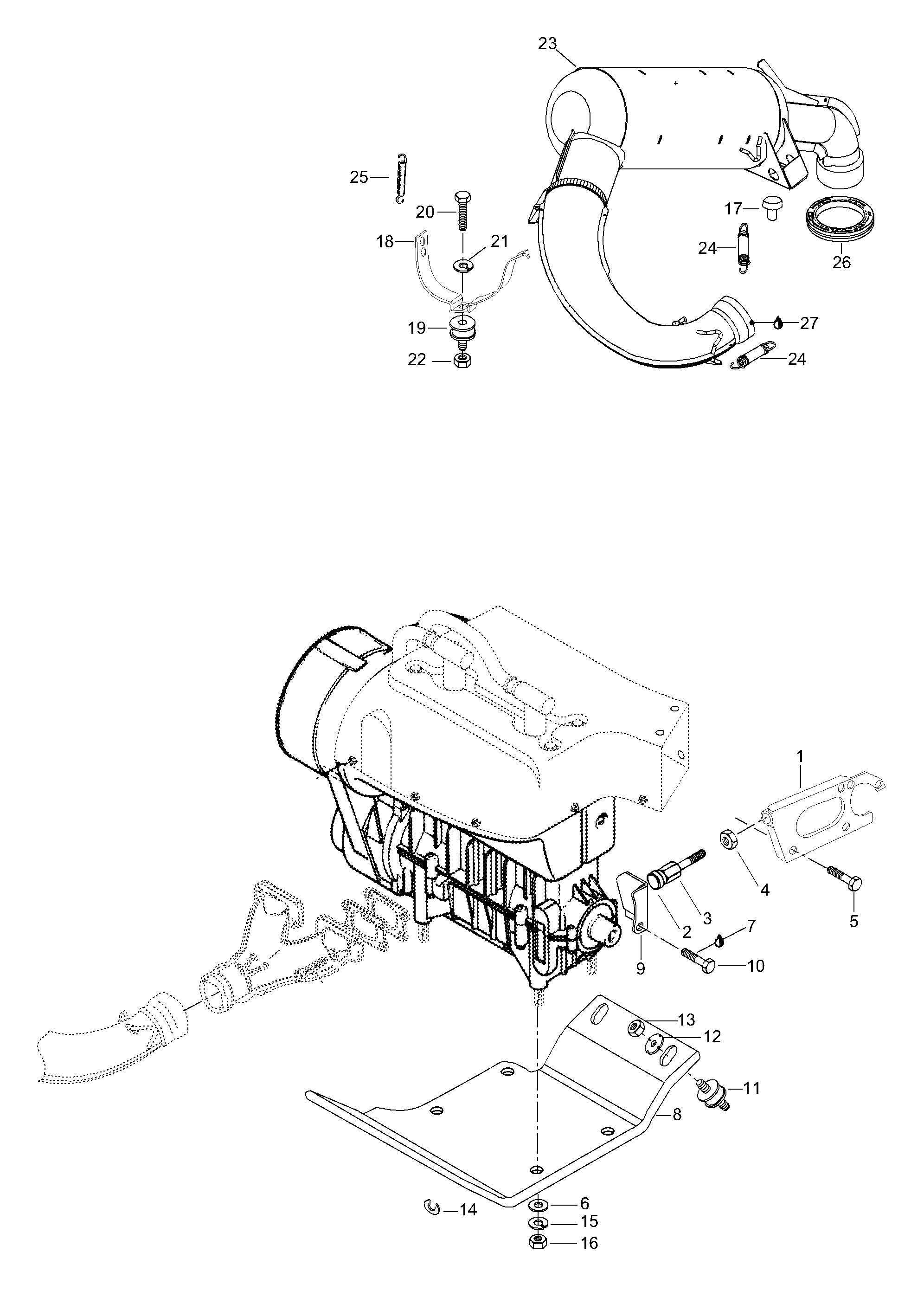

01- Engine Mount Plate/Muffler для BRP Lynx Forest - 2003
-
№АртикулНазвание
-
15346583 Support plateSupport plate
-
2570025100 Rod retainerRod retainer
-
3517244200 ScrewScrew
-
433063 Nut M12Nut M12
-
540327 Self tapping screw M6xSelf tapping screw M6x
-
620105 Washer, hardenedWasher, hardened
-
7293800060 Loctite 243, 10mlLoctite 243, 10ml
-
85246291 Engine mount.plateEngine mount.plate
-
95344446 Stopper plateStopper plate
-
1040035 Screw M8x16Screw M8x16
-
11570127700 Rubber mountRubber mount
-
12512056700 Lock washerLock washer
-
1333012 Nut M10Nut M10
-
14546221 Shim washerShim washer
-
1520047 WasherWasher
-
1633004 Nut M10Nut M10
-
17570044700 Rubber bumperRubber bumper
-
18535108 Support, mufflerSupport, muffler
-
1928245 Rubber stopperRubber stopper
-
2040034 Screw M8x10Screw M8x10
-
2120014 Lock washerLock washer
-
2233011 Nut elastic M8Nut elastic M8
-
23420979824 MufflerMuffler
-
24420938795 SpringSpring
-
25543225 SpringSpring
-
26570039000 Exhaust grommetExhaust grommet
-
27413710300 Gasket siliconeGasket silicone
-
2820077 WasherWasher
