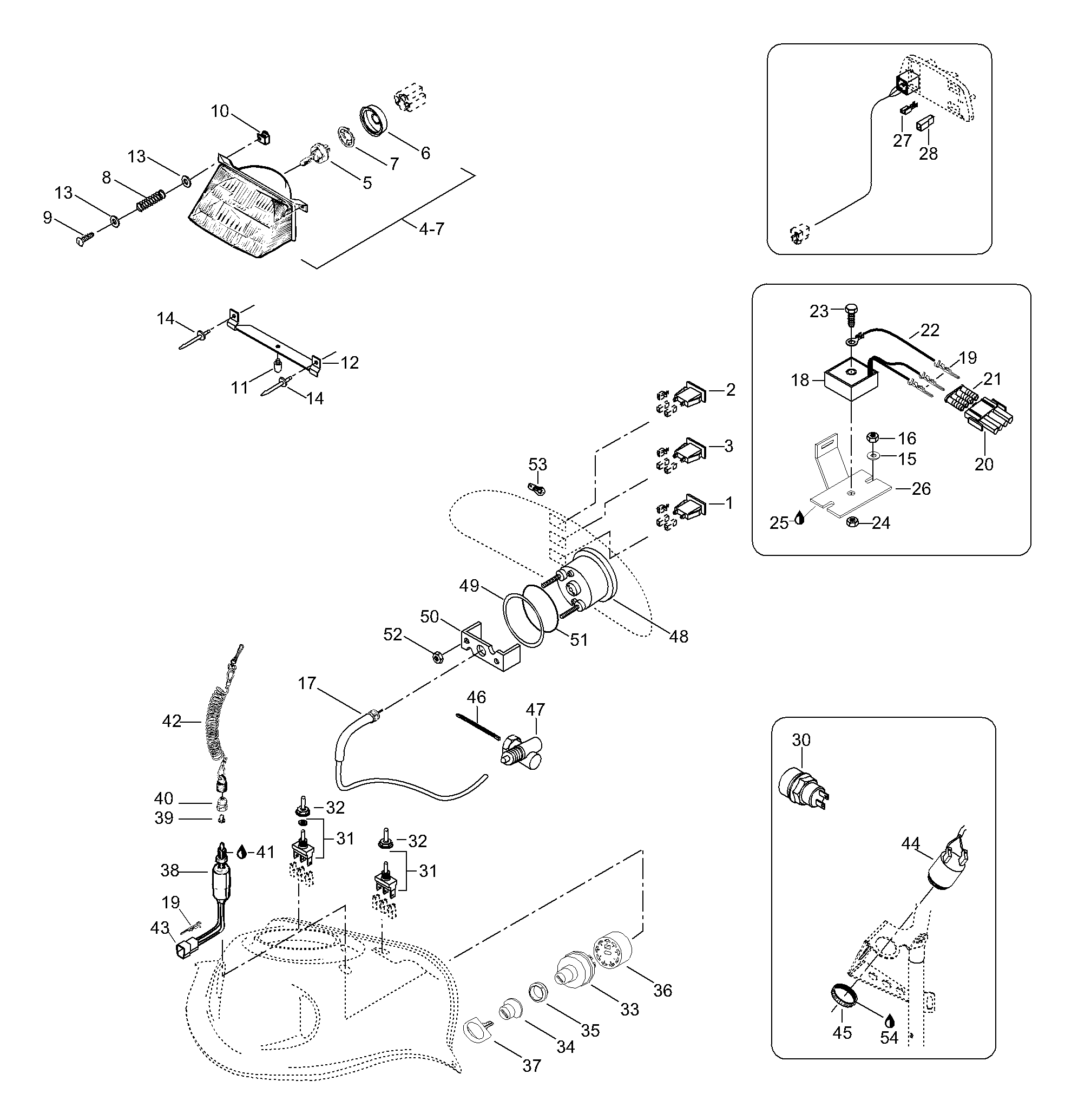

10- Electric для BRP Lynx Forest - 2003
-
№АртикулНазвание
-
1410113400 Pilot-lamp (reverse)Pilot-lamp (reverse)
-
2410109600 Pilot lamp, bluePilot lamp, blue
-
3410109500 Pilot lamp, redPilot lamp, red
-
4410609300 Headlamp assy. Includes items 4 thru 7Headlamp assy. Includes items 4 thru 7
-
5410503700 BulpBulp
-
6410607100 CoverCover
-
7410608300 Bulp halderBulp halder
-
8517168600 SpringSpring
-
9243244040 Screw M4x40Screw M4x40
-
10572078600 Lamp nutLamp nut
-
11410608200 Rubber bumperRubber bumper
-
12539864 Lamp supportLamp support
-
1320002 WasherWasher
-
1436489 RivetRivet
-
1520009 WasherWasher
-
1633010 Nut elastic M6Nut elastic M6
-
1745006 Speedometer cableSpeedometer cable
-
185446342 Voltage regulator. Includes items 18 thru 22Voltage regulator. Includes items 18 thru 22
-
1942603 Male terminalMale terminal
-
2042604 Connector housingConnector housing
-
2142605 SealingSealing
-
225446642 Ground wireGround wire
-
2340003 Screw M6x35Screw M6x35
-
2433200 Elastic flanged nut M6Elastic flanged nut M6
-
25413707500 Litium-greaseLitium-grease
-
265346798 Cooling plateCooling plate
-
2742178 Male terminalMale terminal
-
2842179 Connector housingConnector housing
-
2928012 TubingTubing
-
30415101200 Reverse knobReverse knob
-
31410107300 SwitchSwitch
-
32515175281 Switch coverSwitch cover
-
3342019 Ignition switchIgnition switch
-
34570013700 Switch bootSwitch boot
-
35410112100 Switch nutSwitch nut
-
36572150700 Ignition switch blockIgnition switch block
-
37414991700 KeyKey
-
38515175571 Brake switchBrake switch
-
39570151100 Plunger capPlunger cap
-
40515145900 Switch nutSwitch nut
-
41293550004 Dielectric silicone, 154Dielectric silicone, 154
-
42515151500 Switch cap assySwitch cap assy
-
4342268 Connector housingConnector housing
-
44415060900 HornHorn
-
45414805101 Plastic nutPlastic nut
-
4645075 InsertInsert
-
4735021 Gear UnitGear Unit
-
48515175335 Speedometer assy, WHSpeedometer assy, WH
-
49517258500 WasherWasher
-
50414806500 Housing supportHousing support
-
51414807100 O-ringO-ring
-
5233062 Elastic flanged nut M5Elastic flanged nut M5
-
53410504200 BulpBulp
-
54293800033 Silicone sealantSilicone sealant
