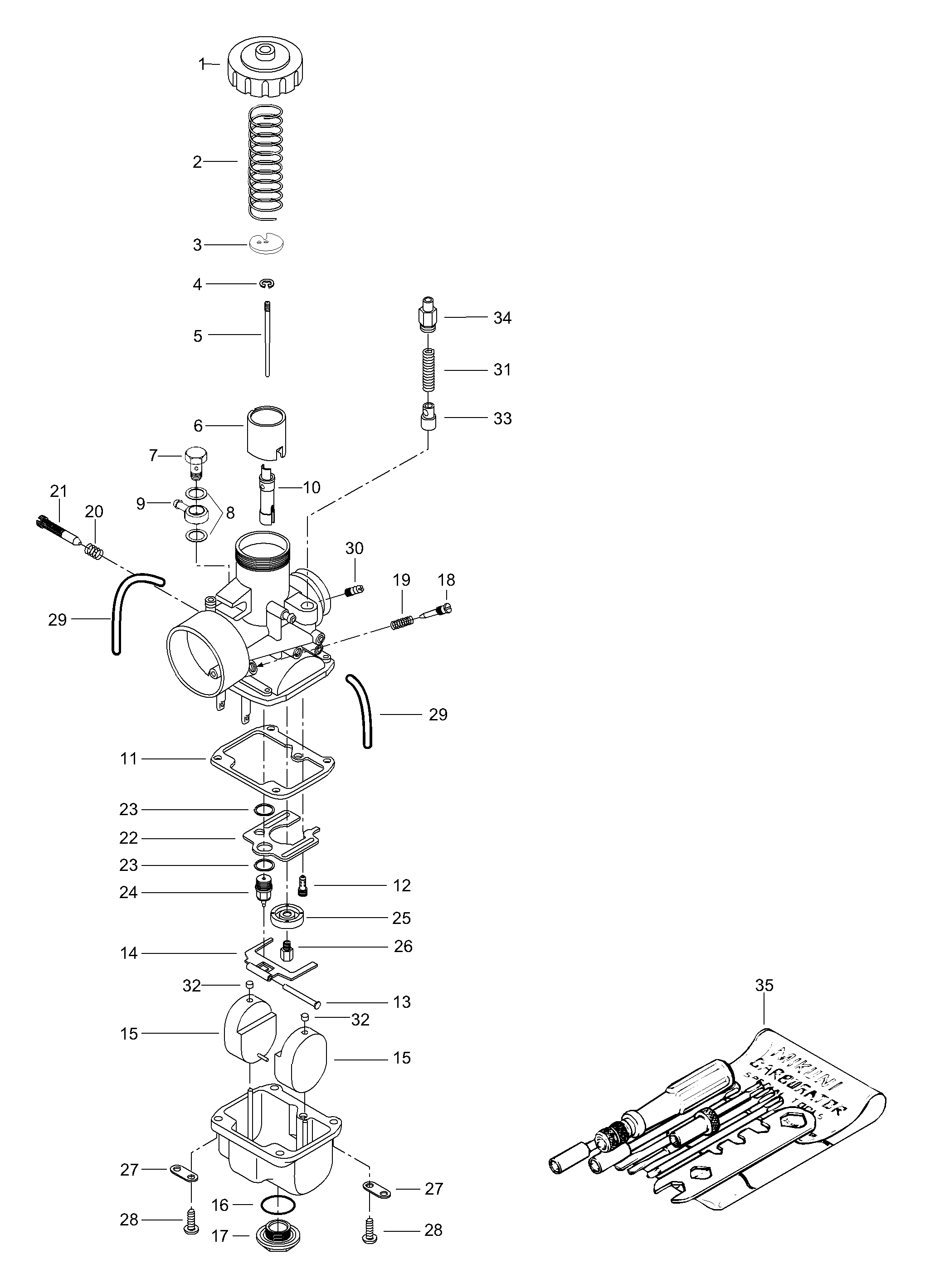

02- Carburetor для BRP Lynx Forest - 2003
-
№АртикулНазвание
-
1404103700 CoverCover
-
2404154800 Throttle vale springThrottle vale spring
-
3404103800 Fitting connectorFitting connector
-
4404152400 E-ringE-ring
-
5404161978 Jet needle 6DGY12-3Jet needle 6DGY12-3
-
6420963932 Throttle valve CA 3.0Throttle valve CA 3.0
-
8270500025 WasherWasher
-
9404130000 Banjo-fittingBanjo-fitting
-
10404130200 Needle jet NJ159O-0Needle jet NJ159O-0
-
11404104200 Gasket panGasket pan
-
12404109500 Pilot jet PJ 50Pilot jet PJ 50
-
13404103300 Lever pinLever pin
-
14404107600 Float leverFloat lever
-
15404107100 FloatFloat
-
16404107300 WasherWasher
-
17404107400 Drain plug screwDrain plug screw
-
18404149000 Air screwAir screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404125200 Throttle stop screwThrottle stop screw
-
22404109600 BaffleBaffle
-
23404101600 Washer-seatWasher-seat
-
24404103200 Needle valve 1.5Needle valve 1.5
-
25404110900 Screw guideScrew guide
-
26404119500 Main jet MJ 185Main jet MJ 185
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw and lock washerScrew and lock washer
-
29404161880 Air Vent tubeAir Vent tube
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404105800 CapCap
-
33404161000 Plunger assyPlunger assy
-
34404161100 Support guideSupport guide
-
35404112000 Tool kitTool kit
