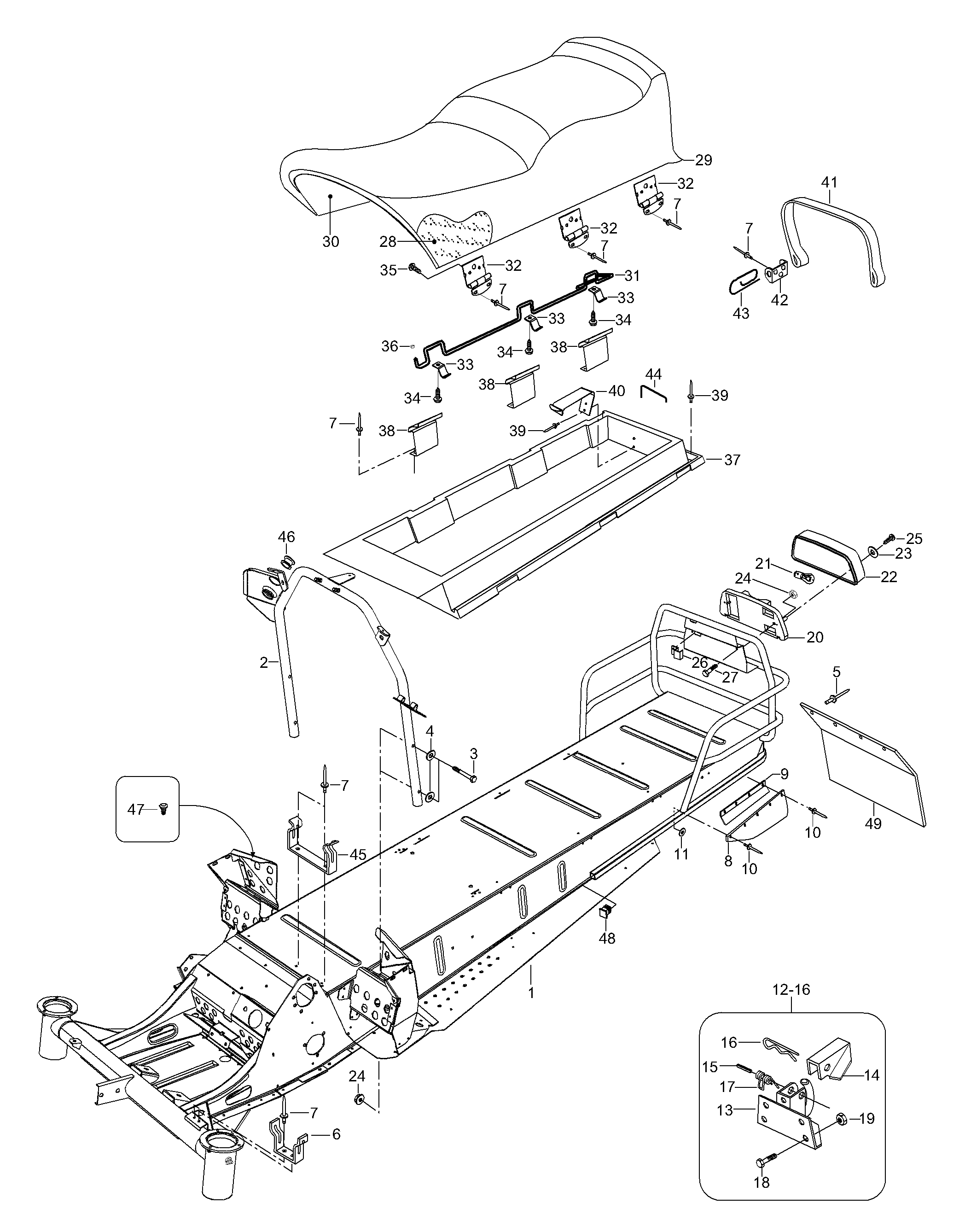

09- Frame для BRP Lynx Forest - 2003
-
№АртикулНазвание
-
1605148752 Frame assy. Includes items 1 thru 4Frame assy. Includes items 1 thru 4
-
25245059 Handle steering supportHandle steering support
-
340002 Screw M6x40Screw M6x40
-
420003 WasherWasher
-
536037 RivetRivet
-
6518202100 Pulley guard bracketPulley guard bracket
-
736083 RivetRivet
-
85142828 Snow guard, sideSnow guard, side
-
95346740 R.H. ReinforcementR.H. Reinforcement
-
95346741 L.H. ReinforcementL.H. Reinforcement
-
1036097 RivetRivet
-
1120037 WasherWasher
-
125344156 Hitch assy. Includes items 12 thru 17Hitch assy. Includes items 12 thru 17
-
135344208 Fitting PlateFitting Plate
-
145440767 LockLock
-
1541012 Cotter pinCotter pin
-
1641029 PinPin
-
17545693 SpringSpring
-
1840336 Screw M8x20Screw M8x20
-
1933011 Nut elastic M8Nut elastic M8
-
205341214 Tail lamp assy. Includes items 20 thru 25Tail lamp assy. Includes items 20 thru 25
-
20414979400 Tail lamp housingTail lamp housing
-
21410504000 BulpBulp
-
22414513700 LensLens
-
23414516400 WasherWasher
-
2433200 Nut M6Nut M6
-
2540613 ScrewScrew
-
26605448415 CoverCover
-
2740032 Screw M6x30Screw M6x30
-
285145106 FoamFoam
-
29605148730 CoverCover
-
305144962 Seat baseSeat base
-
315245337 Locking shaftLocking shaft
-
325346518 HingeHinge
-
335446102 Locking plateLocking plate
-
3440888 Screw 4,2x19Screw 4,2x19
-
3540887 Screw 4,2x9,5Screw 4,2x9,5
-
3628019 PlugPlug
-
375144963 Seat housingSeat housing
-
385345195 Locking deviceLocking device
-
3936489 RivetRivet
-
405346728 Spring plateSpring plate
-
415346727 Seat beltSeat belt
-
42548824 Belt LugBelt Lug
-
43548834 Spring for beltSpring for belt
-
445441849 Stopper HookStopper Hook
-
455346204 Support SpringSupport Spring
-
4628040 GrommetGrommet
-
47414644300 DartDart
-
4828232 PluggPlugg
-
49534727 Snow guardSnow guard
