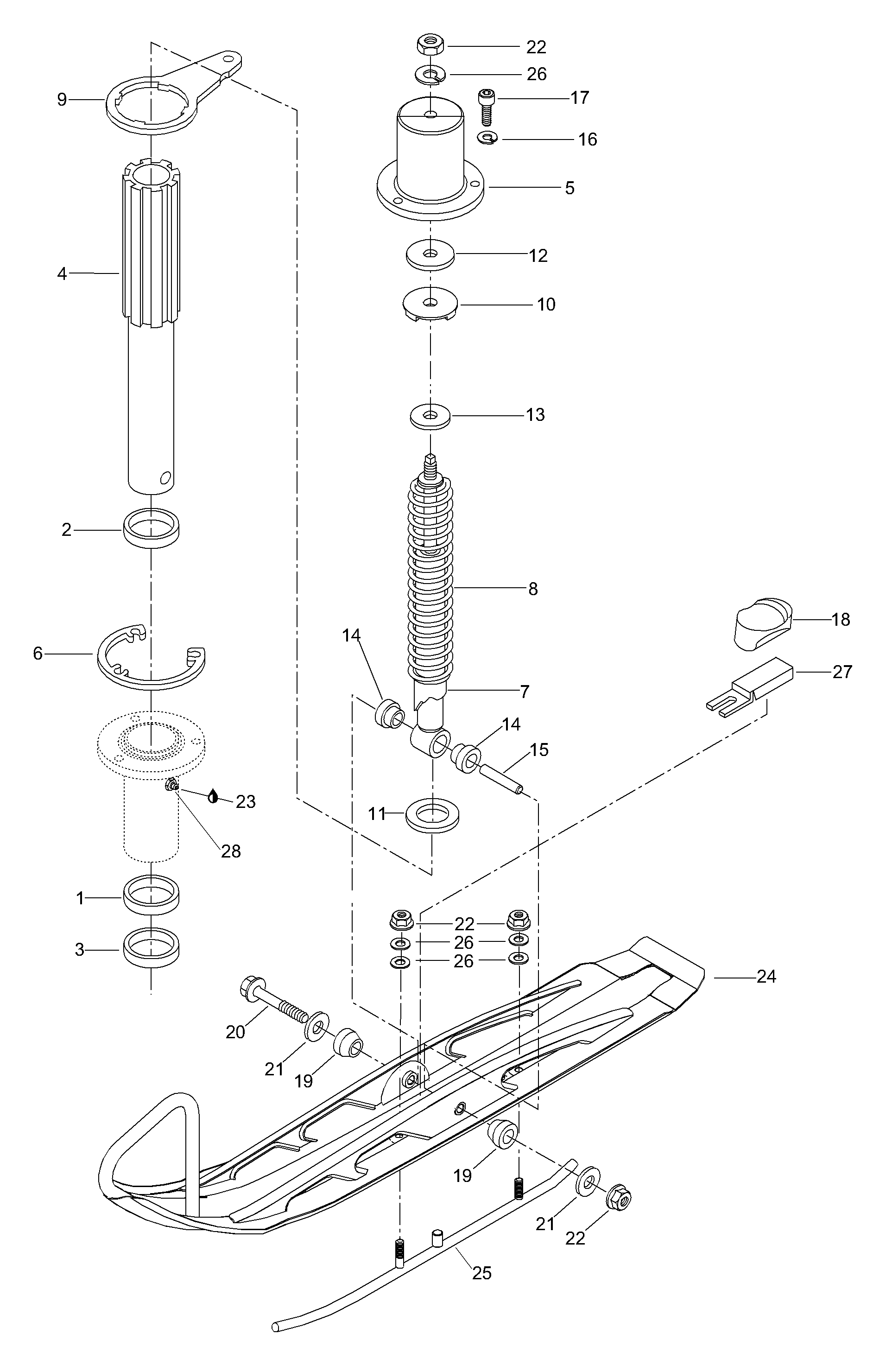

08- Front Suspension для BRP Lynx Forest - 2003
-
№АртикулНазвание
-
1414803200 Bushing, lowerBushing, lower
-
2414803100 Bushing, upperBushing, upper
-
3316373 Oil sealOil seal
-
45243952 SlideSlide
-
55240019 CoverCover
-
6503145600 Spacer plateSpacer plate
-
7414803600 Shock absorberShock absorber
-
85240897 SpringSpring
-
95340383 Reversing armReversing arm
-
10570025800 Damper,rubberDamper,rubber
-
11549493 Bearing plateBearing plate
-
125440399 PlatePlate
-
13549492 Holder plateHolder plate
-
14572034500 SleeveSleeve
-
15549716 SleeveSleeve
-
1620014 Lock washerLock washer
-
1740305 Allen screw M8x20Allen screw M8x20
-
185341750 Damper, skiDamper, ski
-
19547543 RubberRubber
-
2040354 Screw M10x125Screw M10x125
-
2120012 WasherWasher
-
2233012 Nut elastic M10Nut elastic M10
-
23413711500 Lithium grease 400 gLithium grease 400 g
-
245245338 SkiSki
-
255344021 Runner carbideRunner carbide
-
2620005 WasherWasher
-
275445639 Support plateSupport plate
-
2834019 Grease nippleGrease nipple
