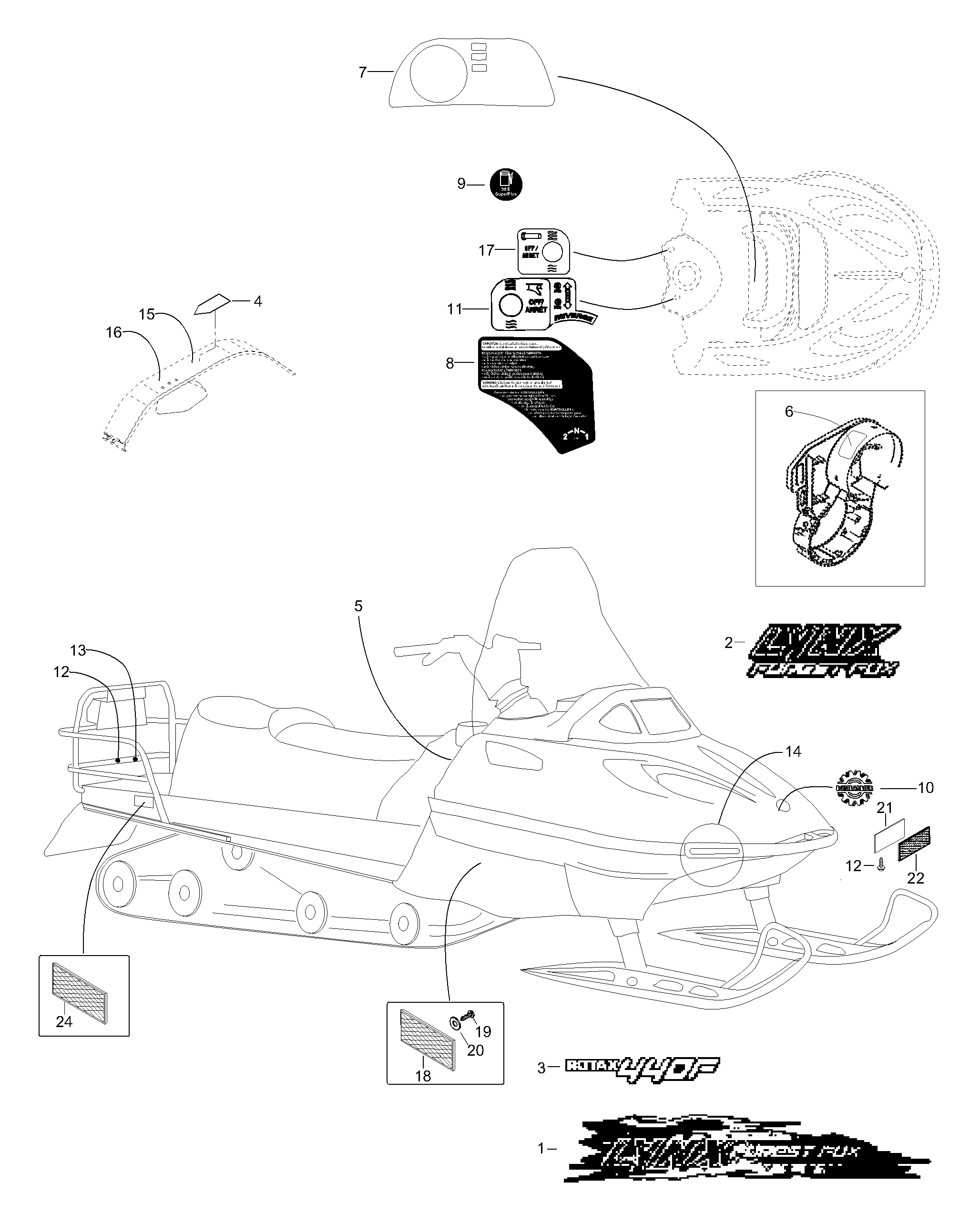

09- Decals для BRP Lynx Forest - 2003
-
№АртикулНазвание
-
1605348460 Hood side decal R.H.Hood side decal R.H.
-
1605348461 Hood side decal L.H.Hood side decal L.H.
-
2605348464 Front decal, hoodFront decal, hood
-
3605348465 Label, ROTAX 443Label, ROTAX 443
-
45447014 Belt Quart DecalBelt Quart Decal
-
55447012 Label, oil checkLabel, oil check
-
65447016 Fan Belt DecalFan Belt Decal
-
75346239 Dash decalDash decal
-
85346801 Dash decalDash decal
-
95447019 Fuel decalFuel decal
-
10516000983 >logo>logo
-
11516000262 Heat thump decalHeat thump decal
-
125447930 Instruction decalInstruction decal
-
13605448799 Instruction decalInstruction decal
-
14418001009 Bumper decal reflectorBumper decal reflector
-
155447124 Instruction decalInstruction decal
-
16605448801 Instruction decalInstruction decal
-
17414898500 Heat grip decalHeat grip decal
-
18414510200 Amber reflectorAmber reflector
-
1940070 Screw M5x10Screw M5x10
-
2020018 WasherWasher
-
215446916 BracketBracket
-
2221118 Reflector, brightReflector, bright
-
2340888 ScrewScrew
-
2421121 Yellow reflectorYellow reflector
