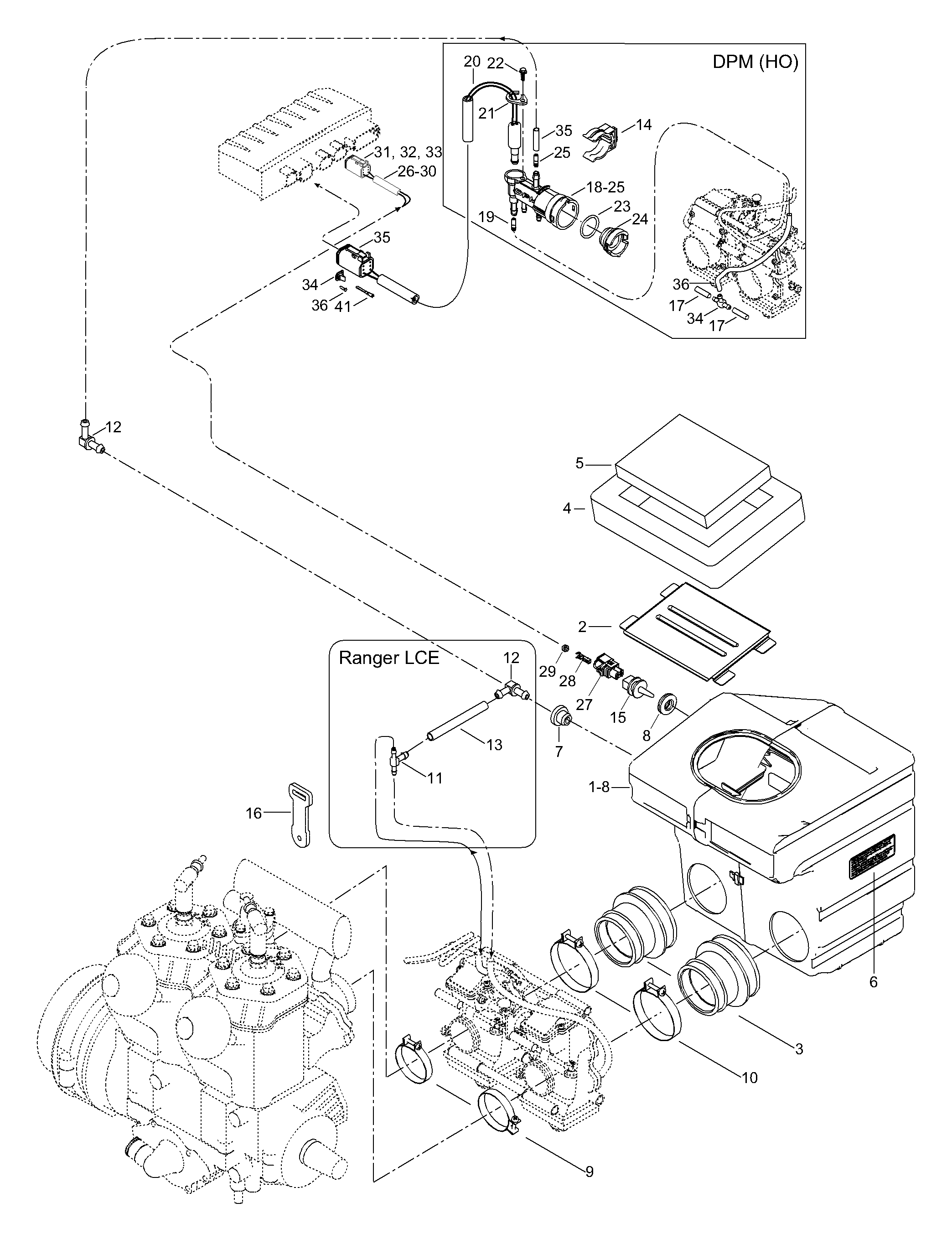

01- Air Silencer для BRP Lynx Ranger Mountain - 2003
-
№АртикулНазвание
-
1415128452 Air intake assy. Includes items 1 thru 8Air intake assy. Includes items 1 thru 8
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9512059305 ClampClamp
-
1027046 ClampClamp
-
12414580600 ConnectorConnector
-
1339038 Hose 6.5/9.5Hose 6.5/9.5
-
14512058919 SupportSupport
-
15270600000 Air temperature sensorAir temperature sensor
-
1739004 HoseHose
-
18512059633 Pressure manifold assy. Includes items 18 thru 25Pressure manifold assy. Includes items 18 thru 25
-
19404161825 Starter jetStarter jet
-
20515175701 Harness assyHarness assy
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Screw K40x10Screw K40x10
-
23293300042 O-ringO-ring
-
24270600009 CapCap
-
25404161819 Starter jetStarter jet
-
26515175703 Wire harness. Includes items 26 thru 30Wire harness. Includes items 26 thru 30
-
27515175588 Connector housingConnector housing
-
28278000998 Female terminalFemale terminal
-
29278000999 SealSeal
-
30515175332 TubingTubing
-
31515175706 Female LockFemale Lock
-
32278000632 Female terminalFemale terminal
-
33515175670 Connector housingConnector housing
-
34414729300 T-fittingT-fitting
-
35512059651 HoseHose
-
36512059524 HoseHose
