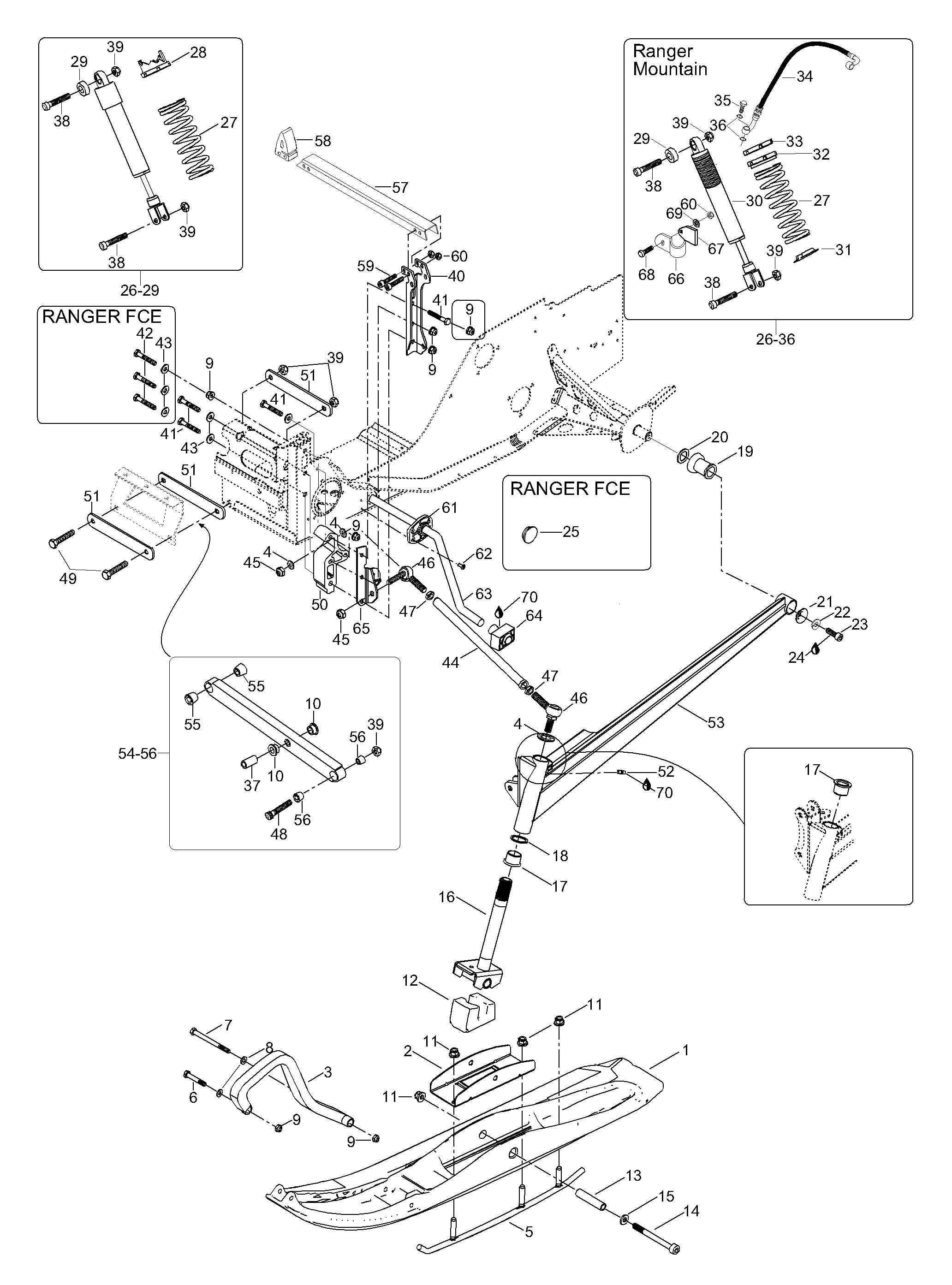

08- Front Suspension для BRP Lynx Ranger Mountain - 2003
-
№АртикулНазвание
-
1505071046 R.H. Ski linerR.H. Ski liner
-
1505071047 L.H. Ski linerL.H. Ski liner
-
2505070745 BridgeBridge
-
3505070963 Plastic handlePlastic handle
-
420074 Lock washerLock washer
-
5605348959 Runner carbideRunner carbide
-
640009 Screw M8x50Screw M8x50
-
740869 Screw M8x100Screw M8x100
-
820004 WasherWasher
-
933201 Elastic flanged nut M8Elastic flanged nut M8
-
1031088 BearingBearing
-
1133074 Elastic flange nut M10Elastic flange nut M10
-
12506151233 Stopper-skiStopper-ski
-
13506133300 SpacerSpacer
-
1440394 Allens crew M10x120Allens crew M10x120
-
15503183300 Washer, hardenedWasher, hardened
-
16605248383 Ski legSki leg
-
17505070003 BushingBushing
-
18505070004 WasherWasher
-
19570062200 DamperDamper
-
20503146700 WasherWasher
-
21506079600 CupCup
-
2220014 Spring washerSpring washer
-
2340289 Allen screw M8x25Allen screw M8x25
-
24293800060 Loctite 243, 10mlLoctite 243, 10ml
-
26605348898 Shock assy. Includes items 26 thru 36Shock assy. Includes items 26 thru 36
-
2725050 SpringSpring
-
29230055 Rubber bushingRubber bushing
-
3023172 ShockShock
-
31230076 Guide springGuide spring
-
32230054 Guide springGuide spring
-
33230053 Adjusting ringAdjusting ring
-
34230062 HoseHose
-
35415093810 ScrewScrew
-
36415038700 O-ringO-ring
-
375441433 BushingBushing
-
3840837 Allen screw M10x55Allen screw M10x55
-
3933012 Nut elastic M10Nut elastic M10
-
405246395 Shock bracketShock bracket
-
405245488 Shock bracketShock bracket
-
4140010 Screw M8x55Screw M8x55
-
4320104 Washer, hardenedWasher, hardened
-
44605348813 Upper armUpper arm
-
4533087 Jam nut elastic M12Jam nut elastic M12
-
4631092 Ball jointBall joint
-
4733048 Jam nut M12Jam nut M12
-
4840136 Allen screw M10x50Allen screw M10x50
-
4940814 Screw M10x110Screw M10x110
-
515346112 Support plateSupport plate
-
5234011 Grease fittingGrease fitting
-
53605248963 L.H. swing arm, redL.H. swing arm, red
-
53605248964 R.H. swing arm, redR.H. swing arm, red
-
54605248972 Lower arm, punainen. Includes items 54 thru 56Lower arm, punainen. Includes items 54 thru 56
-
555447769 Inner sleeveInner sleeve
-
565447770 Outer sleeveOuter sleeve
-
575348107 BracketBracket
-
585348087 RubberRubber
-
5940345 Allen screw M6x40Allen screw M6x40
-
6033010 Nut elastic M6Nut elastic M6
-
61505070191 SleeveSleeve
-
6236009 RivetRivet
-
63505070774 Sway barSway bar
-
64505070117 Block-joint ballBlock-joint ball
-
655348063 R.H. Upper arm bracketR.H. Upper arm bracket
-
655348064 L.H. Upper arm bracketL.H. Upper arm bracket
-
665446702 BracketBracket
-
675448228 Support plateSupport plate
-
6840846 Locking screwLocking screw
-
6920009 WasherWasher
-
70413711500 Synthetic greaseSynthetic grease
