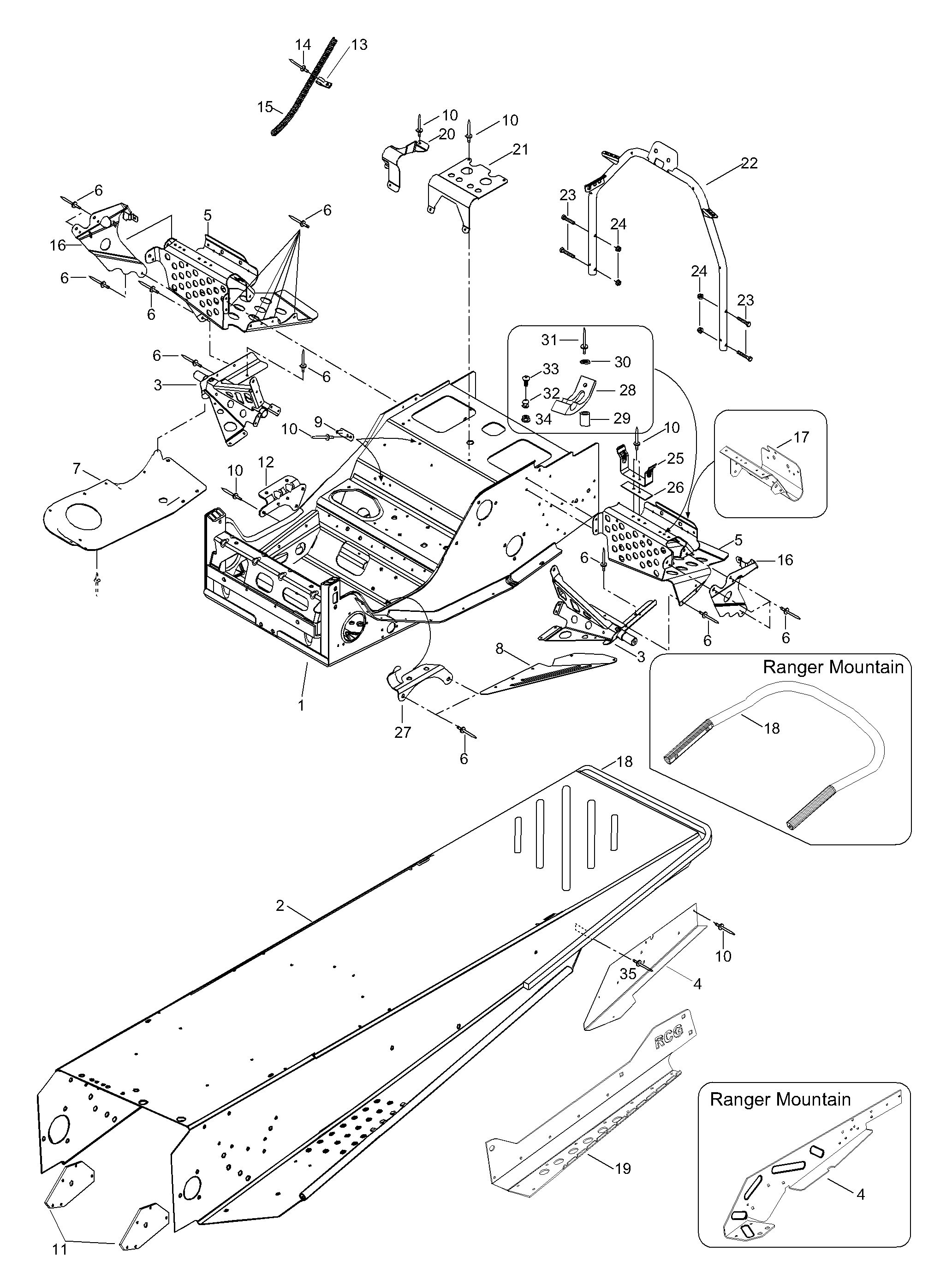

09- Frame для BRP Lynx Ranger Mountain - 2003
-
№АртикулНазвание
-
15148231 Frame assy. Includes items 1 thru 19Frame assy. Includes items 1 thru 19
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
45348324 R.H. bracketR.H. bracket
-
45348323 L.H. bracketL.H. bracket
-
5605149136 R.H. front footrestR.H. front footrest
-
5605149137 L.H. front footrestL.H. front footrest
-
636083 RivetRivet
-
7518322636 R.H. bottom pan plateR.H. bottom pan plate
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
12518322635 Muffler supportMuffler support
-
1327092 ClipClip
-
1436036 RivetRivet
-
15518321569 Rope guideRope guide
-
16605149138 R.H. end plateR.H. end plate
-
16605149139 L.H. end plateL.H. end plate
-
175146917 R.H. toe holdR.H. toe hold
-
175146918 L.H. toe holdL.H. toe hold
-
185248322 Bumper rearBumper rear
-
195248327 R.H. holed corner plateR.H. holed corner plate
-
195248326 L.H. holed corner plateL.H. holed corner plate
-
20518322699 Hose supportHose support
-
21518310400 Air intake supportAir intake support
-
225247856 Handle steering supp.Handle steering supp.
-
2340002 Screw M6x40Screw M6x40
-
2433200 Nut M6Nut M6
-
25518202100 Pulley guard bracketPulley guard bracket
-
26518207500 ReinforcementReinforcement
-
27515175254 Cable supportCable support
-
28531955 LatchLatch
-
29543417 SleeveSleeve
-
30543392 WasherWasher
-
3136072 RivetRivet
-
32605449087 Counter rollCounter roll
-
3340168 Screw M4x25Screw M4x25
-
3433008 Nut M4Nut M4
