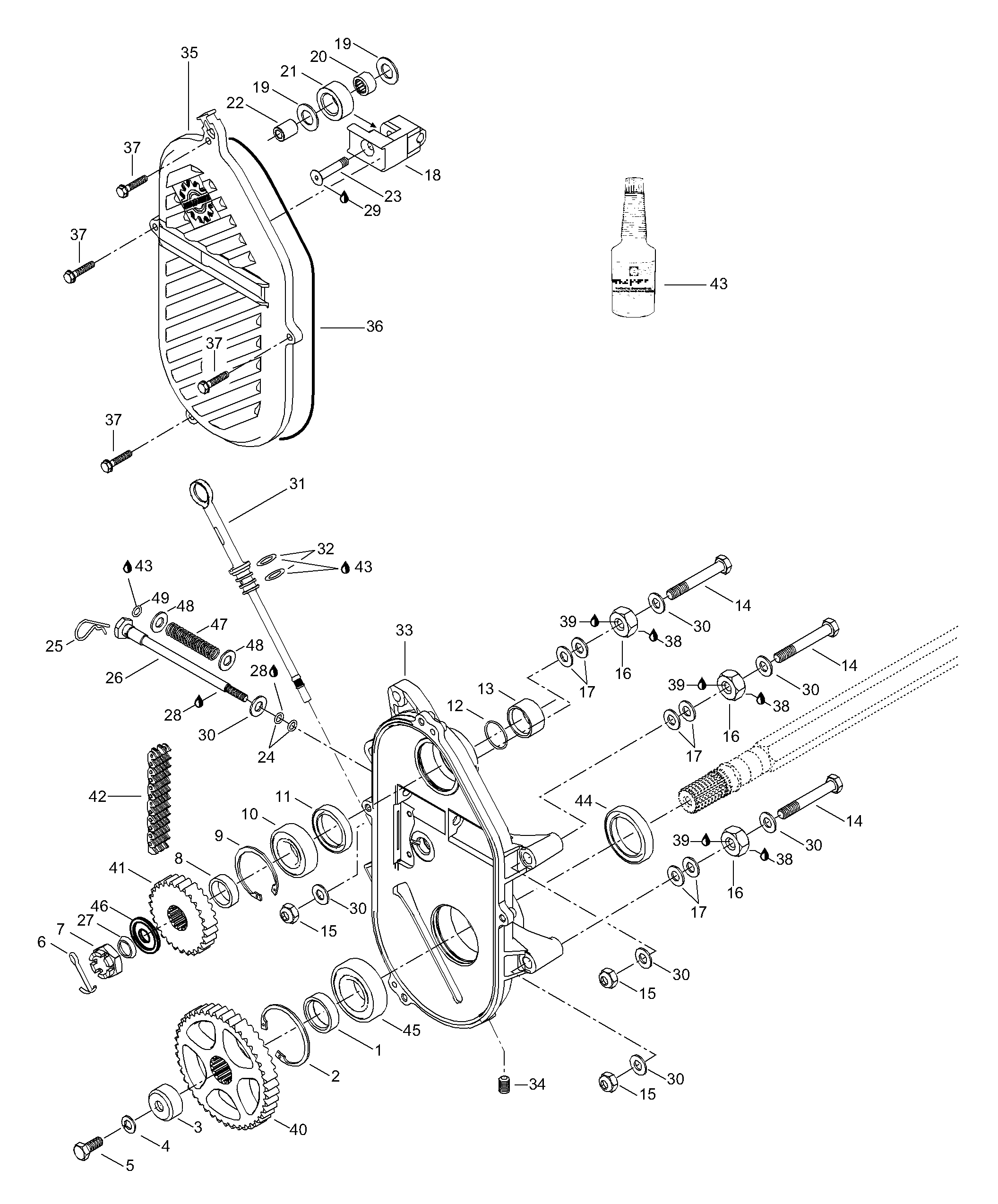

05- Chaincase для BRP Lynx Ranger Mountain - 2003
-
№АртикулНазвание
-
1504152058 SpacerSpacer
-
2415064300 CirclipCirclip
-
3504152104 CapCap
-
420068 WasherWasher
-
540040 Screw M10x25Screw M10x25
-
641003 Cotter pinCotter pin
-
7732610012 Castalled nut M20Castalled nut M20
-
8504147200 ShimShim
-
9371901700 CirclipCirclip
-
10504152006 BearingBearing
-
11415049300 SealSeal
-
12414876700 O-ringO-ring
-
13507031500 SpacerSpacer
-
1440190 Screw M10x80Screw M10x80
-
1533012 Nut elastic M10Nut elastic M10
-
16504083800 SpacerSpacer
-
17504073700 WasherWasher
-
18504151940 TensionerTensioner
-
19504080300 WasherWasher
-
20405403000 Needle bearingNeedle bearing
-
21414531300 RollerRoller
-
22504080200 SpacerSpacer
-
23732601144 ScrewScrew
-
25414575600 PinPin
-
26504151946 Tension adjuster screwTension adjuster screw
-
28413711500 GreaseGrease
-
29293800005 Loctite 271/10 mlLoctite 271/10 ml
-
3020005 WasherWasher
-
30503189148 Washer, hardenedWasher, hardened
-
31504151703 Filler cap assyFiller cap assy
-
32414969400 O-ringO-ring
-
33504152062 ChaincaseChaincase
-
34504151921 PlugPlug
-
35504152027 CoverCover
-
36415046400 O-ringO-ring
-
3740340 Self tapping screwSelf tapping screw
-
38293800023 Loctite 767Loctite 767
-
39293800060 Loctite 243\10 mlLoctite 243\10 ml
-
40504148500 Sprocket Z=43Sprocket Z=43
-
41504085400 Sprocket Z=23Sprocket Z=23
-
42504151857 Chain driving, 13/74Chain driving, 13/74
-
43320007 Synthetic chaincase oilSynthetic chaincase oil
-
44504151918 SealSeal
-
45504152005 BearingBearing
-
47504151945 SpringSpring
-
48503125900 Washer, hardenedWasher, hardened
-
49504151954 O-ringO-ring
