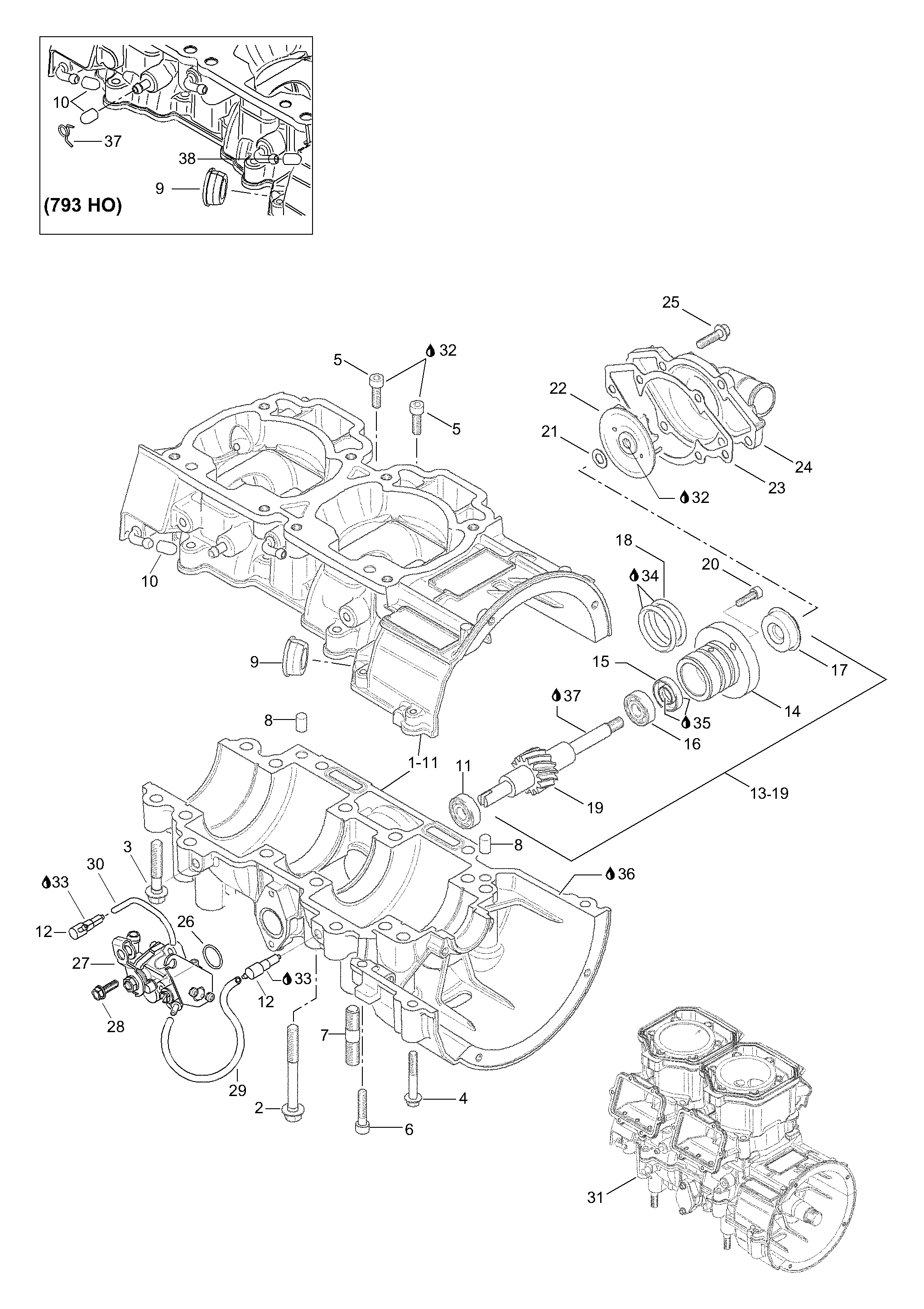

05- Crankcase для BRP Lynx Ranger Mountain - 2003
-
№АртикулНазвание
-
1420889681 Crankcase assy. Includes items 1 thru 12Crankcase assy. Includes items 1 thru 12
-
2420640836 Screw M8x75Screw M8x75
-
3420640431 Screw M8x45Screw M8x45
-
4420640311 Screw M6x45Screw M6x45
-
5420840401 Allen screw M6x22Allen screw M6x22
-
6420840880 Allen screw M6x30Allen screw M6x30
-
7420641834 Stud M10x29Stud M10x29
-
8420632010 PinPin
-
9420860965 Cable grommetCable grommet
-
10420960770 Closure capClosure cap
-
11420232100 Ball bearingBall bearing
-
12420956510 Checkvalve assyCheckvalve assy
-
13420837421 Waterpump/oilpump sha. Includes items 13 thru 19Waterpump/oilpump sha. Includes items 13 thru 19
-
15420230195 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Rotary sealRotary seal
-
18420950890 O-ringO-ring
-
20420840511 Allen screw M5x16Allen screw M5x16
-
21420227945 Thrust washerThrust washer
-
22420222505 ImpellerImpeller
-
23420931810 GasketGasket
-
24420922630 Pump housingPump housing
-
25420240031 Screw M6x25Screw M6x25
-
26420230400 O-ringO-ring
-
27420888770 Oil pump assyOil pump assy
-
28420941925 Screw M5x16Screw M5x16
-
29420660421 Oil line 70 mmOil line 70 mm
-
30420660423 Oil line 115 mm, PTOOil line 115 mm, PTO
-
31300079340 Short block engineShort block engine
-
32293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
34413707000 Molykote 111Molykote 111
-
35420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
36420297906 Sealing compound, 30Sealing compound, 30
-
37420938190 ClampClamp
-
38420960777 Protection capProtection cap
