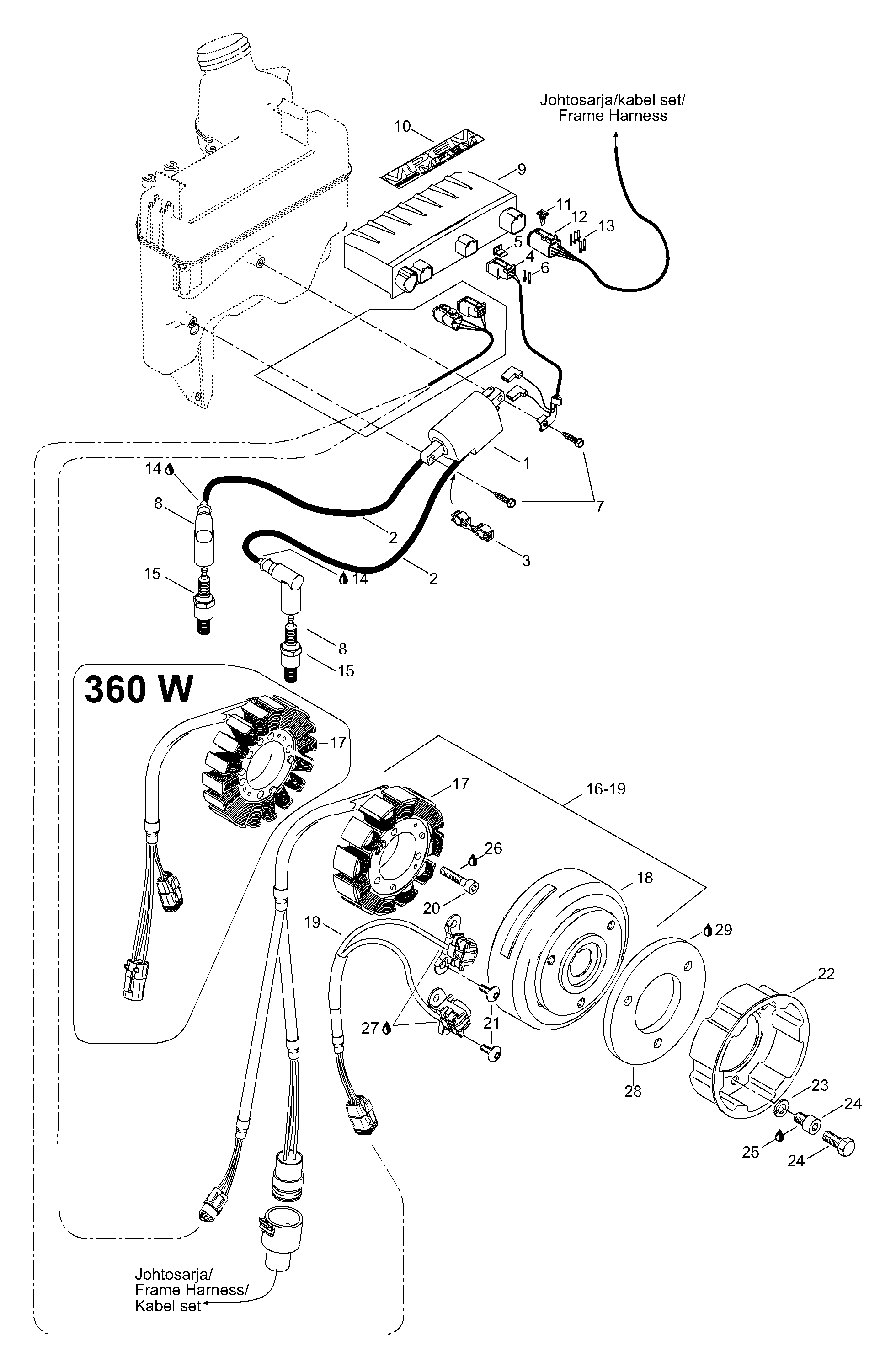

01- DPM для BRP Lynx Ranger Mountain - 2003
-
№АртикулНазвание
-
1512059512 Ignition coil assyIgnition coil assy
-
2512059485 Spark plug wire 380 mmSpark plug wire 380 mm
-
2512059486 Spark plug wire 455 mmSpark plug wire 455 mm
-
3410914600 Plastic clipPlastic clip
-
4409207300 Female terminal housinFemale terminal housin
-
5409207100 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
740375 ScrewScrew
-
8278000237 Spark plug protectorSpark plug protector
-
9512059661 Calibration moduleCalibration module
-
10516000245 Label, MPEMLabel, MPEM
-
11515175705 Female lock (6 circuits)Female lock (6 circuits)
-
12515175673 Female terminal housinFemale terminal housin
-
13278000632 Female terminalFemale terminal
-
14293550004 140gDielectric grease, 140g140gDielectric grease, 140g
-
15512059533 Spark plug BR9ECSSpark plug BR9ECS
-
16420888236 Magneto 12V/360W. Includes items 16 thru 19Magneto 12V/360W. Includes items 16 thru 19
-
17420888617 Stator assyStator assy
-
18420888628 Magneto flywheelMagneto flywheel
-
19420966803 Pick up assyPick up assy
-
20420840880 Allen screw M6x30Allen screw M6x30
-
21420640321 Taptite screw M5x16Taptite screw M5x16
-
22420852532 Starter cupStarter cup
-
2320014 Lock washerLock washer
-
24420940591 Screw M8x20Screw M8x20
-
25420899785 Loctite 221/viol.Loctite 221/viol.
-
26420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
27420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
-
28420866756 FlywheelFlywheel
-
29413711400 Loctite 648, 10 mlLoctite 648, 10 ml
